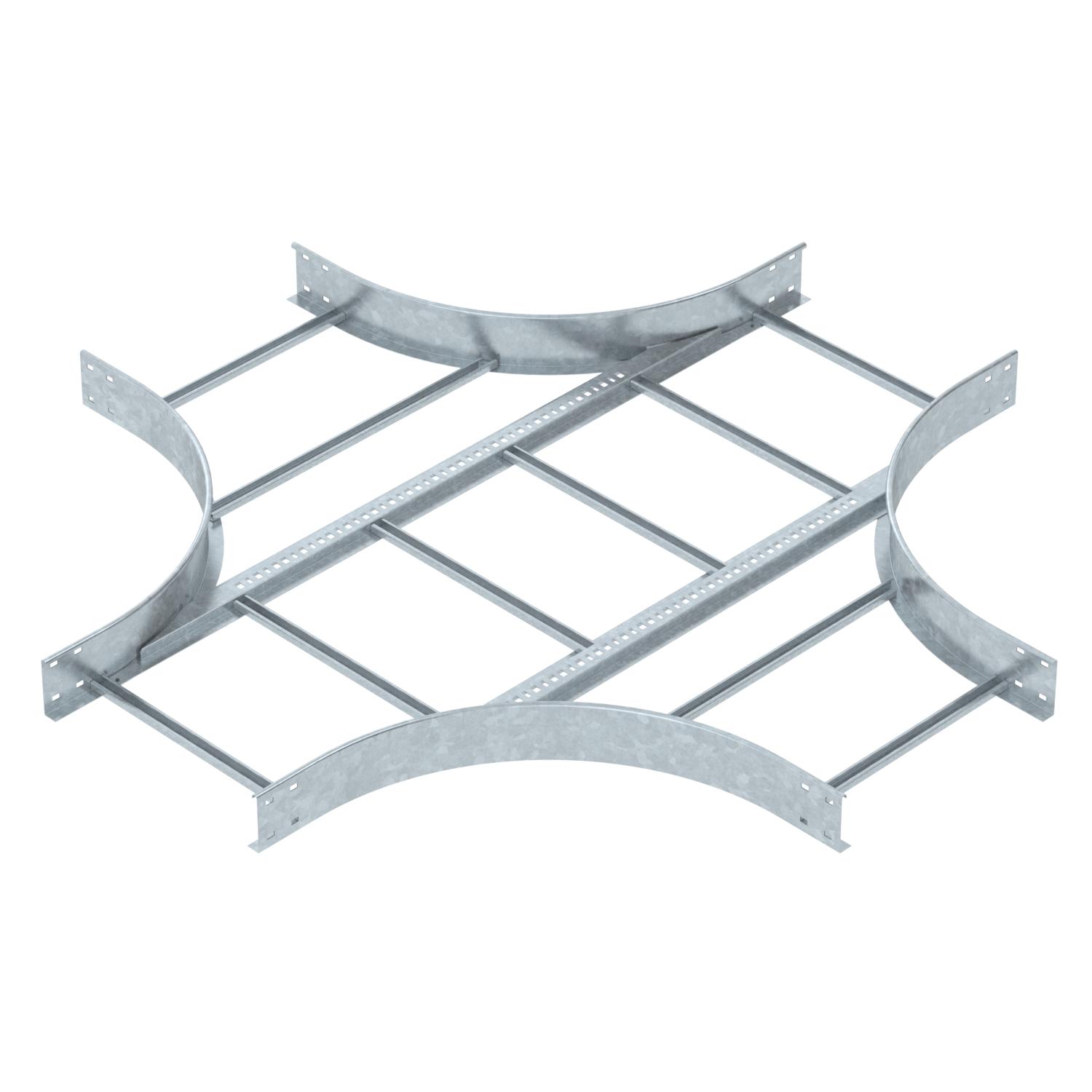

110 FT cross-over

Item no. 6219708 | EAN 4012196685653

Item no. / Types

Width

Rail thickness	1.5 mm

Product description

Product description

Cross-over for the creation of horizontal branches, fitting for cable ladders of side height 110 mm. With connector perforation. Can be used indoors and outdoors. Connector and fastening material must be ordered separately. Fittings must be supported by the support structure.

Technical data

Technical data

Colour	zinc
Dimension	110x500
Maintain electrical functions	no
Material	Steel
Rail thickness	1,5 mm

Rustproof steel, pickled	no
Side rail version	Profile (open)
Surface	Hot-dip galvanised
Version of the rungs	Profile unperforated
Wide-span version	no

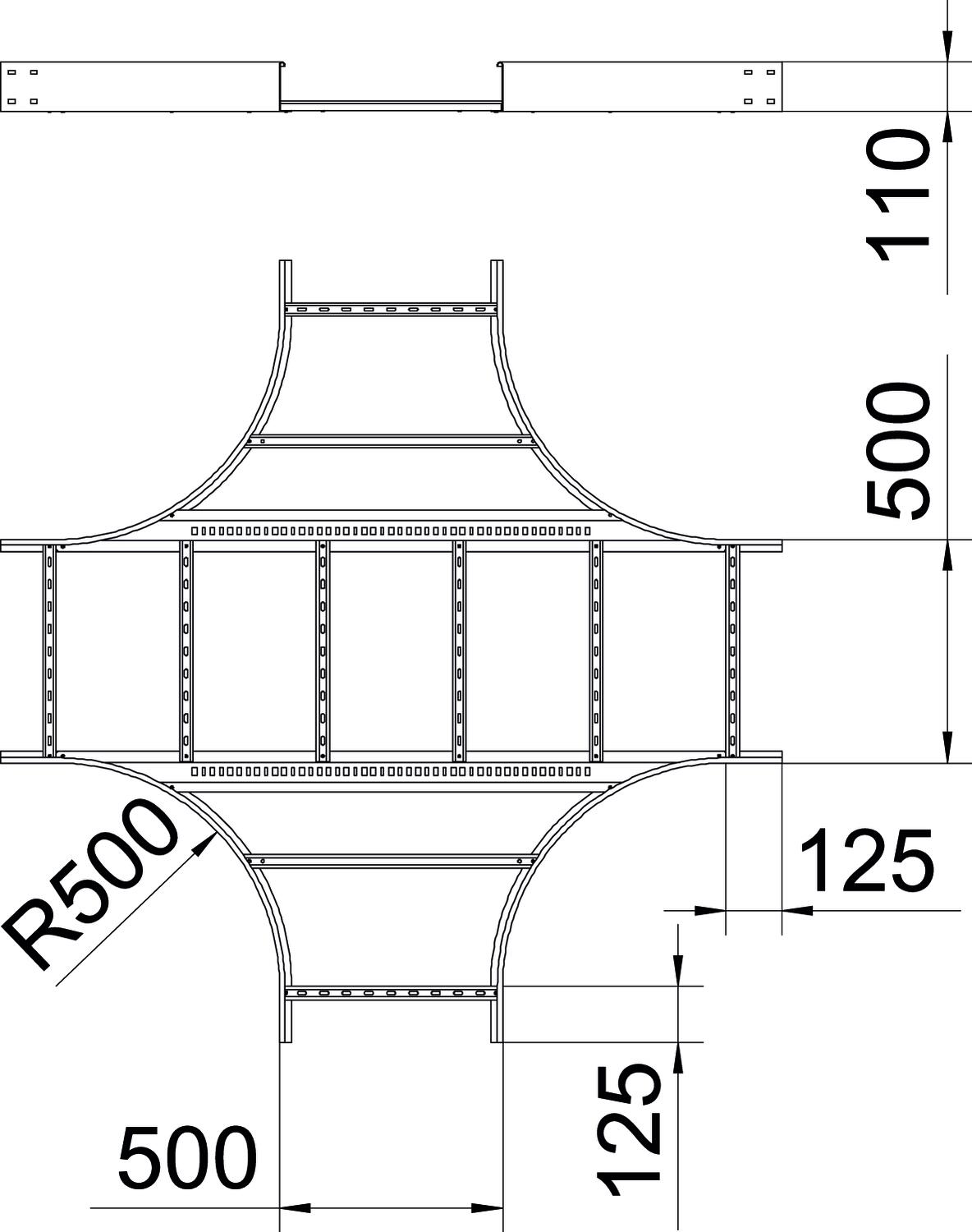

Dimensions

Dimension R	500 mm
Height	110 mm

Width	500 mm

CO2 footprint (Product Carbon Footprint)

CO2 Footprint (GWP) Cradle-to-Gate	42,2135 kg CO2e / 1 Piece
CO₂ Footprint (GWP)	42,2135 kg CO₂e
Declared Unit (LCA)	Units

Declared Unit Quantity (LCA)	1
Determination date of CO2 value	2025-05-27T00:00:00.000+0200

All types

All types

Types	Width	Rail thickness	Item no.	Quantity	SSU
LK 1120 R5 FT	200 mm	1.5 mm	6219702	piece	1 piece
LK 1130 R5 FT	300 mm	1.5 mm	6219704	piece	1 piece
LK 1140 R5 FT	400 mm	1.5 mm	6219706	piece	1 piece
LK 1150 R5 FT	500 mm	1.5 mm	6219708	piece	1 piece
LK 1160 R5 FT	600 mm	1.5 mm	6219710	piece	1 piece
