90° bend 60 FT

Item no. 6211456 | EAN 4012196685059

Item no. / Types

Width

Rail thickness	1.5 mm

Product description

Product description

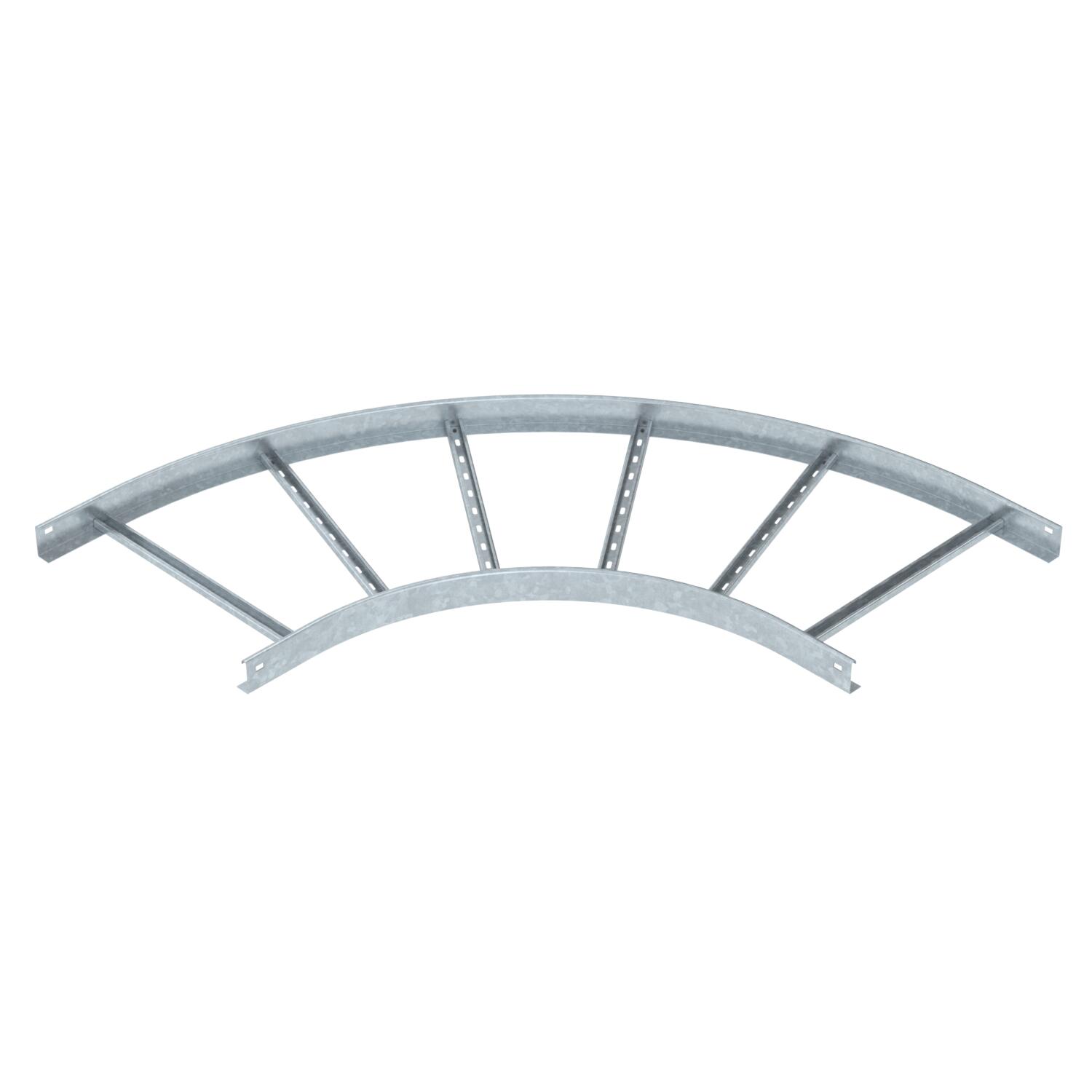

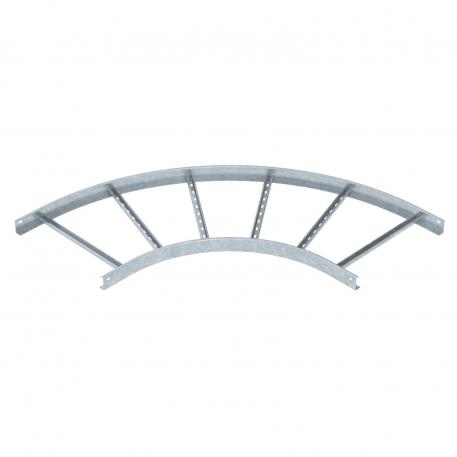

Horizontal 90° bend, fitting for cable ladders, side height 60 mm With connector perforation. Can be used indoors and outdoors. Connector and fastening material must be ordered separately. Fittings must be supported by the support structure.

Technical data

Technical data

Bend (angle)	90°
Change of direction	Horizontal
Colour	zinc
Connector version	Without connectors
Dimension	60x500
Hinged	no
Maintain electrical functions	no
Material	Steel

Rail thickness	1,5 mm
Rustproof steel, pickled	no
Side perforation	no
Side rail version	Flat profile
Surface	Hot-dip galvanised
Version of the rungs	Profile unperforated
Wide-span version	no

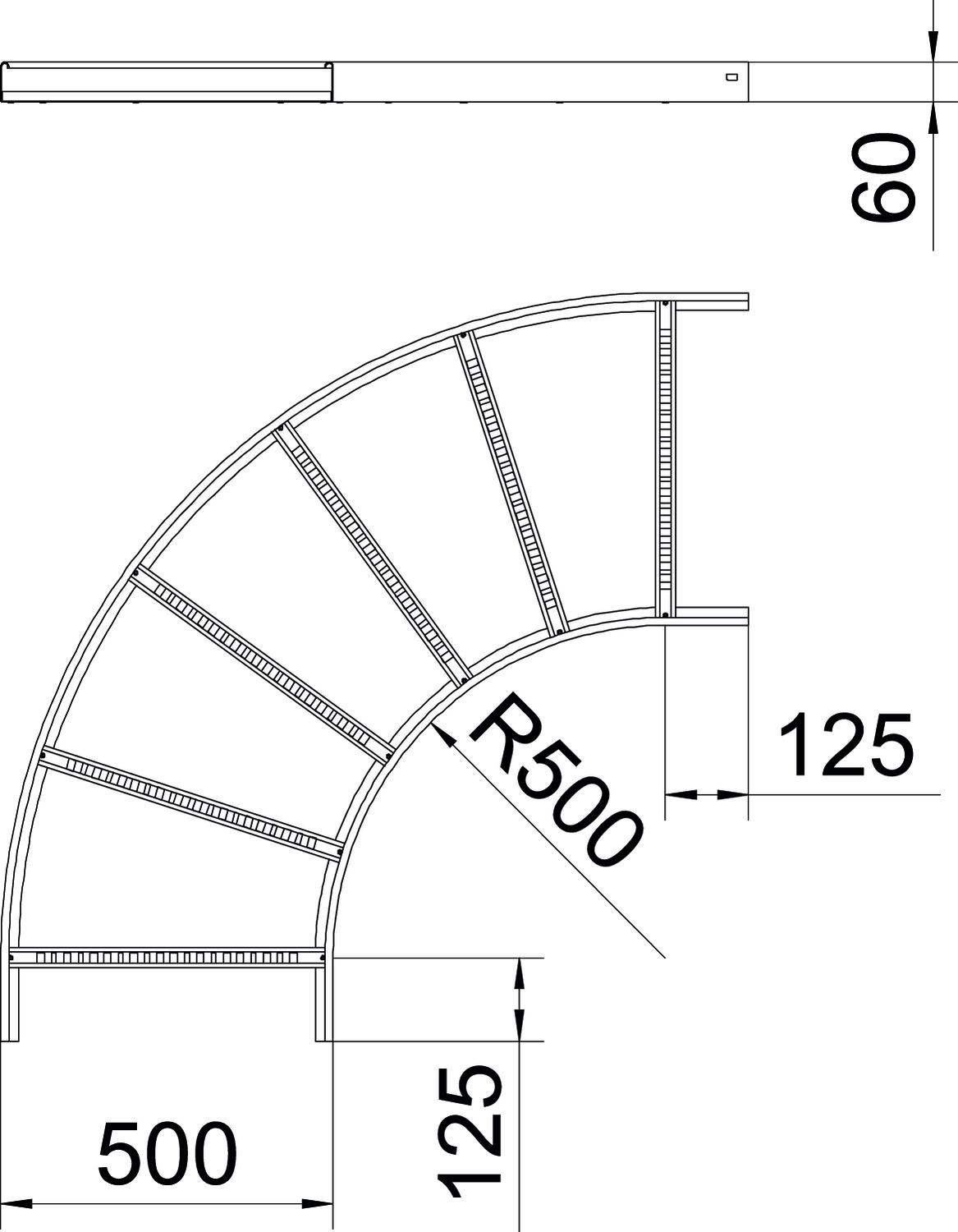

Dimensions

Dimension B	500 mm
Dimension R	500 mm

Height	60 mm
Width	500 mm

CO2 footprint (Product Carbon Footprint)

CO2 Footprint (GWP) Cradle-to-Gate	13,1565 kg CO2e / 1 Piece
CO₂ Footprint (GWP)	13,1565 kg CO₂e
Declared Unit (LCA)	Units

Declared Unit Quantity (LCA)	1
Determination date of CO2 value	2025-05-27T00:00:00.000+0200

All types

All types

Types	Width	Rail thickness	Item no.	Quantity	SSU
LB 90 620 R5 FT	200 mm	1.5 mm	6211450	piece	1 piece
LB 90 630 R5 FT	300 mm	1.5 mm	6211452	piece	1 piece
LB 90 640 R5 FT	400 mm	1.5 mm	6211454	piece	1 piece
LB 90 650 R5 FT	500 mm	1.5 mm	6211456	piece	1 piece
LB 90 660 R5 FT	600 mm	1.5 mm	6211458	piece	1 piece
