Note: This article is discontinued.
You can find the current article here: 6036626 / 90° bend 60 A2

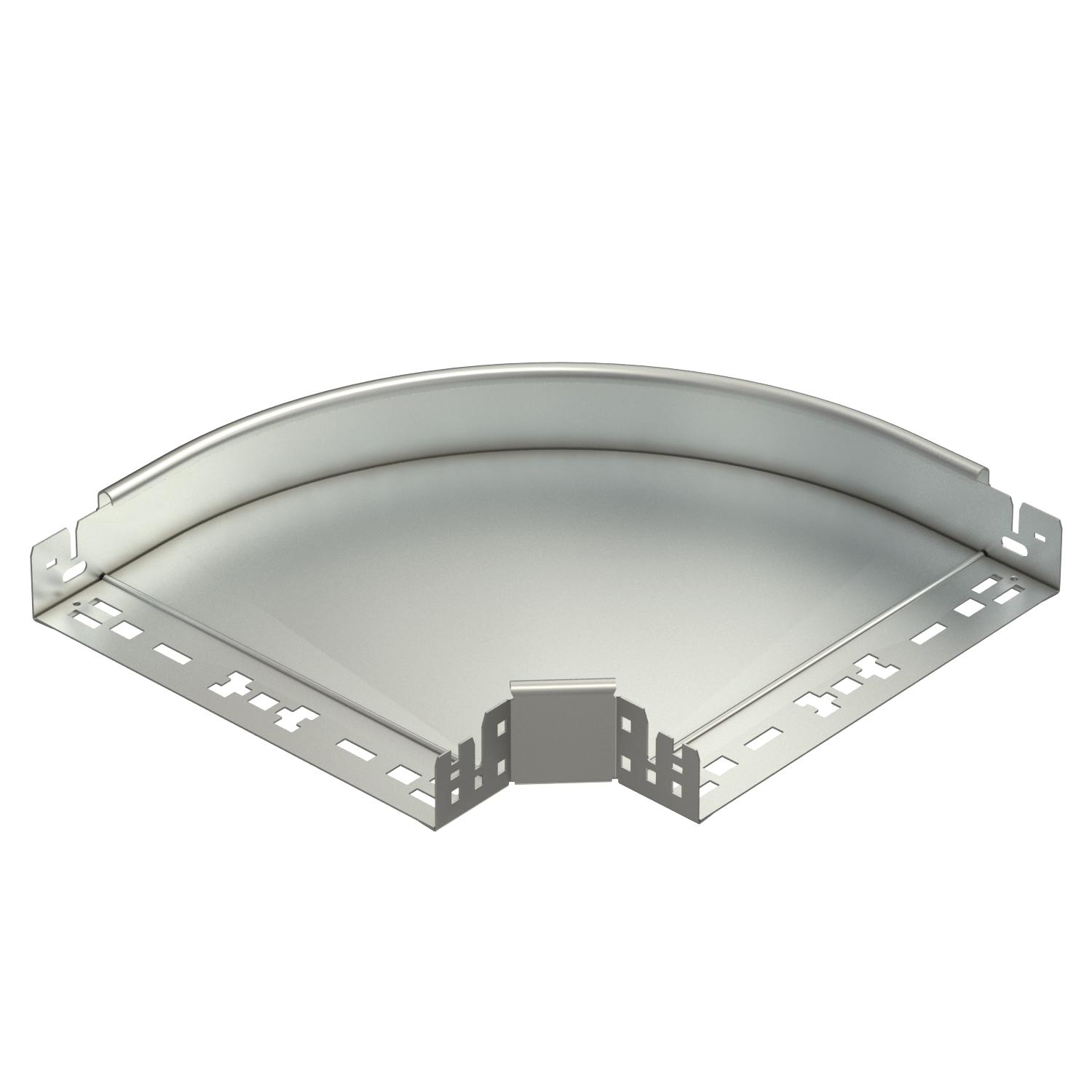

90° Magic bend 60 A2
Item no. 6041186 | EAN 4012195878339
- Product description
-
Product description90° bend with quick connector system. For all cable tray types of 60 mm side height.
-
- Technical data
-
Technical data
Bend (angle) 90° Change of direction Horizontal Colour stainless steel Connector version Integrated connector Dimension 60x300 Dimension B 300 mm Height 60 mm Maintain electrical functions no Material Stainless steel Mounting perforation in base no NATO hole pattern no Plate thickness 1,25 mm Rustproof steel, pickled no Side perforation no Surface Bright, treated Type of connector, cable support system Click fastening Wide-span version no Width 300 mm - All types
-
All types
- Downloads
-
Data sheet RBM 90 630 A2 / 6041186 , 0.19MB , pdfCatalogue Cable support systems , 54.52MB , pdfEU declaration of conformity RBM 90 630 A2 / 6041186 , 0.10MB , pdfREACH Declaration of conformity RBM 90 630 A2 / 6041186 , 0.12MB , pdfRoHS Declaration of conformity RBM 90 630 A2 / 6041186 , 0.12MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
