Add-on tee 110 FT
Item no. 6225958 | EAN 4012196445653
- Product description
-

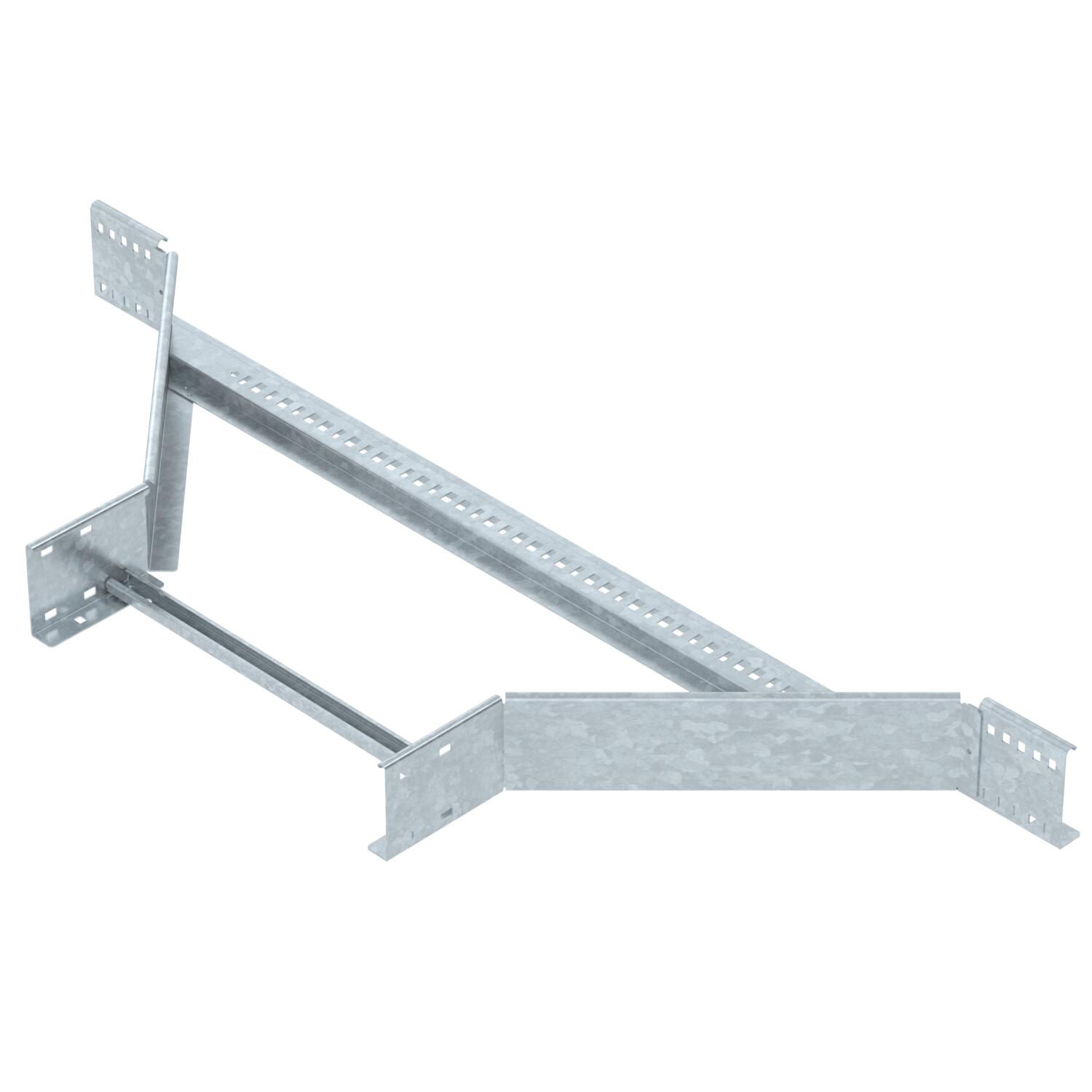

Product descriptionAdd-on tee with welded rung for all cable ladder types of 110 mm side height.
Connectors should be ordered separately and in the appropriate quantity.
-
- Technical data
-
Technical data
Colour zinc Connector version Without connectors Dimension 110x500 Maintain electrical functions no Material Steel Rail thickness 2 mm Rustproof steel, pickled no Side rail version Flat profile Surface Hot-dip galvanised Version of the rungs Profile perforated Wide-span version no Dimensions

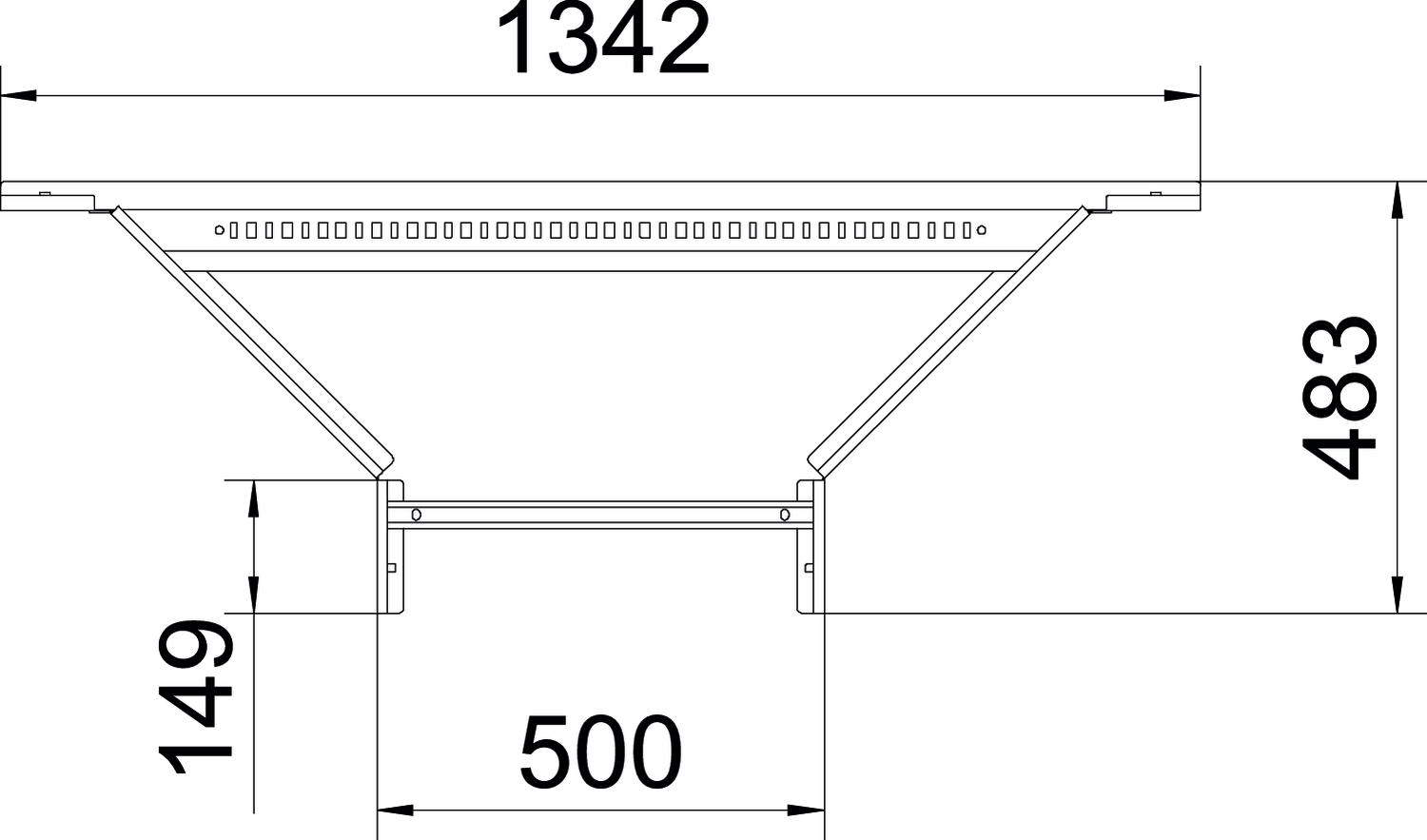

Dimension B 500 mm Dimension R 300 mm Height 110 mm Width 500 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 16,1736 kg CO2e / 1 Piece CO₂ Footprint (GWP) 16,1736 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Straight connector FT
LVG 110 FT 6216548 10 piece - Downloads
-
Data sheet SLAA 1150 R3 FT / 6225958 , 0.20MB , pdfEU declaration of conformity SLAA 1150 R3 FT / 6225958 , 0.10MB , pdfUK Declaration of Conformity SLAA 1150 R3 FT / 6225958 , 0.09MB , pdfREACH Declaration of conformity SLAA 1150 R3 FT / 6225958 , 0.12MB , pdfRoHS Declaration of conformity SLAA 1150 R3 FT / 6225958 , 0.13MB , pdfMounting instructions Cable ladder systems , 6.45MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
