Adjustable connector 200 FT

Item no. 6083210 | EAN 4012196947898

6083210 / GVM 200 FT
194 mm
2.5 mm
zinc
Product description
Product description

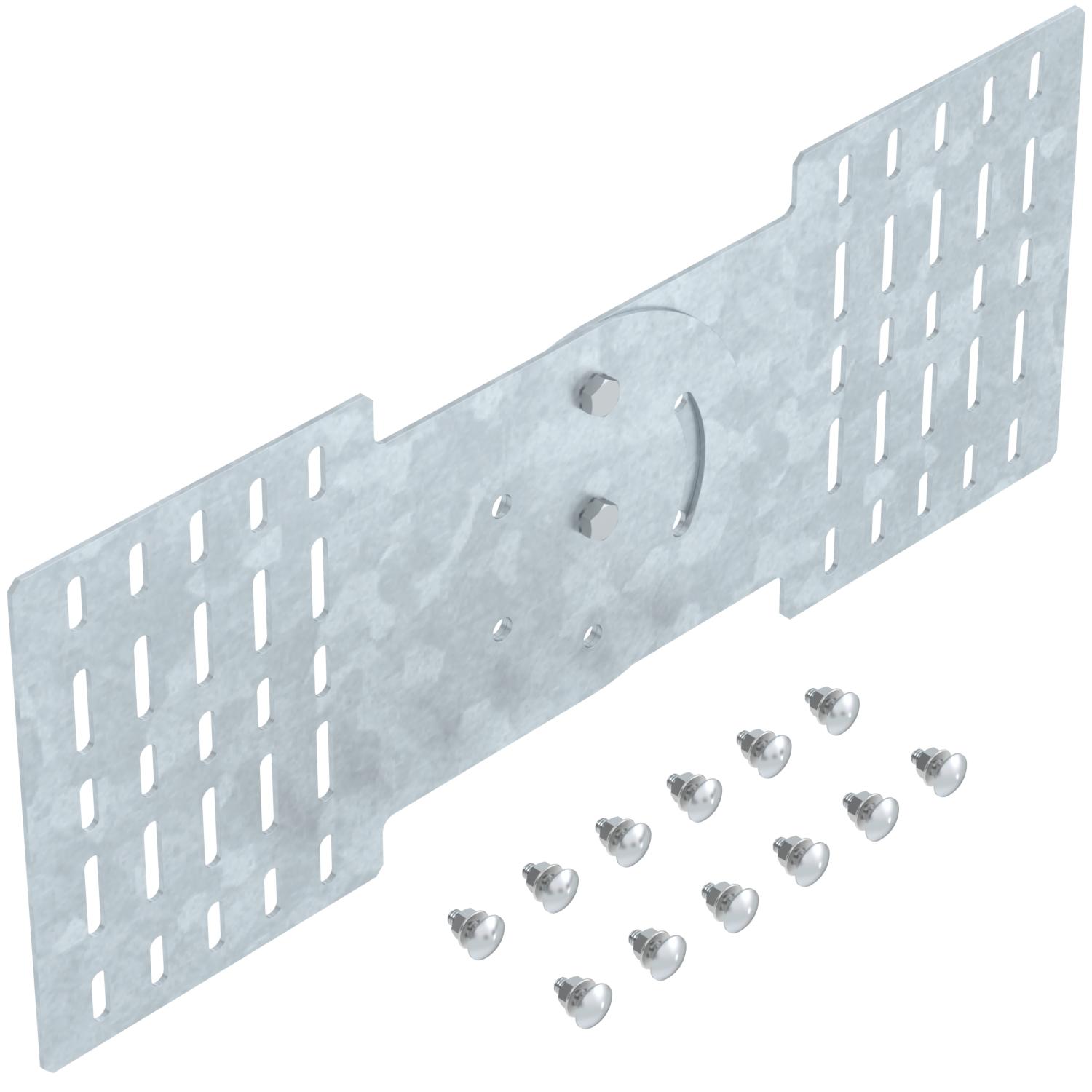

Adjustable connector for vertically rounded connections of cable trays (FT) with a side height of 200 mm.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • CO₂ footprint (PCF)
  • Packaging made entirely from recycled cardboard
Technical data

Technical data

Adjustable connector, horizontal no
Articulated connector, vertical yes
Colour zinc
Connection type Screw connector
Dimension 200x500
Maintain electrical functions no
Material Steel
Plate thickness 2,5 mm
Rustproof steel, pickled no
Suitable for cable ladder no
Suitable for cable tray yes
Suitable for cable tray system height 200 mm
Suitable for mesh cable tray no
Surface Hot-dip galvanised
Version for Straight connector

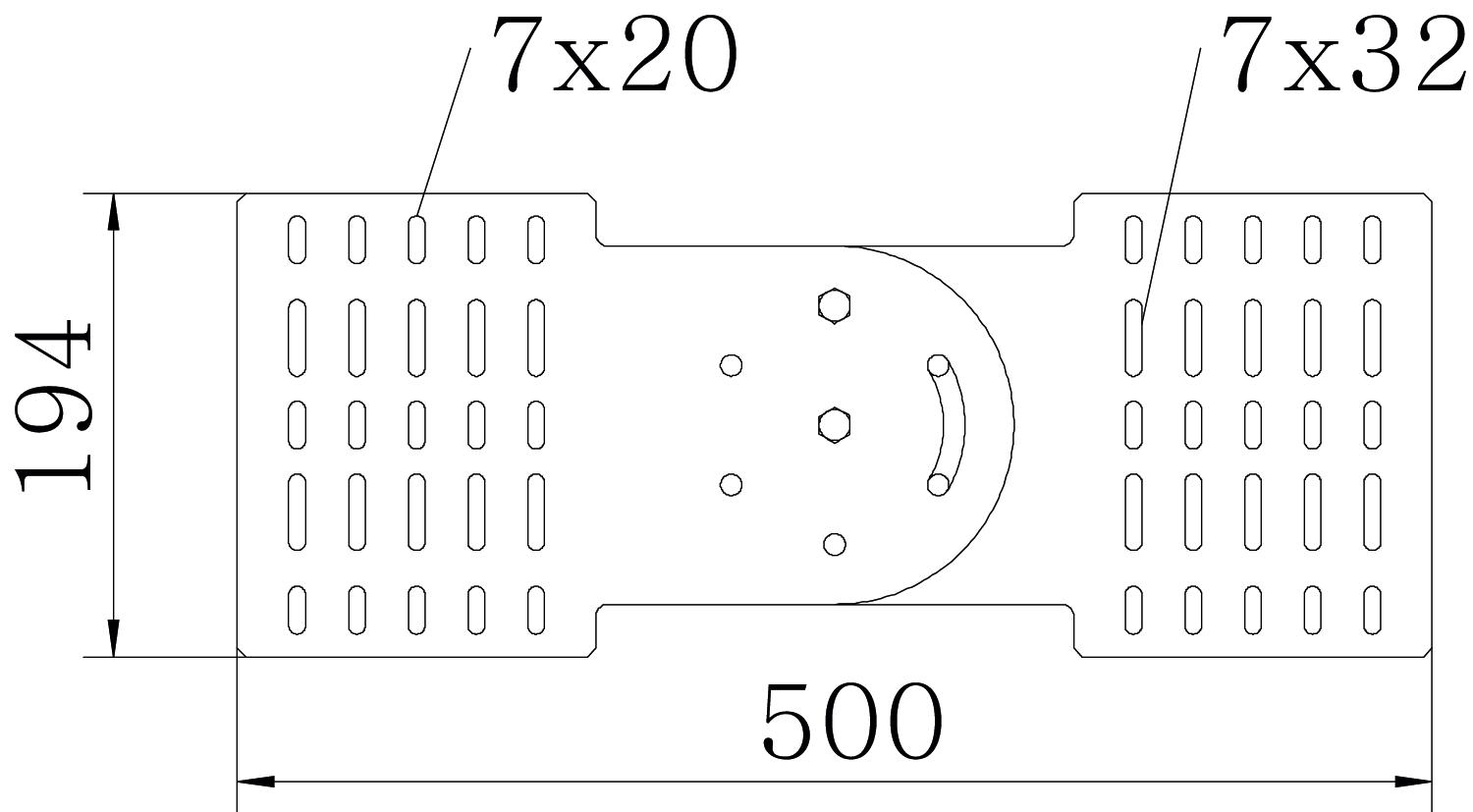

Dimensions

Height 194 mm
Height 8 in
Length 500 mm
Width 16 mm

CO2 footprint (Product Carbon Footprint)

CO2 Footprint (GWP) Cradle-to-Gate 6,731 kg CO2e / 1 Piece
CO₂ Footprint (GWP) 6,731 kg CO₂e
Declared Unit (LCA) Units
Declared Unit Quantity (LCA) 1
Determination date of CO2 value 2025-05-14T00:00:00.000+0200
All types

All types

Types Height Plate thickness Colour Item no. Quantity SSU
GVM 200 FT 194 mm 2.5 mm zinc 6083210
2 piece
