Articulated connector 60 FT SOMY
Item no. 7189251 | EAN 4012195313120
- Product description
-

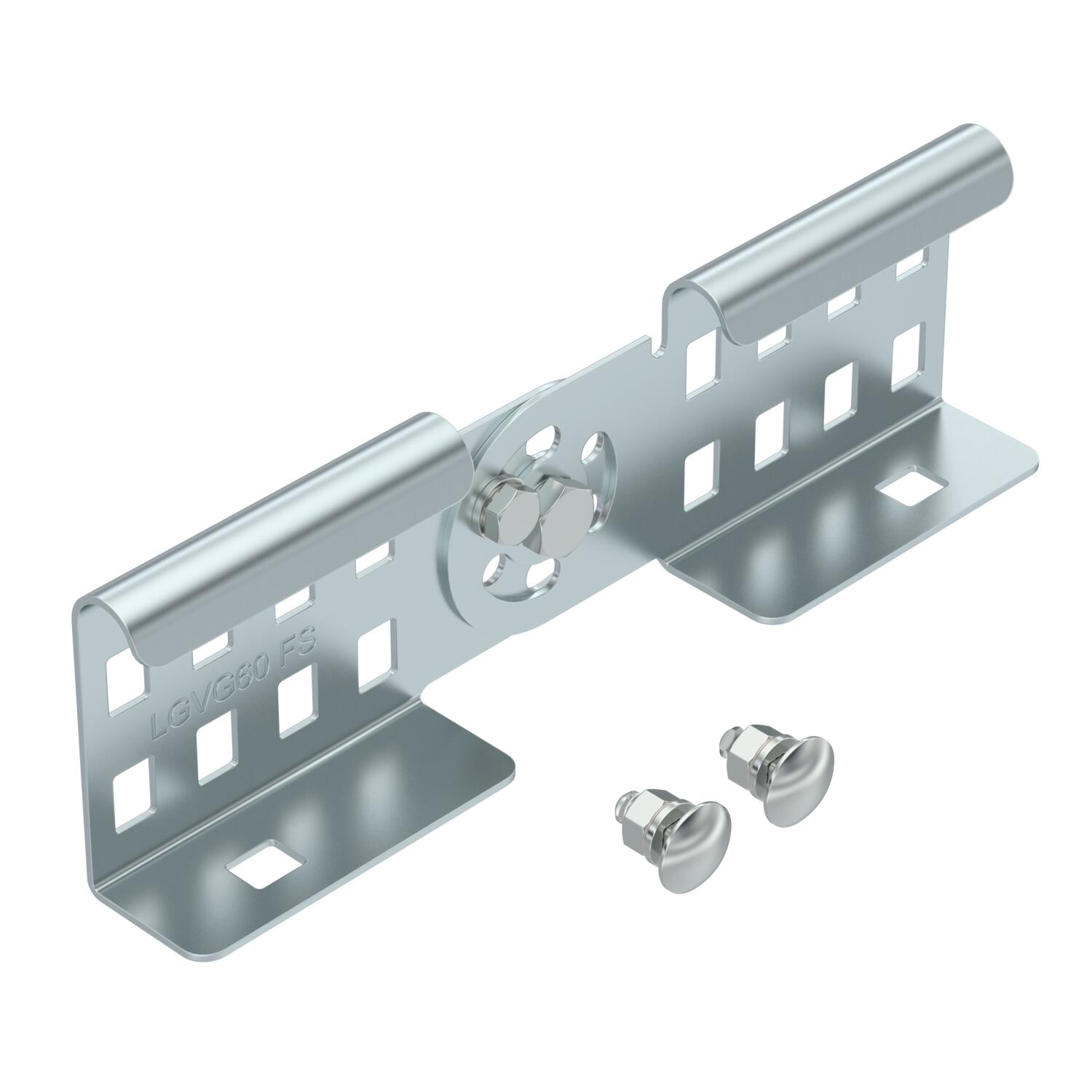

Product descriptionAdjustable connector as external connector to join cable ladders and fittings with a side height of 60 mm and continuous rail perforation. Angle can be adjusted vertically.
The adjustable connector ensures the continuity of the equipotential bonding.
-
- Technical data
-
Technical data
Adjustable connector, horizontal no Articulated connector, vertical yes Colour zinc Connection type Screw connector Dimension 64x210 Dimension 64x210 Material Steel Plate thickness 1,5 mm Rustproof steel, pickled no Suitable for cable ladder yes Suitable for cable tray no Suitable for cable tray system height 60 mm Suitable for mesh cable tray no Surface Hot-dip galvanised 85 µm Version for Straight and angle connector Dimensions

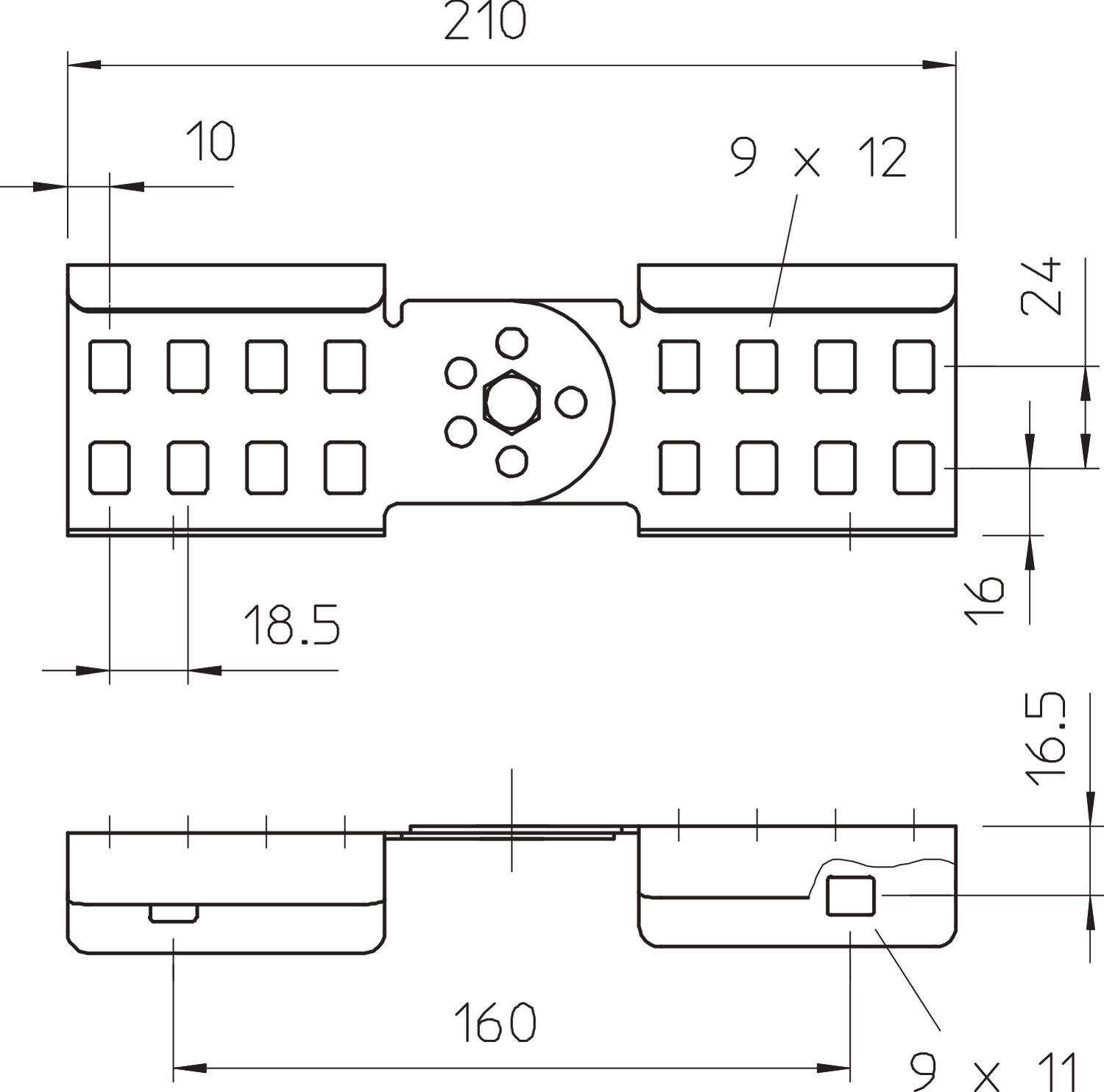

Height 64 mm Length 210 mm Width 28 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 1,0511 kg CO2e / 1 Piece CO₂ Footprint (GWP) 1,0511 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-21T00:00:00.000+0200 - All types
- Downloads
-
Data sheet LGVG 60 FT SO / 7189251 , 0.22MB , pdfCatalogue Cable support systems , 2.10MB , pdfEU declaration of conformity LGVG 60 FT SO / 7189251 , 0.10MB , pdfUK Declaration of Conformity LGVG 60 FT SO / 7189251 , 0.09MB , pdfREACH Declaration of conformity LGVG 60 FT SO / 7189251 , 0.12MB , pdfRoHS Declaration of conformity LGVG 60 FT SO / 7189251 , 0.13MB , pdfMounting instructions Cable ladder systems , 6.45MB , pdfMounting instructions General information on the mounting , 2.65MB , pdfNo invitation to tender text is available for this product.
