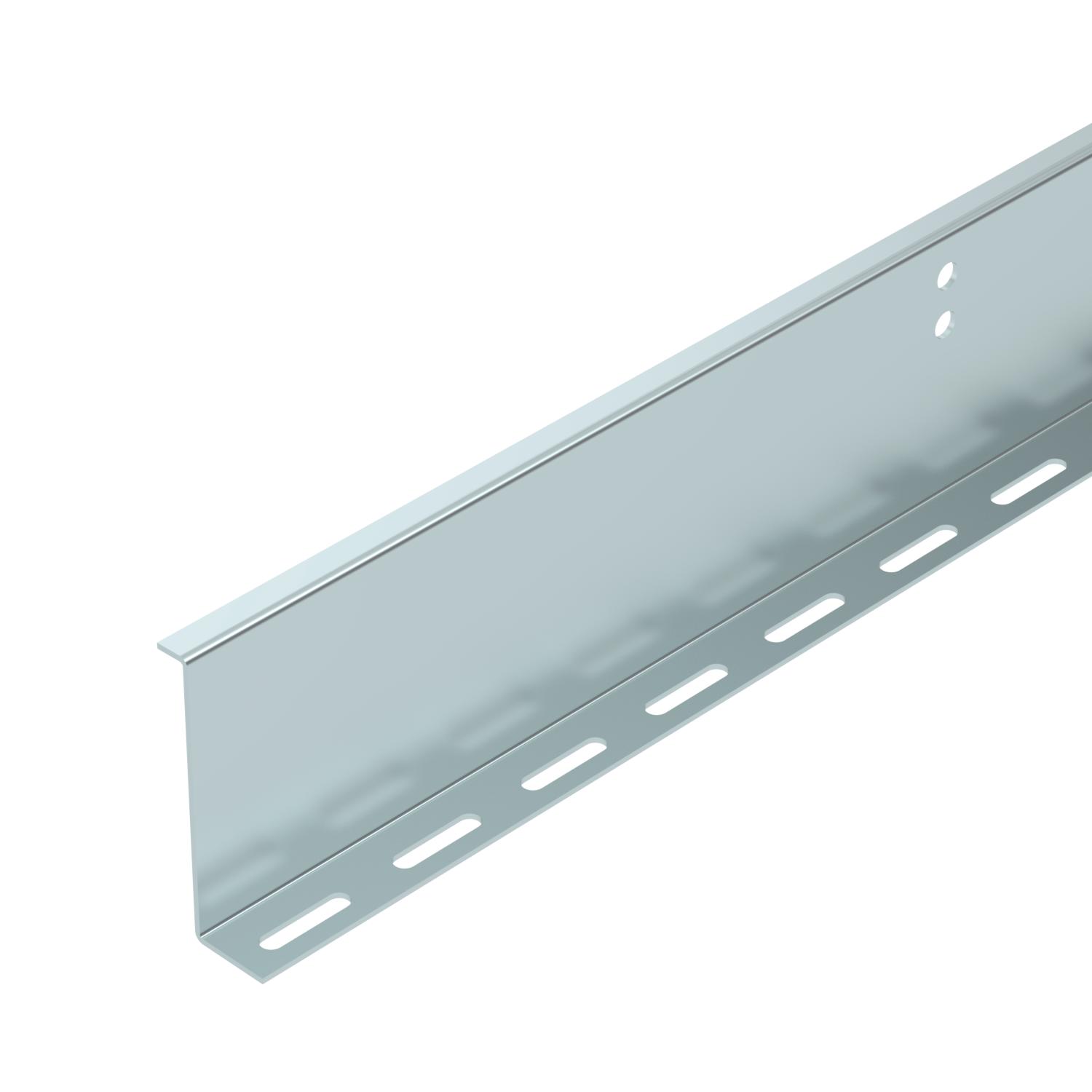

Barrier strip, Z-shaped 100 FS
Item no. 6062390 | EAN 4012196341788
- Product description
-
Product descriptionBarrier strip for the BKRS walkable cable tray system. Fastening with truss-head bolts M6 x 12 in the base perforation.
For widths of 200 mm or more, a barrier strip with a maximum compartment size of 220 mm should be used.
For widths of 500 mm or more, two barrier strips with a maximum compartment size of 220 mm should be used.
-
- Technical data
-
Technical data

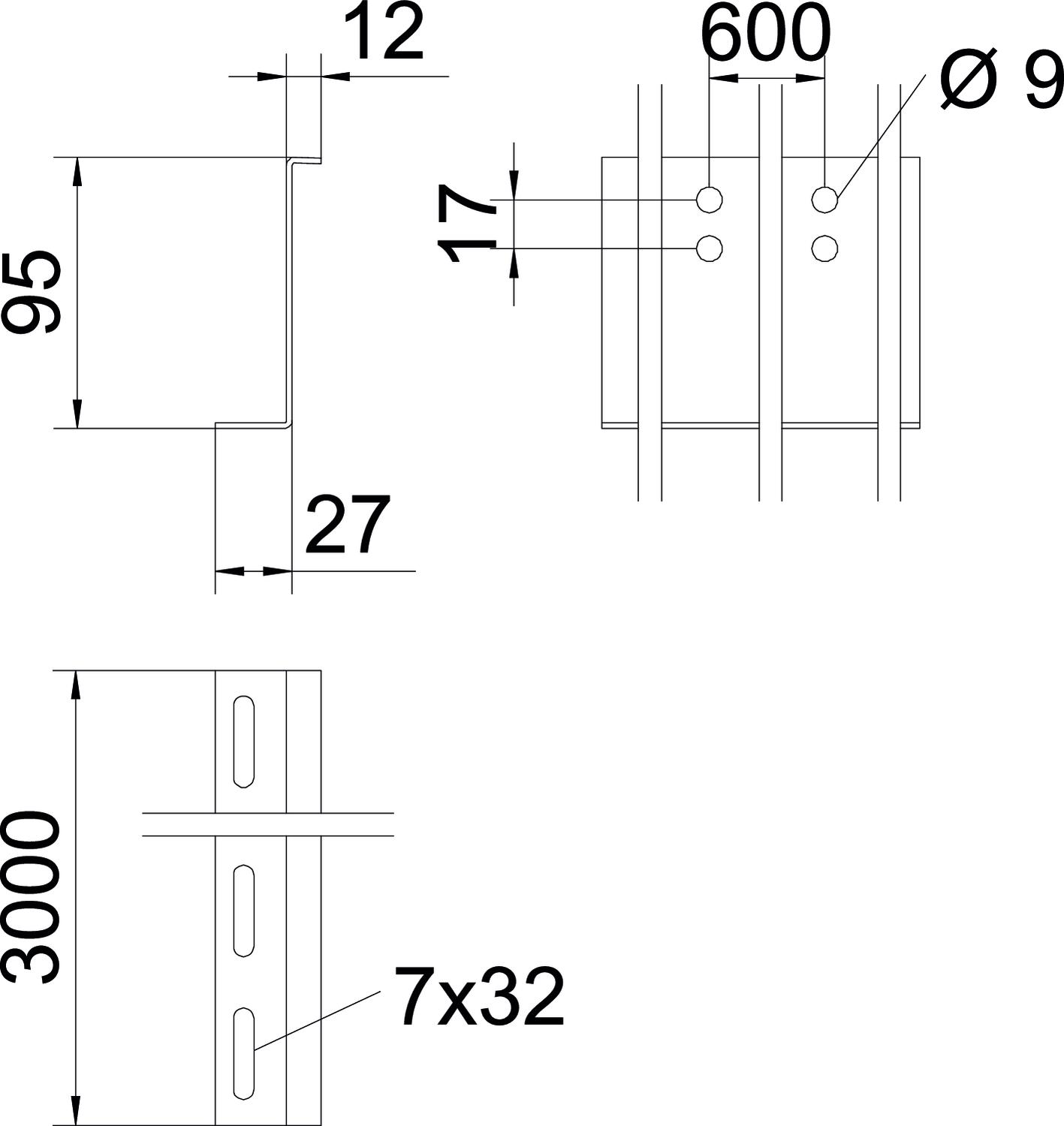

Colour zinc Dimension 100x2x3000 Fastening perforation (ETIM) yes Maintain electrical functions no Material Steel Plate thickness 2 mm Rustproof steel, pickled no Suitable for cable ladder no Suitable for cable tray yes Suitable for mesh cable tray no Surface Strip galvanised Version for Miscellaneous Dimensions
Dimension H 100 mm Dimension L 3000 mm Height 95 mm Height 4 in Length 3000 mm Length 10 ft Width 34 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 4,3791 kg CO2e / 1 Meter CO₂ Footprint (GWP) 4,3791 kg CO₂e Declared Unit (LCA) Metres Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
-
System accessories
Products Types Item no. Quantity SSU
Truss-head bolt with flange nut F
FRSB 6x12 F 6406122 100 piece - Downloads
-
Data sheet TSG100Z BKRS FS / 6062390 , 0.20MB , pdfEU declaration of conformity TSG100Z BKRS FS / 6062390 , 0.10MB , pdfUK Declaration of Conformity TSG100Z BKRS FS / 6062390 , 0.09MB , pdfREACH Declaration of conformity TSG100Z BKRS FS / 6062390 , 0.12MB , pdfRoHS Declaration of conformity TSG100Z BKRS FS / 6062390 , 0.12MB , pdfMounting instructions Cable ladder systems , 6.45MB , pdfMounting instructions General information on the mounting , 2.65MB , pdfMounting instructions Mounting instructions, BKRS walkable cable tray systems for BMW AG , 4.54MB , pdfMounting instructions Begehbares Kabelrinnensystem BKRS für VW AG nach VASS-Standard , 4.17MB , pdfMounting instructions BKRS walkable cable tray systems , 5.36MB , pdfMounting instructions Mounting instructions, BKRS walkable cable tray systems for Mercedes Benz , 4.15MB , pdfMounting instructions Mounting instructions, BKRS walkable cable tray systems for Porsche AG , 0.06MB , pdf
