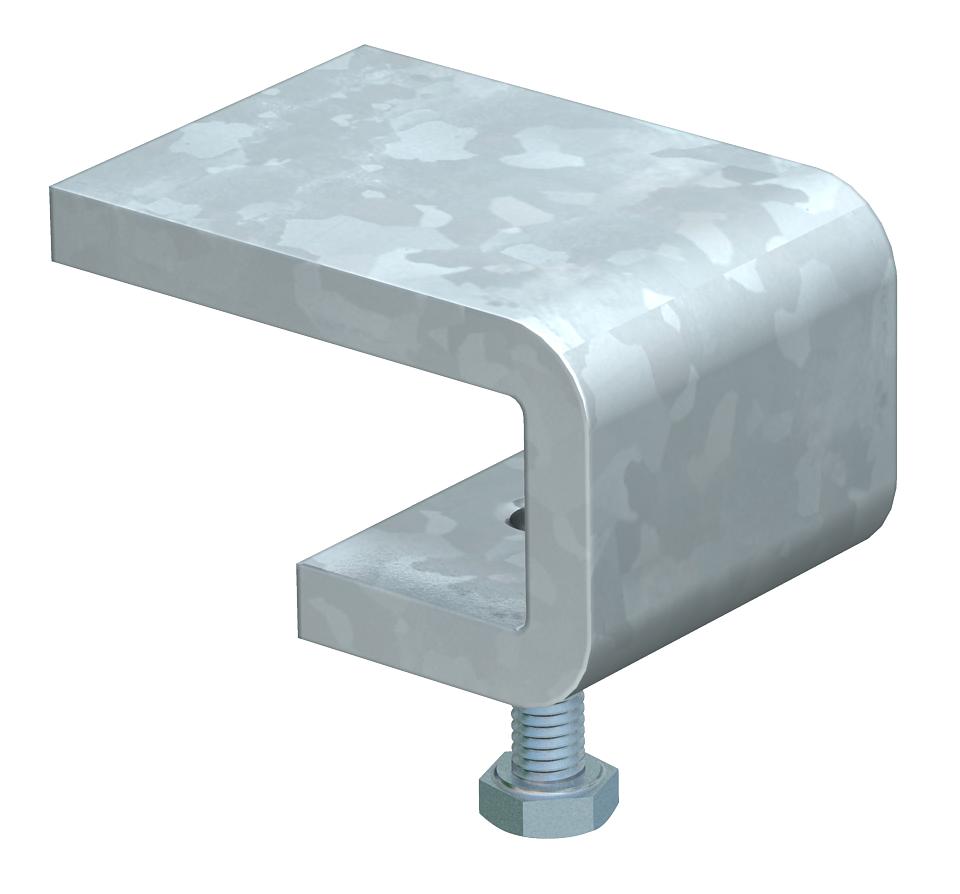

Beam clamp
Item no. 6003850 | EAN 4012196003013
- Product description
-
Product descriptionBeam clamp for fastening the mesh bracket, type GW 40 80 to steel girders.
When selecting the beam clamp, please take the flange thickness of the steel girder into account.
-
- Technical data
-
Technical data
Colour zinc Dimension 20mm Hole diameter 8 mm Material Steel Rustproof steel, pickled no Suitable for cable ladder no Suitable for cable tray no Suitable for mesh cable tray yes Surface Hot-dip galvanised Dimensions
Height 20 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 0,4546 kg CO2e / 1 Piece CO₂ Footprint (GWP) 0,4546 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
- Downloads
-
Data sheet KL 20 FT / 6003850 , 0.21MB , pdfEU declaration of conformity KL 20 FT / 6003850 , 0.10MB , pdfREACH Declaration of conformity KL 20 FT / 6003850 , 0.12MB , pdfRoHS Declaration of conformity KL 20 FT / 6003850 , 0.13MB , pdfMounting instructions Mounting instructions, mesh cable tray systems , 9.52MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
