C mesh cable tray CGR 50 FT

Item no. / Types

Length	3000 mm

Width

Height	50 mm

Wire diameter	4.5 mm

Usable cross-section

Maintain electrical functions	no

Product description

Product description

C-shaped mesh cable tray made of spot-welded steel wire of side height 50 mm.
Magnetic shield insulation 15 dB.

Technical data

Colour	zinc
Connector version	Without connectors

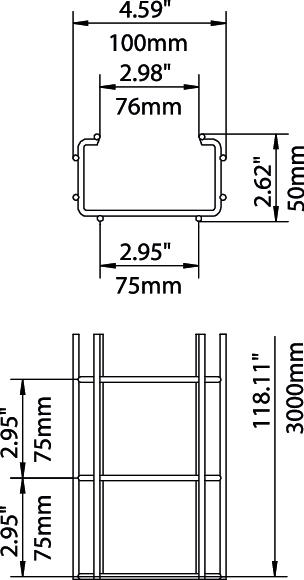

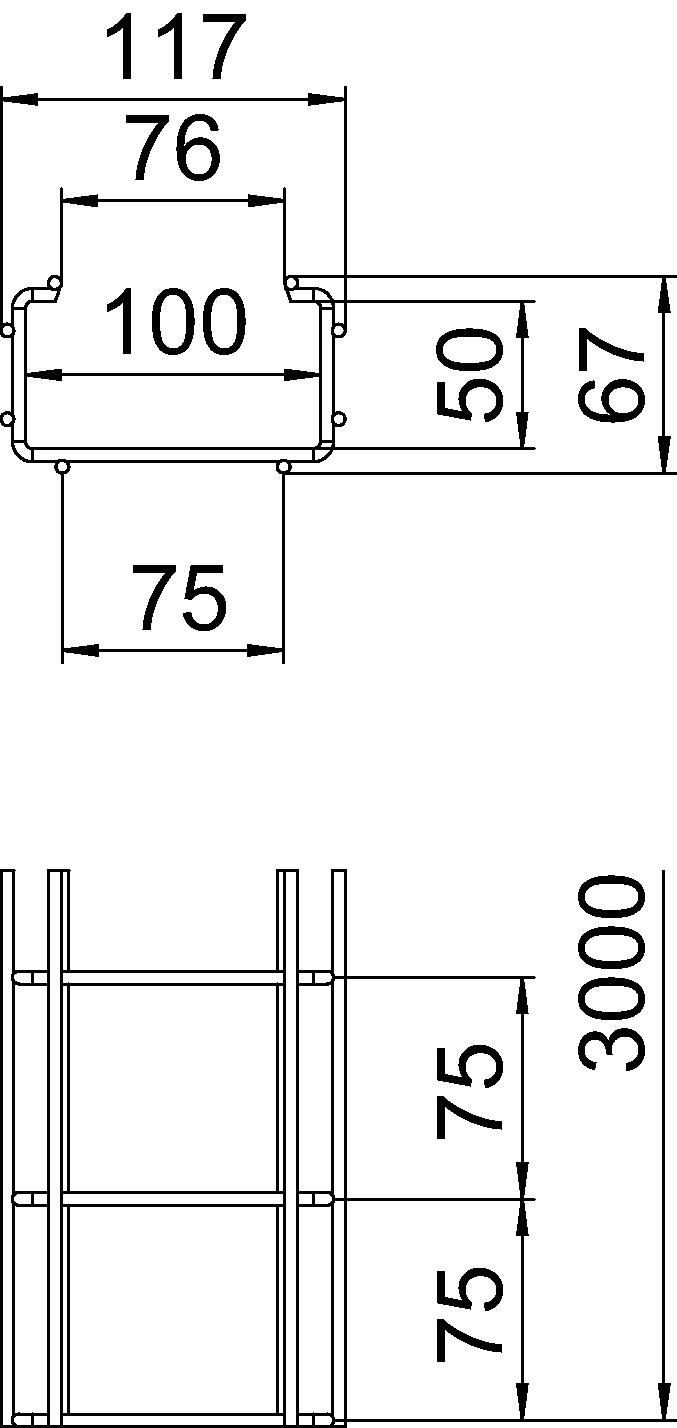

Dimension	50x100x3000
Integrated partition	Without
Load test type according to IEC 61537	Type II
Maintain electrical functions	no
Material	Steel
Profile shape	C-shaped

Rustproof steel, pickled	no
Surface	Hot-dip galvanised
Type of connector, cable support system	Screwed
Usable cross-section	3400 mm²
Usable cross-section	34 cm²
Wide-span version	no
Wire diameter	4,5 mm

Support spacing 1.0 m	0,95 kN/m
Support spacing 1.5 m	0,6 kN/m

Support spacing 2.0 m	0,35 kN/m

CO2 Footprint (GWP) Cradle-to-Gate	2,7445 kg CO2e / 1 Meter
CO₂ Footprint (GWP)	2,7445 kg CO₂e
Declared Unit (LCA)	Metres

Declared Unit Quantity (LCA)	1
Determination date of CO2 value	2025-05-14T00:00:00.000+0200

All types

All types

Types	Length	Width	Height	Wire diameter	Usable cross-section	Maintain electrical functions	Item no.	Quantity	SSU
CGR 50 50 FT	3000 mm	50 mm	50 mm	4.5 mm	13 cm²	no	6017428	m	3 m
CGR 50 100 FT	3000 mm	100 mm	50 mm	4.5 mm	34 cm²	no	6017436	m	3 m
CGR 50 200 FT	3000 mm	200 mm	50 mm	4.5 mm	75 cm²	no	6017444	m	3 m
CGR 50 300 FT	3000 mm	300 mm	50 mm	4.5 mm	116 cm²	no	6017452	m	3 m
CGR 50 400 FT	3000 mm	400 mm	50 mm	4.5 mm	157 cm²	no	6017460	m	3 m

Accessories

Products	Types	Item no.	Quantity	SSU
Joint connector FT	GSV 34 FT	6016634	piece	20 piece
45° mounting bracket FT	MW 45 SL10 FT	6017320	piece	20 piece
90° mounting angle FT	MW 90 SL17 FT	6017347	piece	20 piece
Clamping piece for separating retainer fastening	KS GR A2	6062282	piece	30 piece
Barrier strip 30 DD	TSG 30 DD	6062314	m	3 m
