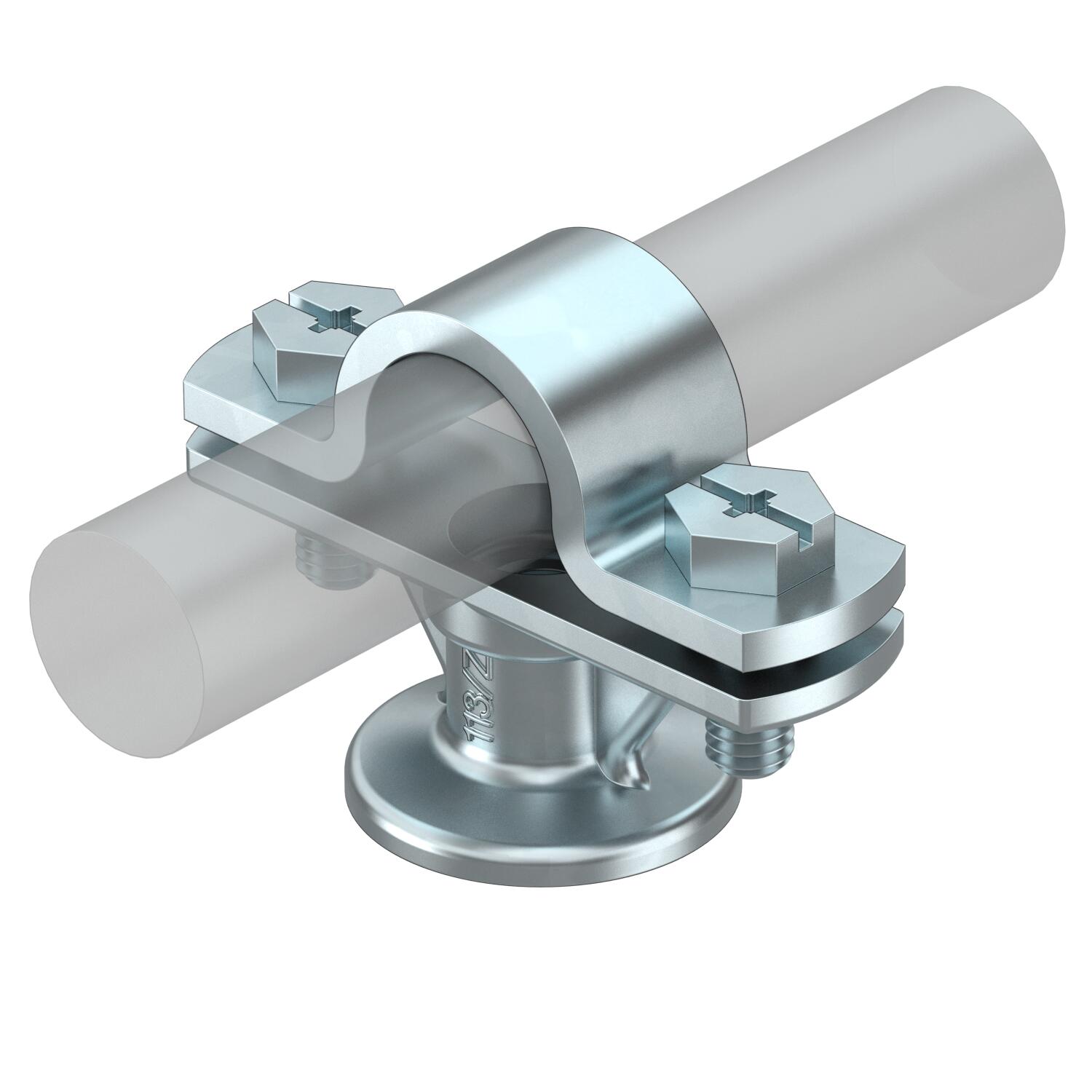

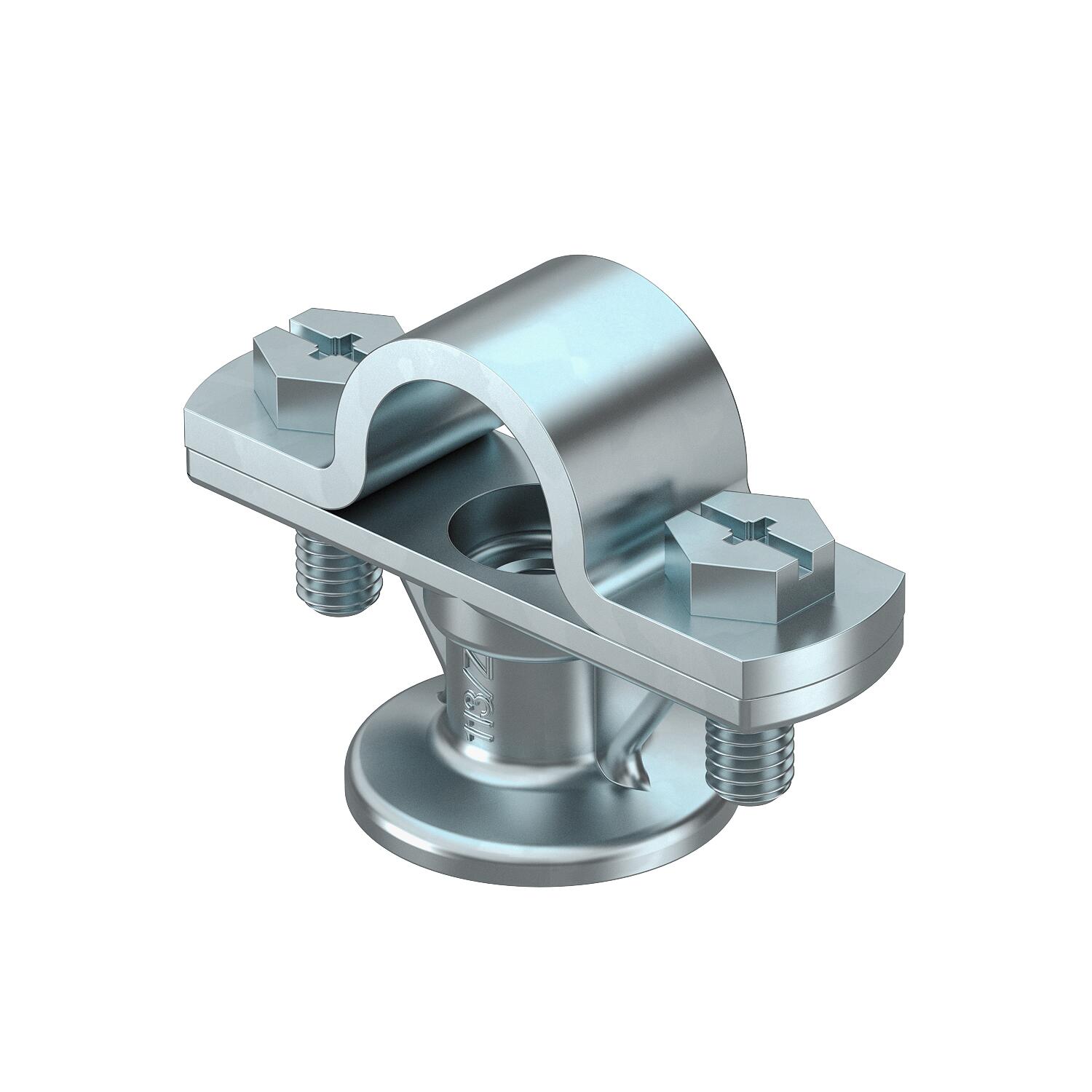

Cable bracket with Cu crossbar Rd 8−10 mm
Item no. 5412706 | EAN 4012195459071
- Product description
-
Product description113/BZ...: Cable bracket with crossbar
• With female thread M8 or through hole for wood screws
• For flat conductor FL30
• Sliding crossbar for quick mounting
-
- Technical data
-
Technical data
Cable dimensions 16 mm round Conductor fastening type With screw clip Dimension 16mm Fit 16 mm rund mm High voltage-resistant, insulated version no Holder fastening type Drill hole with M-thread Material Die-cast zinc Material of the base Die-cast zinc Material of the crossbar Die-cast zinc Material of the holder Die-cast zinc Surface galvanised Use in Ex area yes CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 0,2537 kg CO2e / 1 Piece CO₂ Footprint (GWP) 0,2537 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-21T00:00:00.000+0200 - All types
- Downloads
-
Data sheet 113 B-Z16 / 5412706 , 0.17MB , pdfEU declaration of conformity 113 B-Z16 / 5412706 , 0.06MB , pdfREACH Declaration of conformity 113 B-Z16 / 5412706 , 0.12MB , pdfRoHS Declaration of conformity 113 B-Z16 / 5412706 , 0.13MB , pdf
