Cable tray RKS-Magic® 60 FS black 3050 | 100 | 60 | 0.75 | no | Jet black; RAL 9005 | Steel | PES135 - Polyester

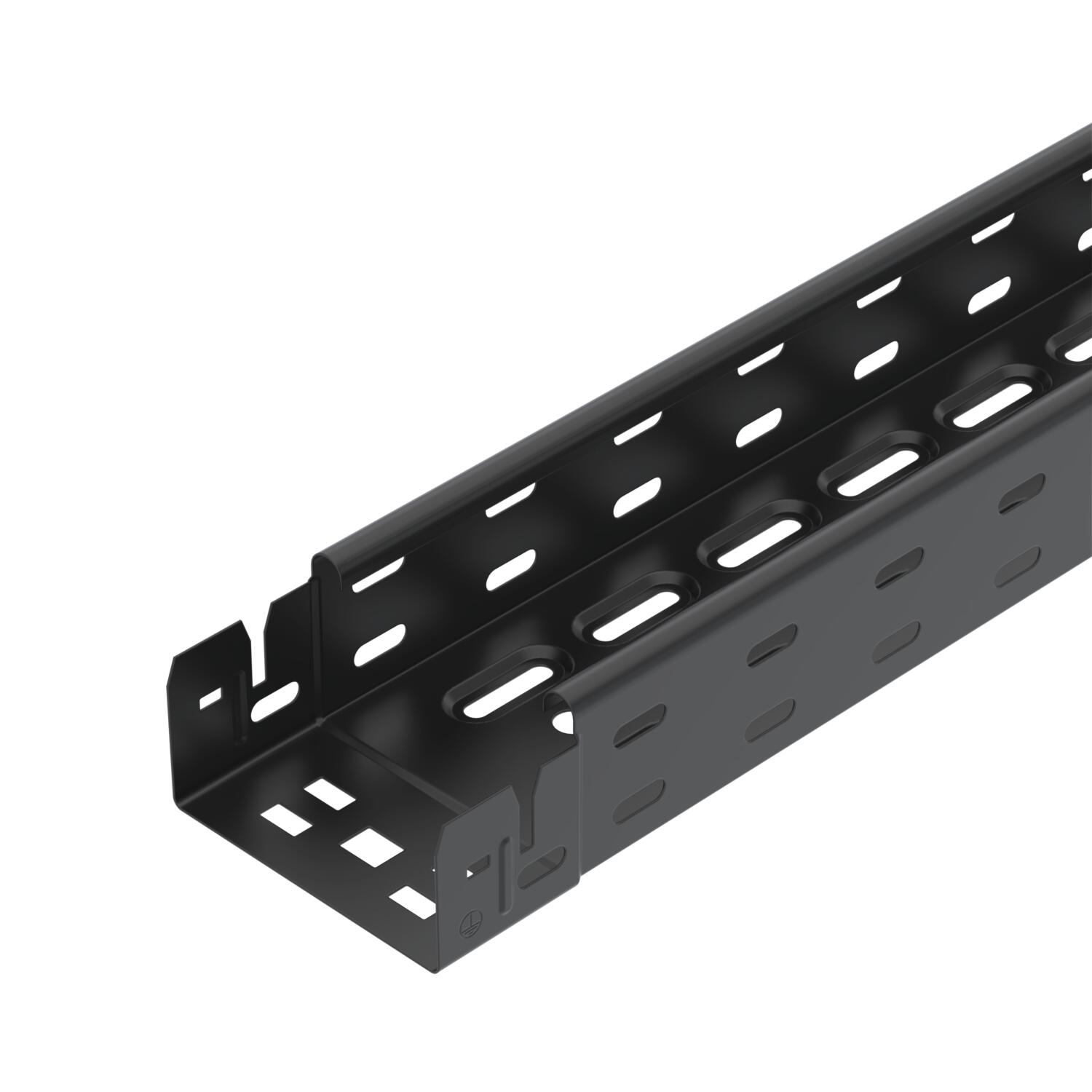

Cable tray RKS-Magic® 60 FS black

Item no. 6048239 | EAN 4012197267001

Item no. / Types

Length	3050 mm

Width

Height	60 mm

Plate thickness

Maintain electrical functions	no

Colour	Jet black; RAL 9005

Material	Steel

Surface	PES135 - Polyester

Product description

Product description

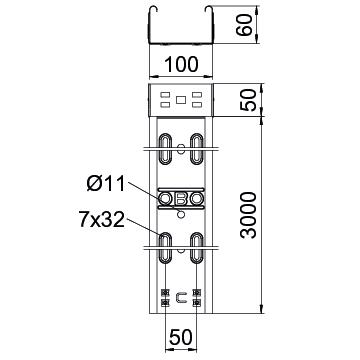

Cable tray with integrated quick-fastening system. Strip galvanised surface, powder-coated in jet black (RAL 9005). Continuous side perforations of 7 x 20 mm for the installation of additional connection and mounting components. With 11 mm perforation in the base for direct threaded rod suspension. Usable length 3,000 mm.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.

Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate	3,2359 kg CO₂e / 1 Meter
Colour	Jet black; RAL 9005
Connector version	Integrated connector
Dimension	60x100x3050
Dimension	60 x 100
Dimension B	100 mm
Dimension x	50 mm
Height	60 mm
Length	3050 mm
Load test type according to IEC 61537	Type II
Maintain electrical functions	no
Maß W	100 mm
Material	Steel
Mounting perforation in base	yes
NATO hole pattern	no

Plate thickness	0,75 mm
Rustproof steel, pickled	no
Side perforation	yes
Support spacing 1.0 m	1,2 kN/m
Support spacing 1.5 m	0,9 kN/m
Support spacing 2.0 m	0,6 kN/m
Support spacing 2.5 m	0,4 kN/m
Surface	PES135 - Polyester
Type of connector, cable support system	Click fastening
Usable cross-section	5800 mm²
Usable cross-section	58 cm²
Usable length	3000 mm
Wide-span version	no
Width	100 mm
With cover	no

All types

All types

Types	Length	Width	Height	Plate thickness	Maintain electrical functions	Colour	Material	Surface	Item no.	Quantity	SSU
RKSM 610 FSK SW	3050 mm	100 mm	60 mm	0.75 mm	no	Jet black; RAL 9005	Steel	PES135 - Polyester	6048239	m	6 m
RKSM 620 FSK SW	3050 mm	200 mm	60 mm	0.75 mm	no	Jet black; RAL 9005	Steel	PES135 - Polyester	6048253	m	6 m
RKSM 630 FSK SW	3050 mm	300 mm	60 mm	0.75 mm	no	Jet black; RAL 9005	Steel	PES135 - Polyester	6048265	m	6 m
RKSM 640 FSK SW	3050 mm	400 mm	60 mm	0.9 mm	no	Jet black; RAL 9005	Steel	PES135 - Polyester	6048269	m	6 m

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU

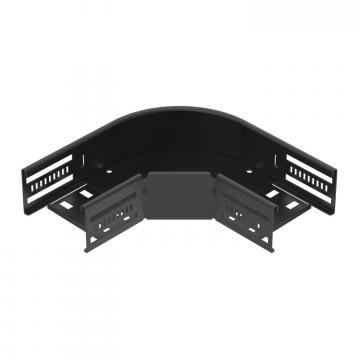

90° bend 60, black	RB 90 610 FSK SW	6043260	piece	1 piece

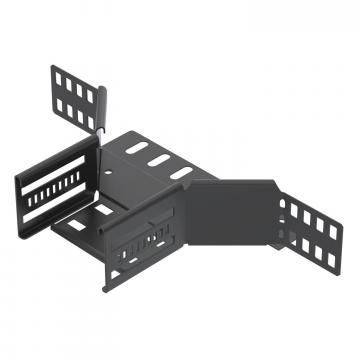

Add-on tee 60, black	RAA 610 FSK SW	7121860	piece	1 piece
Barrier strip 45 FSK, black	TSG 45 FSK SW	6479451	m	3 m

Mounting accessories

Products	Types	Item no.	Quantity	SSU
Straight connector 60 FSK, black	RLVK 60 FSK SW	6067097	piece	10 piece
Straight and angle connector 60 FSK, black	RWVL 60 FSK SW	6067624	piece	10 piece
Adjustable connector 60 FSK, black	RGV 60 FSK SW	7082759	piece	10 piece

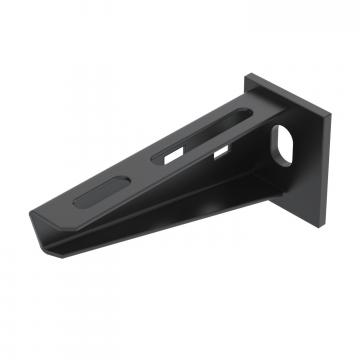

Wall and support bracket AW 15, black	AW 15 11 FTK SW	6420681	piece	1 piece
Suspension bracket, black	AHB 100 FTK SW	6363875	piece	1 piece

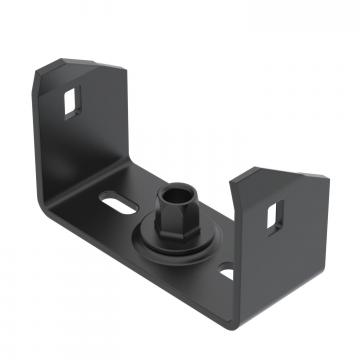

Centre suspension for cable tray, side height 60 mm, black	MAH 60 100 FSKSW	6358740	piece	1 piece
