Cable tray SKSU 85 FT

Item no. / Types

Length	3000 mm

Width

Plate thickness	1.5 mm

Maintain electrical functions	no

Material	Steel

Surface	Hot-dip galvanised

Product description

Product description

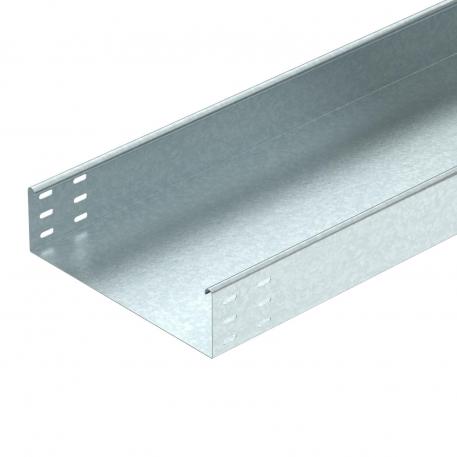

SKS 85 = Heavy-duty cable tray system, unperforated, with 85 mm side height.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.

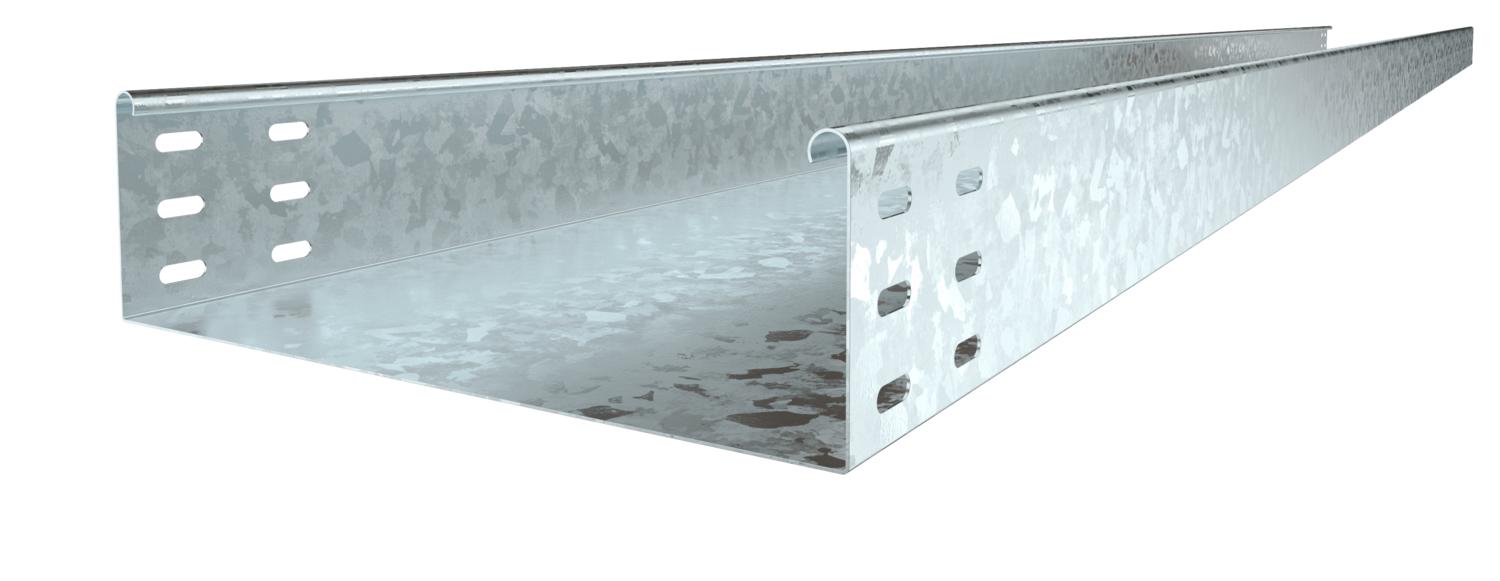

The cable tray has connector perforations on both sides. Straight connectors should be ordered in the appropriate quantity.

Technical data

Colour	zinc
Connector version	Without connectors

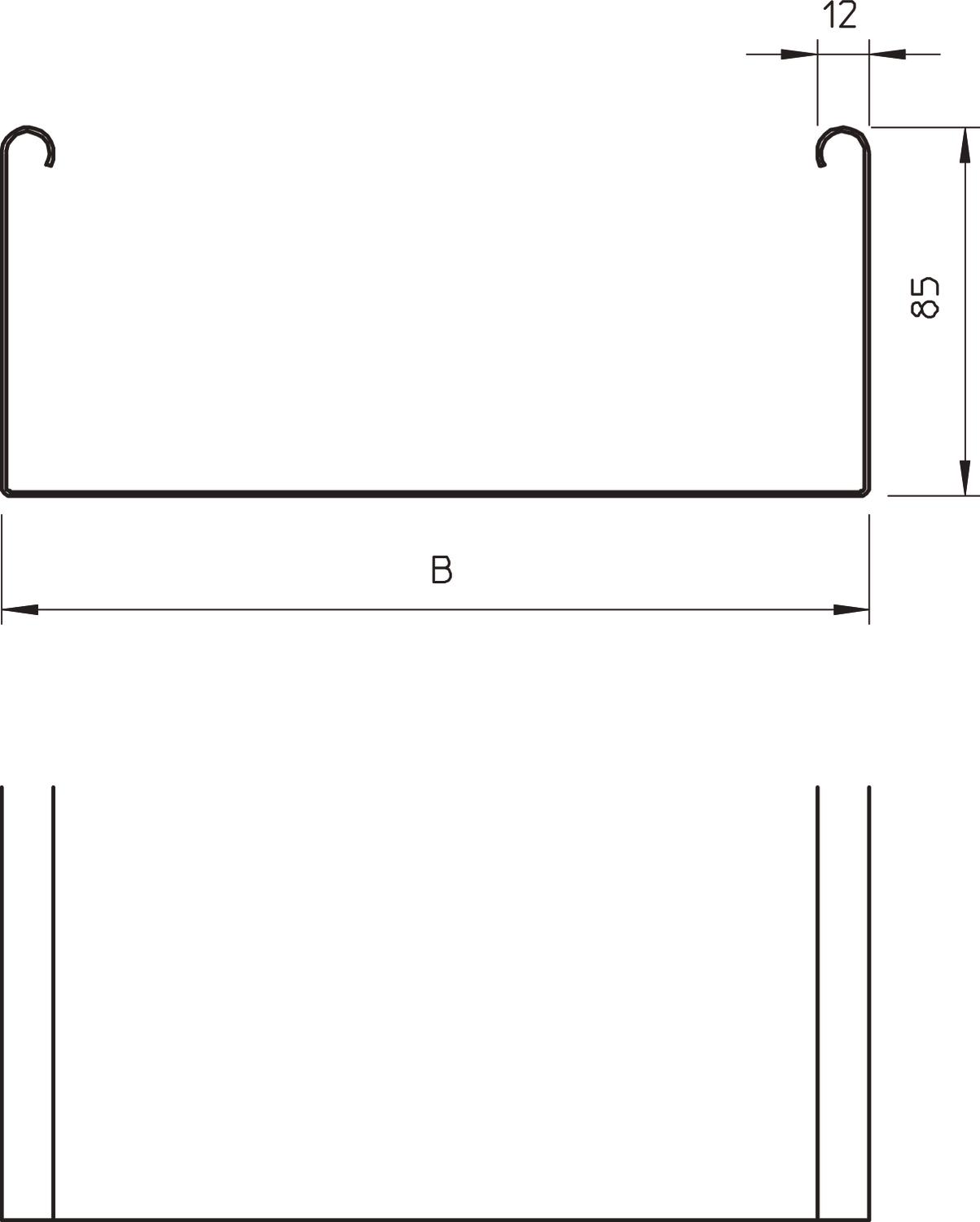

Dimension	85 x 600
Dimension	85x600x3000
Load test type according to IEC 61537	Type II
Maintain electrical functions	no
Material	Steel
Mounting perforation in base	no
NATO hole pattern	no

Plate thickness	1,5 mm
Rustproof steel, pickled	no
Side perforation	no
Surface	Hot-dip galvanised
Type of connector, cable support system	Screwed
Usable cross-section	50800 mm²
Usable cross-section	508 cm²
Wide-span version	no
With cover	no

Dimension B	600 mm
Height	85 mm

Length	3000 mm
Width	600 mm

Technical data

All types

Types	Length	Width	Plate thickness	Maintain electrical functions	Material	Surface	Item no.	Quantity	SSU
SKSU 810 FT	3000 mm	100 mm	1.5 mm	no	Steel	Hot-dip galvanised	6064558	m	3 m
SKSU 820 FT	3000 mm	200 mm	1.5 mm	no	Steel	Hot-dip galvanised	6064560	m	3 m
SKSU 830 FT	3000 mm	300 mm	1.5 mm	no	Steel	Hot-dip galvanised	6064562	m	3 m
SKSU 840 FT	3000 mm	400 mm	1.5 mm	no	Steel	Hot-dip galvanised	6064566	m	3 m
SKSU 850 FT	3000 mm	500 mm	1.5 mm	no	Steel	Hot-dip galvanised	6064569	m	3 m
SKSU 860 FT	3000 mm	600 mm	1.5 mm	no	Steel	Hot-dip galvanised	6064573	m	3 m
