Note: This article is discontinued.
You can find the current article here: 2003820 / HW Cavity wall device box 61, CEE/PERILEX, with cover
Cavity wall connection socket with cover
Item no. 2003430 | EAN 4012195032892
- Product description
-

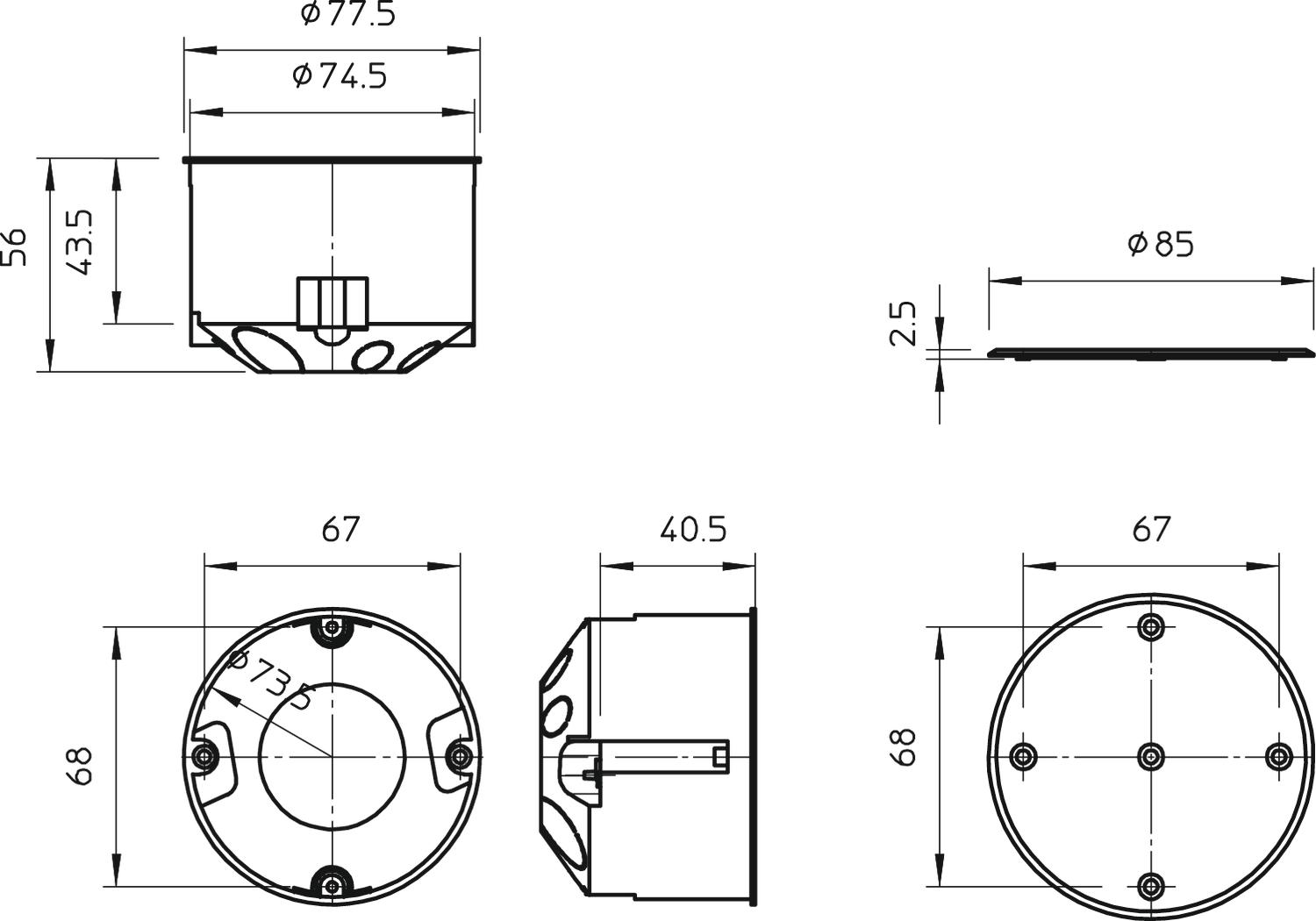

Product descriptionCavity wall connection box with cover, dimensions to DIN 49073-1, for plate thickness 7–35 mm. 8 break-out openings for NYM cables, data cables and pipes Ø 20 mm, protection rating IP30.
According to IEC 60670-1, IEC 60670-22 and DIN 49073-1.
-
- Technical data
-
Technical data
Airtight no CO2 Footprint (GWP) Cradle-to-Gate 0,1215 kg CO₂e / 1 Piece Colour Orange Cover Not transparent Cover fastening Screwed Cover screw clearance 67 mm Diameter 74 mm Dimension Ø74mm, H50mm Entry from rear yes Equipment Without Flame-resistant Acc. to VDE 0471/DIN 695 Part 2-1, test temperature 850°C Floor height, min. 50 mm for pipe diameter 20 mm Halogen-free yes Height 50 mm Impact-resistant no Maintain electrical functions Without Material Polypropylene Max. Conductor cross-section 2,5 mm² Milling hole diameter 74 mm No. of entries 8 Nominal cross-section, max. 2,5 mm² Nominal cross-section, min. 1,5 mm² Number of switch boxes 1 Protection rating IP30 Rated voltage 400 V Sealable no Shape Round Suitable for plate thickness, max. 35 mm Suitable for plate thickness, min. 7 mm Support Without Type of entry break-out openings for NYM cables, data cables and pipes Ø 20 mm Type of housing penetration Pre-marking With bolts yes With nail strap no With screening no - All types
- Downloads
-
Data sheet HV 70 D / 2003430 , 0.22MB , pdfEU declaration of conformity HV 70 D / 2003430 , 0.04MB , pdfREACH Declaration of conformity HV 70 D / 2003430 , 0.12MB , pdfRoHS Declaration of conformity HV 70 D / 2003430 , 0.13MB , pdfLabel approval VDE symbol approval HV 70 D , 0.12MB , pdf
