Note: This article is discontinued.
Centre suspension mesh cable tray A4
Item no. 6015261 | EAN 4012196942671
- Product description
-

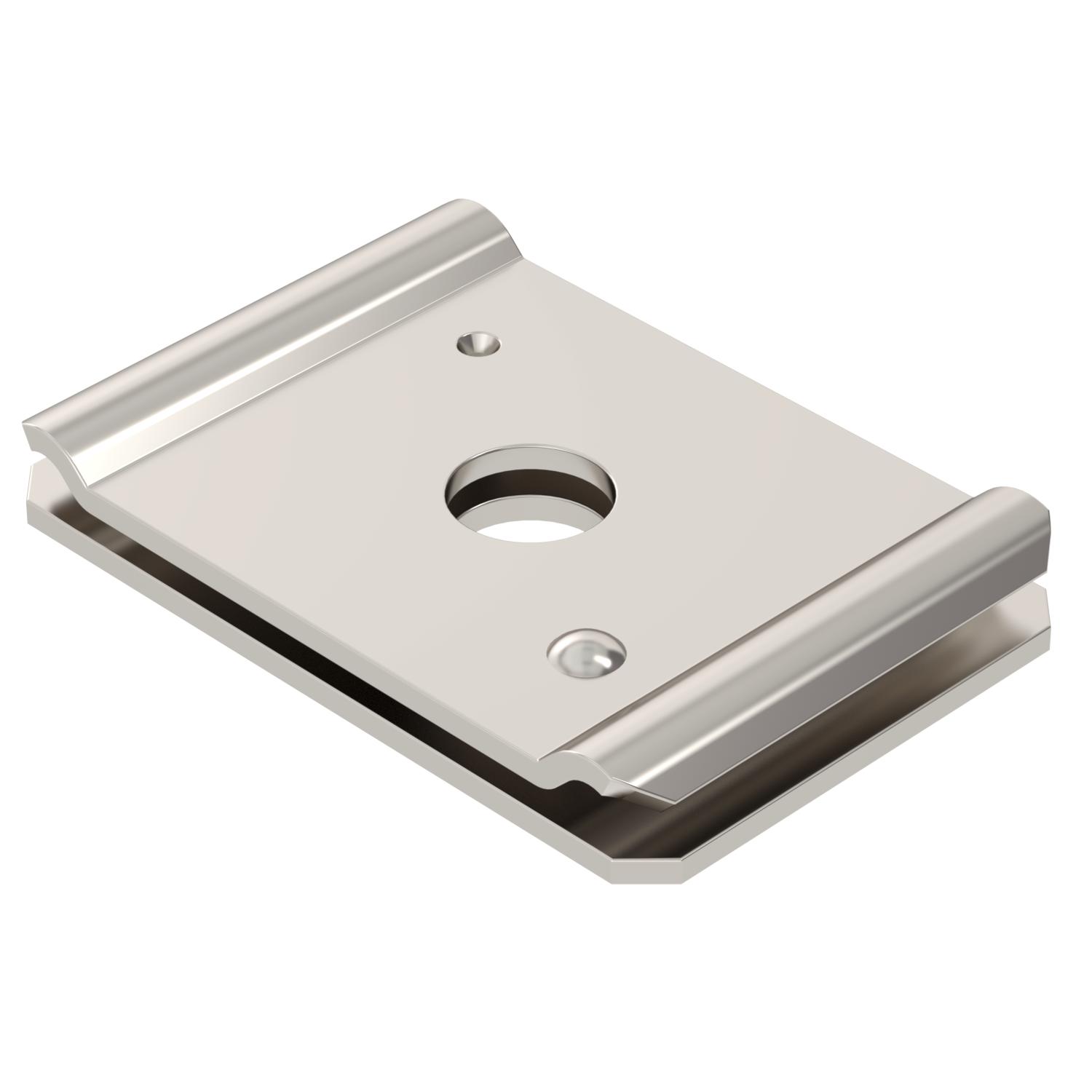

Product descriptionTwo-part centre suspension of mesh cable trays.
When filling with cables, please ensure an even distribution. The maximum recommended mesh cable tray width is 200 mm.
-
- Technical data
-
Technical data

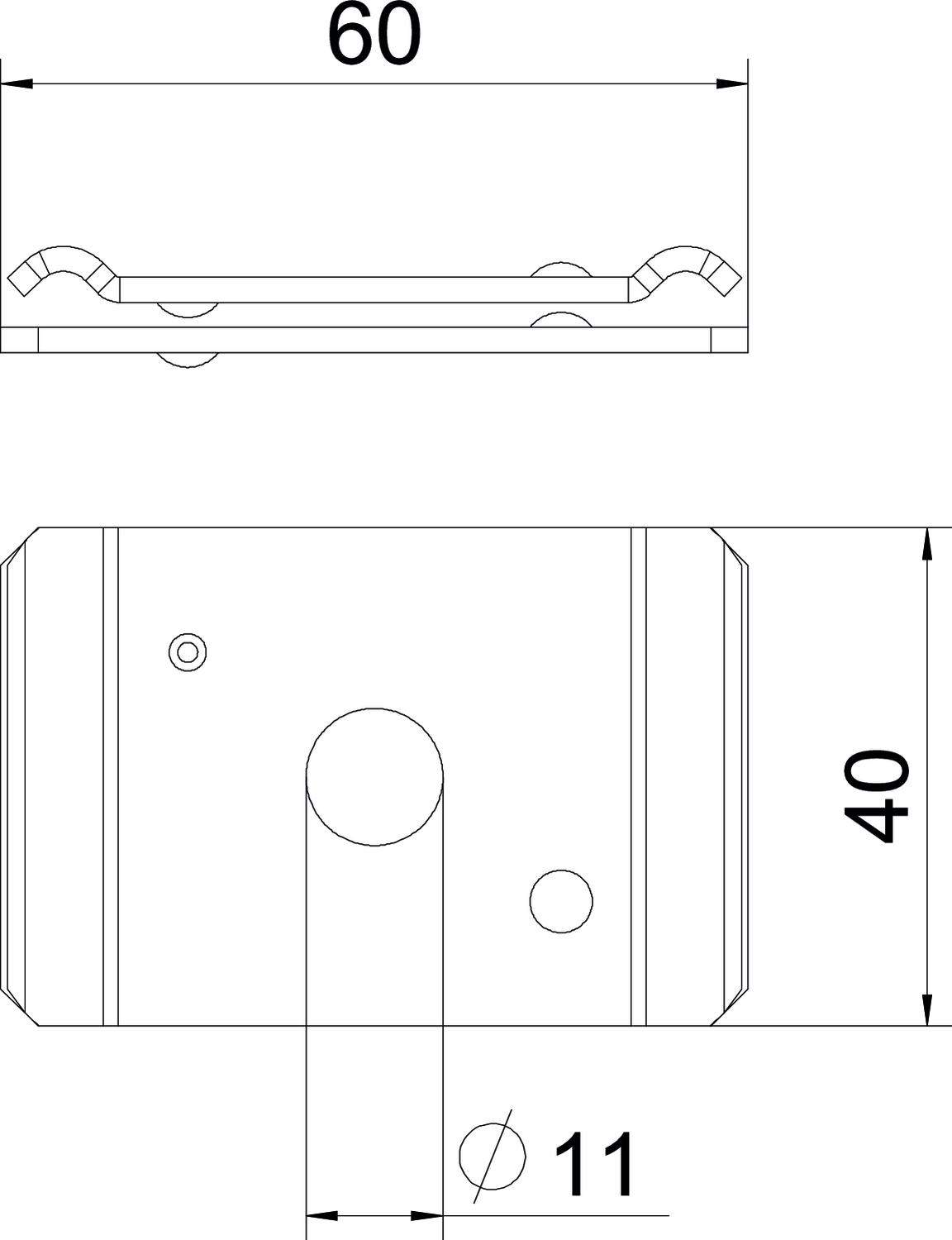

Adjustable no Dimension 60x40 Height 10,1 mm Hole diameter 11 mm Length 65 mm Maintain electrical functions no Material Stainless steel 1.4401 Suitable for mesh cable tray yes Version for Suspended Width 40 mm - All types
-
All types
- Downloads
-
Data sheet GMA M10 A4 / 6015261 , 0.19MB , pdfEU declaration of conformity GMA M10 A4 / 6015261 , 0.10MB , pdfREACH Declaration of conformity GMA M10 A4 / 6015261 , 0.12MB , pdfRoHS Declaration of conformity GMA M10 A4 / 6015261 , 0.12MB , pdfMounting instructions Mounting instructions, mesh cable tray systems , 9.52MB , pdfMounting instructions General information on the mounting , 2.65MB , pdfNo invitation to tender text is available for this product.
