Note: This article is discontinued.

Centre suspension mesh cable tray A4 65 | 40 | 9 | |

morepic-1

morepic-2

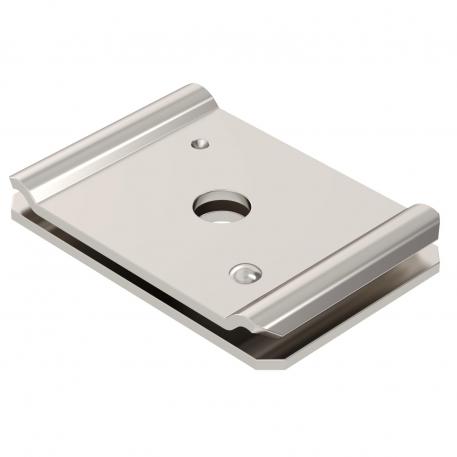

Centre suspension mesh cable tray A4

Item no. 6015245 | EAN 4012195928744

Item no. / Types

Length

Width

Hole diameter

Dimension B

Colour

Product description

Product description

Two-part centre suspension of mesh cable trays.

Technical data

Technical data

Adjustable	no
Dimension	60x40
Height	10,1 mm
Hole diameter	9 mm
Length	65 mm

Maintain electrical functions	no
Material	Stainless steel
Version for	Suspended
Width	40 mm

All types

All types

Types	Length	Width	Hole diameter	Dimension B	Colour	Item no.	Quantity	SSU
GMA M8 A4	65 mm	40 mm	9 mm	-	-	6015245	piece	25 piece
GMA M10 A4	65 mm	40 mm	11 mm	-	-	6015261	piece	25 piece
GMS 170 A4	35 mm	170 mm	11 mm	170 mm	stainless steel	6015418	piece	25 piece
GMS 270 A4	35 mm	270 mm	11 mm	270 mm	stainless steel	6015419	piece	25 piece
GMS 370 A4	35 mm	370 mm	11 mm	370 mm	stainless steel	6015420	piece	25 piece
GMS 470 A4	35 mm	470 mm	11 mm	470 mm	stainless steel	6015421	piece	10 piece
GMS 570 A4	35 mm	570 mm	11 mm	570 mm	stainless steel	6015422	piece	10 piece

Downloads

Data sheet GMA M8 A4 / 6015245 , 0.17MB , pdf

Guide KTS cable tray systems , 1.61MB , pdf

Catalogue Cable support systems , 54.52MB , pdf

EU declaration of conformity GMA M8 A4 / 6015245 , 0.10MB , pdf

REACH Declaration of conformity GMA M8 A4 / 6015245 , 0.12MB , pdf

Download

RoHS Declaration of conformity GMA M8 A4 / 6015245 , 0.12MB , pdf

Download

Mounting instructions General information on the mounting , 2.65MB , pdf

Mounting instructions Mounting instructions, mesh cable tray systems , 9.52MB , pdf

Product graphic GMA M8 A4 / 6015245, 55.09 kB, jpg

Scale drawing GMA M8 A4 / 6015245, 57.15 kB, jpg

GMA M8 A4 / 6015245

Mittenabhängung GMA M6FS,GMA M68FS,GMA M10 FS,GMA M6FT,GMA M8 FT,GMA M10 FT,GMA M6 A4,GMA M8 A4,GMA M10 A4 .rfa, 392.00 kB
