Clamping angle KWH A2 10 | 5.7

morepic-1

morepic-2

morepic-3

Clamping angle KWH A2

Item no. 6355315 | EAN 4012196195138

Item no. / Types

Height

F in kN	5.7 kN

Product description

Product description

Clamping angle, with hammer-head bolt, type KWH, for fixing in the profile rail, type CPS 5.

Choose the clamping angle according to the thickness of the flange.

The clamping angle is used in conjunction with profile rails of slot width 22 mm (e.g. type CPS 5).

Technical data

Technical data

Bolt	M12 x 50
Dimension	60x50
F in kN	5,7 kN
Height	10 mm

Material	Stainless steel 1.4301
Surface	Bright, treated
Thread metric	12

All types

All types

Types	Height	F in kN	Item no.	Quantity	SSU
KWH 5 A2	5 mm	5.7 kN	6355307	Pair	5 Pair
KWH 10 A2	10 mm	5.7 kN	6355315	Pair	5 Pair
KWH 15 A2	15 mm	5.7 kN	6355323	Pair	5 Pair
KWH 20 A2	20 mm	5.7 kN	6355331	Pair	5 Pair
KWH 25 A2	25 mm	5.7 kN	6355358	Pair	5 Pair

Downloads

Data sheet KWH 10 A2 / 6355315 , 0.17MB , pdf

Guide KTS cable tray systems , 1.61MB , pdf

Catalogue Cable support systems , 54.52MB , pdf

EU declaration of conformity KWH 10 A2 / 6355315 , 0.11MB , pdf

REACH Declaration of conformity KWH 10 A2 / 6355315 , 0.12MB , pdf

Download

RoHS Declaration of conformity KWH 10 A2 / 6355315 , 0.13MB , pdf

Download

Mounting instructions General information on the mounting , 2.65MB , pdf

Mounting instructions Mounting instructions, clamp fastening , 0.04MB , pdf

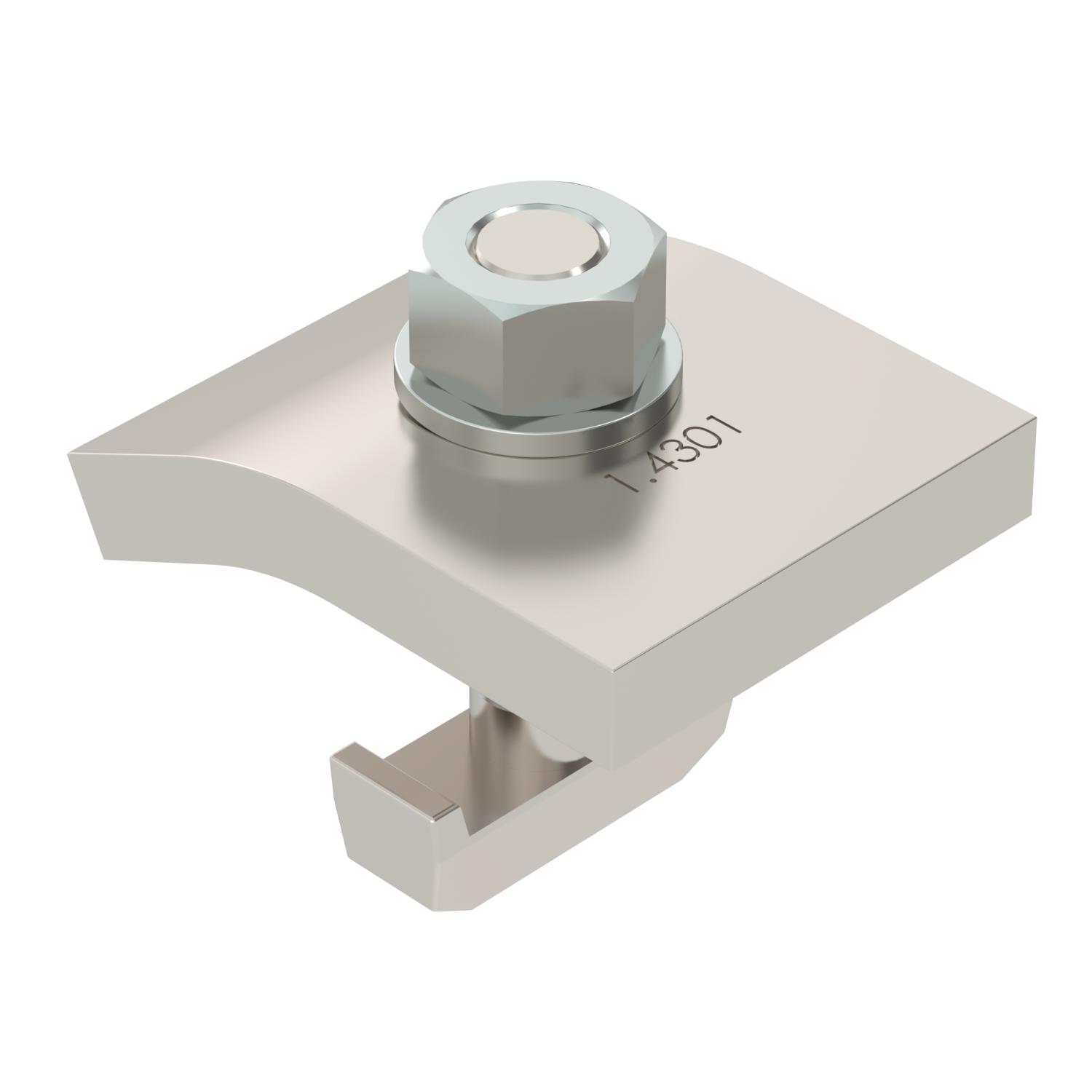

Product graphic KWH 10 A2 / 6355315, 40.49 kB, jpg

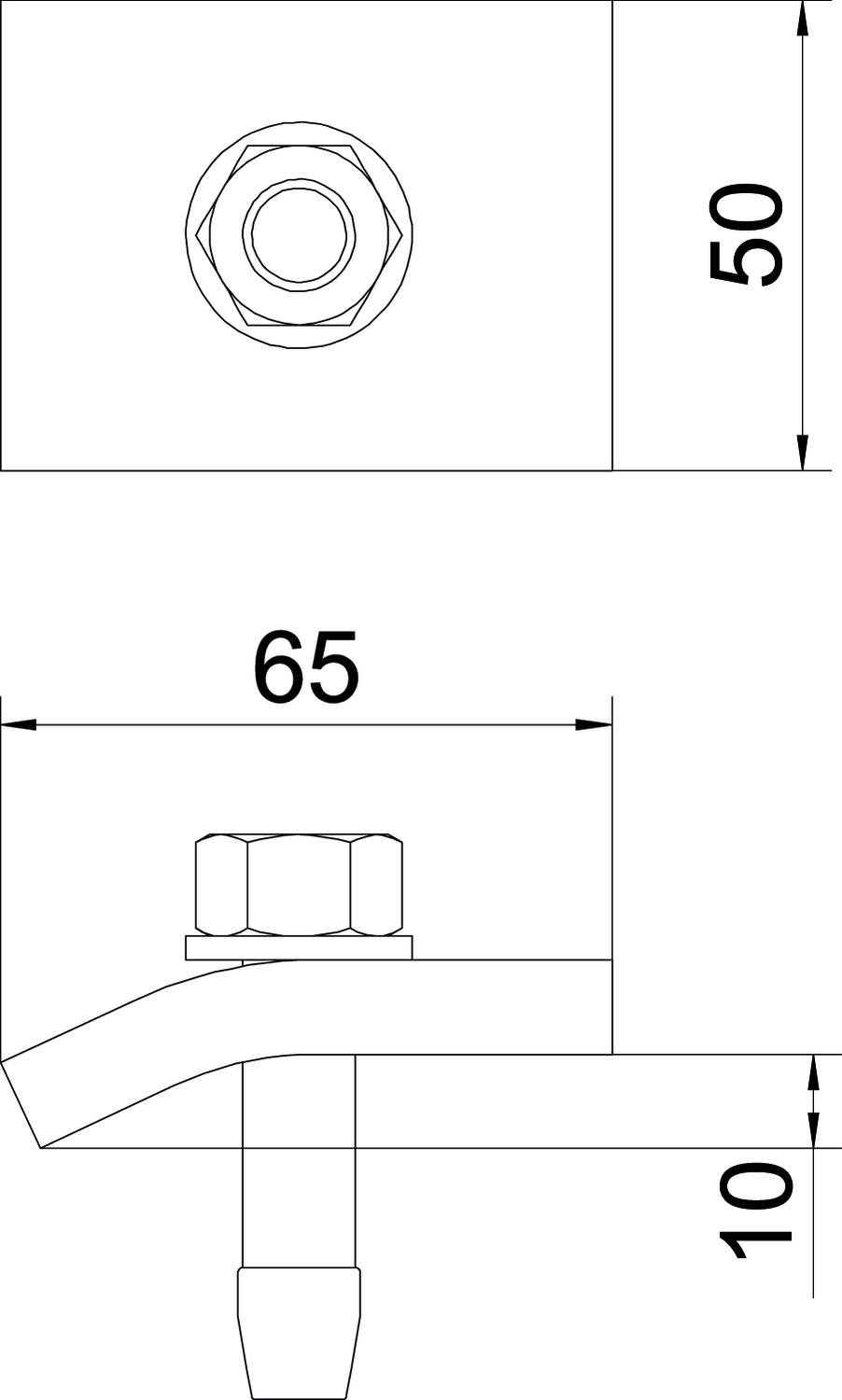

Scale drawing KWH 10 A2 / 6355315, 51.16 kB, jpg
