Note: This article is discontinued.

Clamping angle KWS A2

Item no. / Types

Height

F in kN	5.7 kN

Product description

Product description

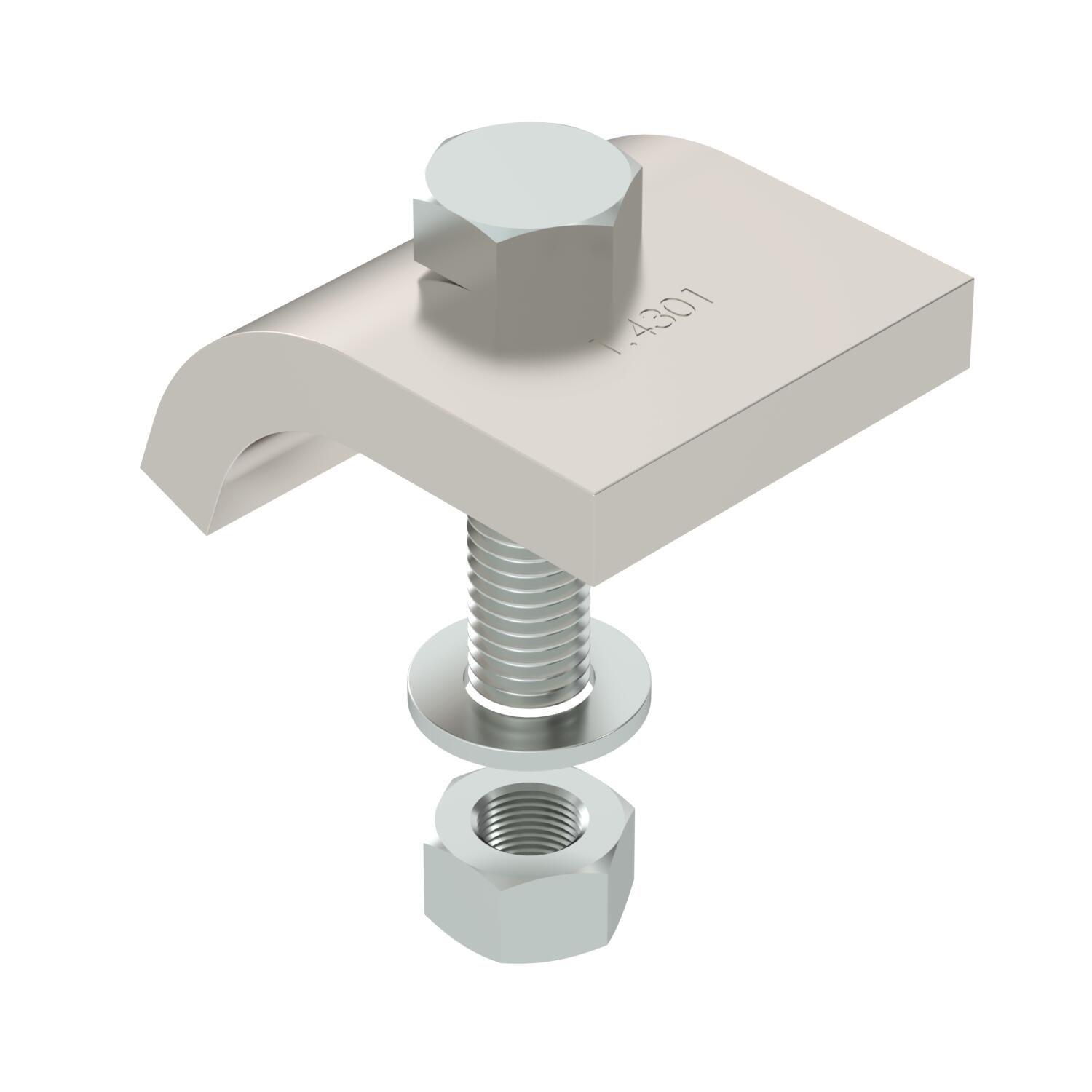

Clamping angle, with hexagonal bolt, type KWS, for direct fixing of constructions to steel girder flanges.

Technical data

All types

All types

Types	Height	F in kN	Item no.	Quantity	SSU
KWS 10 A2	10 mm	5.7 kN	6355412	Pair	5 Pair
KWS 15 A2	15 mm	5.7 kN	6355420	Pair	5 Pair

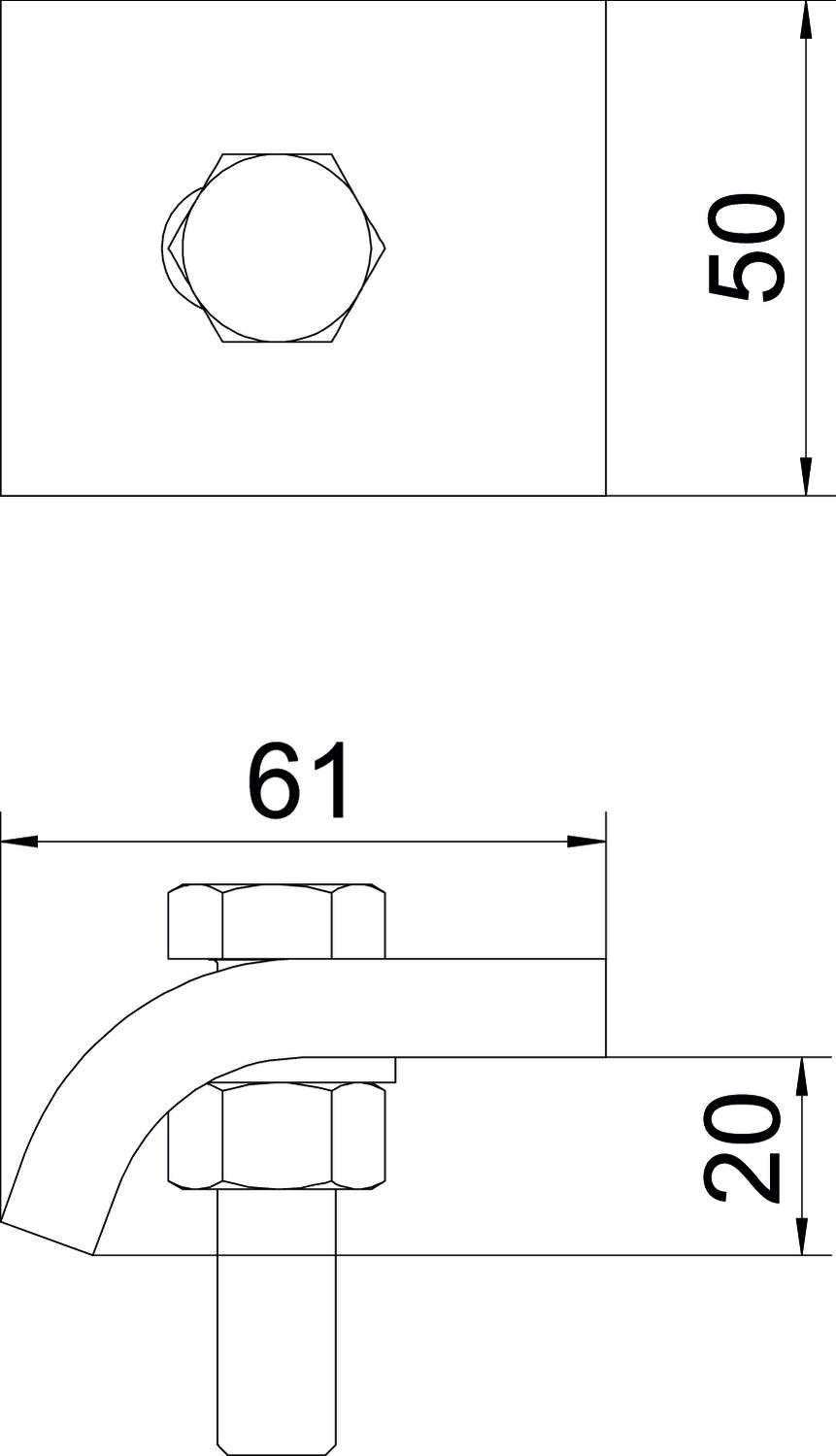

KWS 20 A2	20 mm	5.7 kN	6355439	Pair	5 Pair
KWS 25 A2	25 mm	5.7 kN	6355447	Pair	5 Pair

Downloads

Data sheet KWS 20 A2 / 6355439 , 0.17MB , pdf

Guide KTS cable tray systems , 1.61MB , pdf

Catalogue Cable support systems , 54.52MB , pdf

EU declaration of conformity KWS 20 A2 / 6355439 , 0.11MB , pdf

Download

Download

Mounting instructions Mounting instructions, clamp fastening , 0.04MB , pdf

Mounting instructions General information on the mounting , 2.65MB , pdf

KWS 20 A2 / 6355439
