Compressed air tap for industrial pole
Item no. 6290495 | EAN 4012196258659
- Product description
-

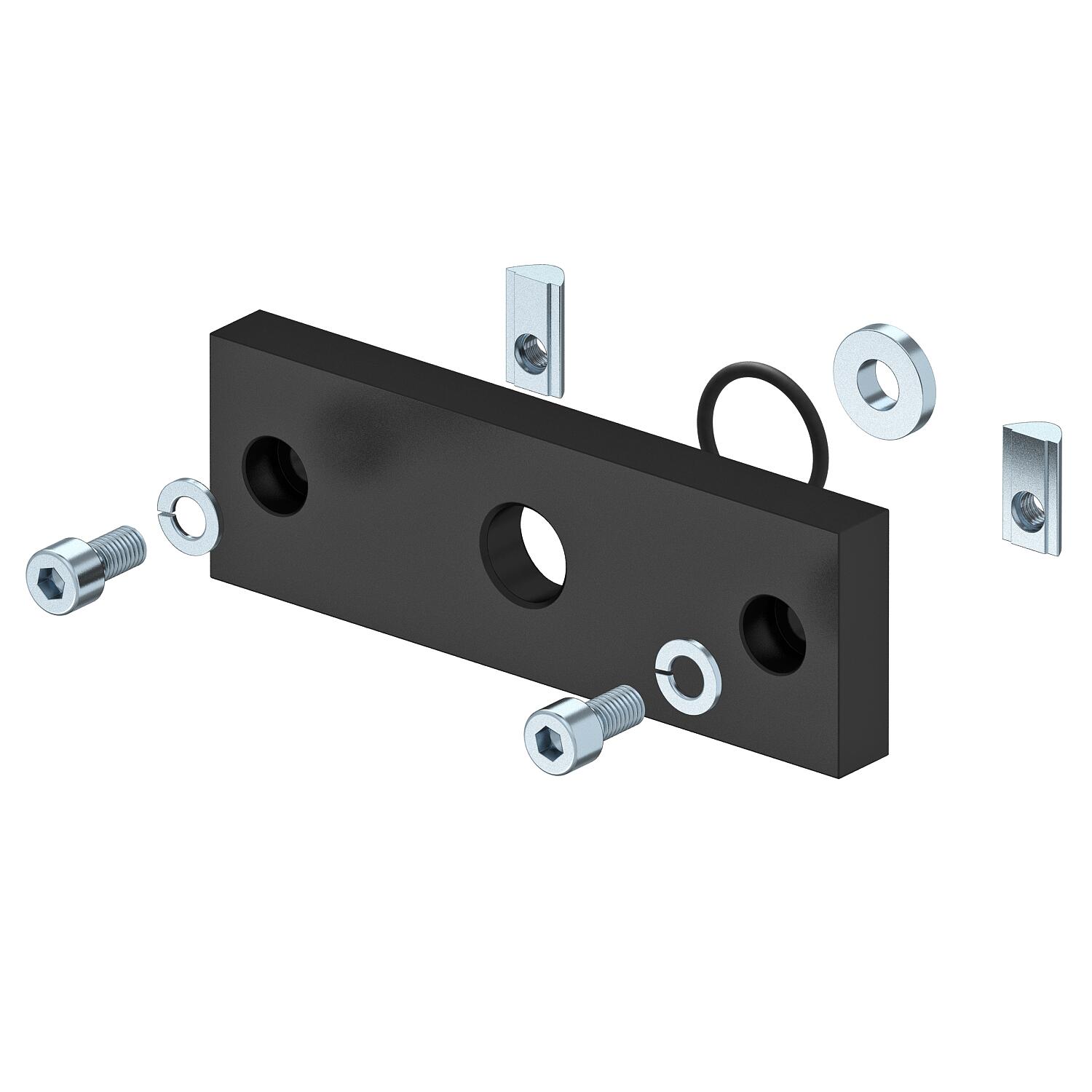

Product descriptionTap to take off compressed air from the ISS industrial pole profile. The compressed air tap has a G 1/2 (ISO 228-1) threaded hole to accept a standard compressed air coupling. The unit can be mounted onto the pole profile using slot nuts and fastening screws. For the creation of an appropriate outlet for the compressed air a drilling template is supplied.
-
- Technical data
-
Technical data
Colour Jet black; RAL 9005 Dimension 152x50x15 Halogen-free yes Material Aluminium Permitted temperature range, max. 60 °C Permitted temperature range, min. -25 °C Protection rating IP30 Protection rating IK code IK10 Dimensions

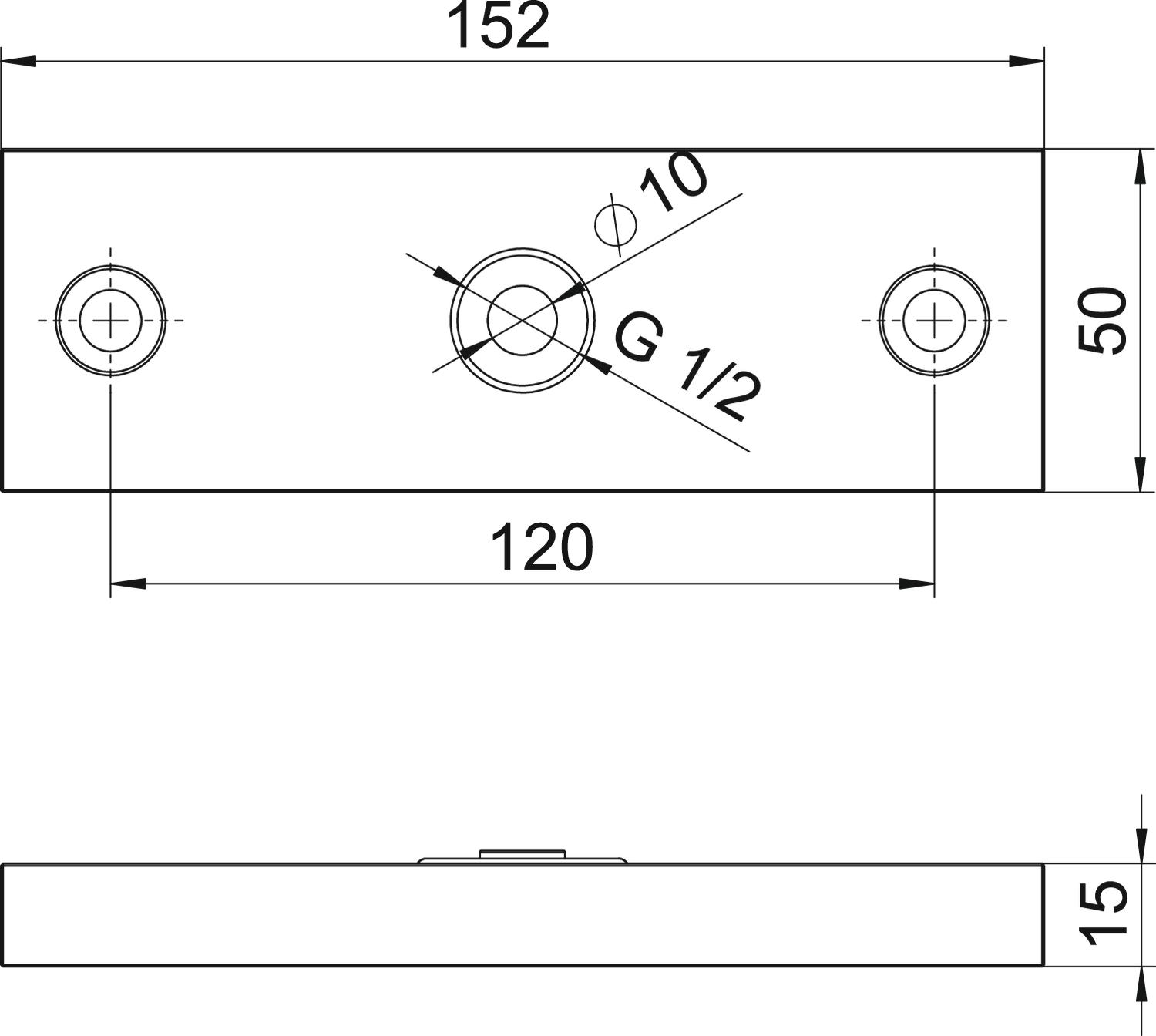

Height 15 mm Length 152 mm Width 50 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 3,9956 kg CO2e / 1 Piece CO₂ Footprint (GWP) 3,9956 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
