Connection and end piece, DIN version | H/100 | Rd 8-10
morepic-1 morepic-2 video-1

Connection and end piece, DIN version

Item no. 5304601 | EAN 4012195416470

5304601 / 5005 DIN-FT
H/100 kA
Rd 8-10 mm
Product description
Product description
• With 2 attaching holes and 1 fix contact clamping screw 5000…

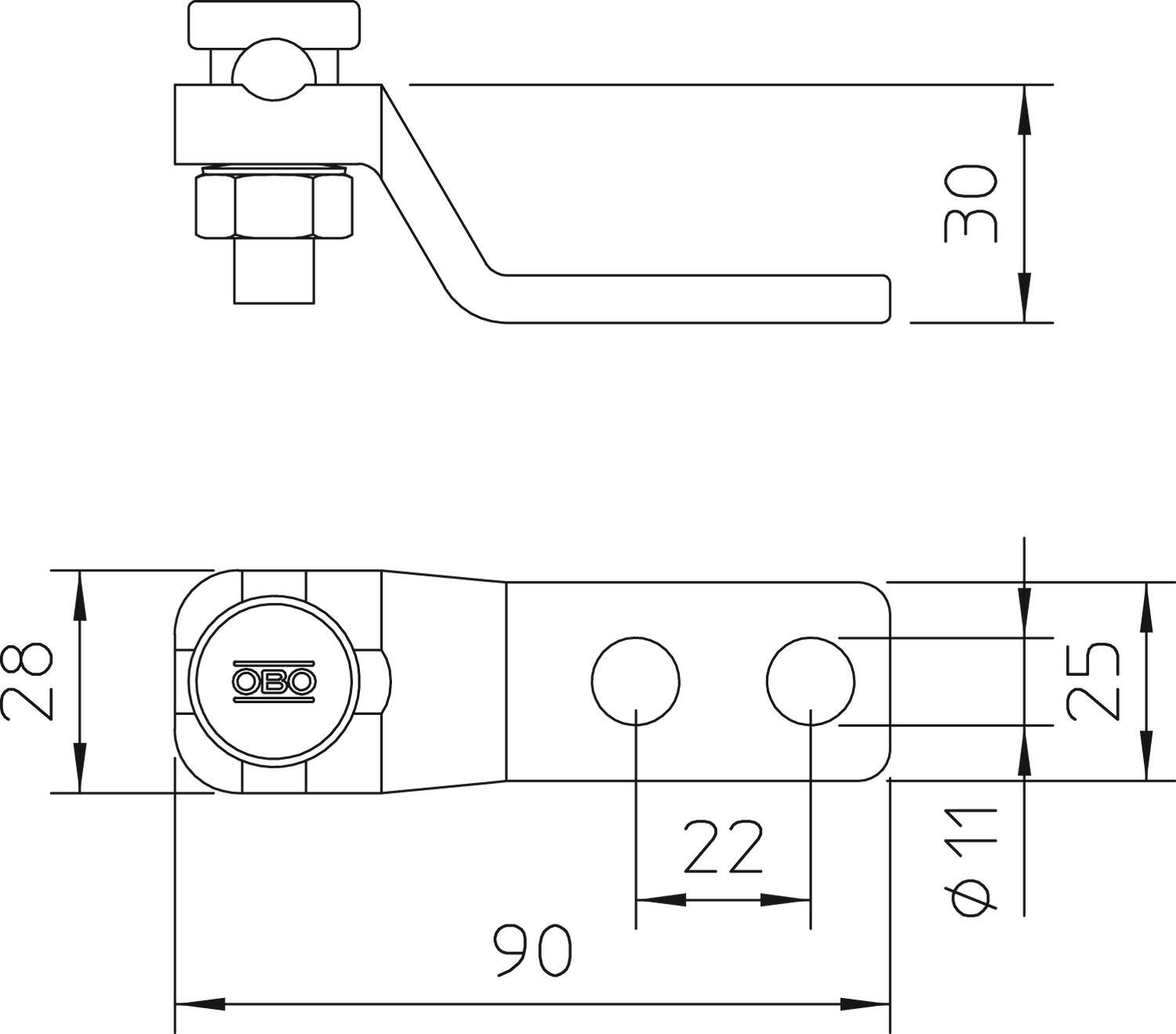

• With 2 attaching holes Ø 11 mm
• Conforms to the requirements according to DIN VDE 0185-305 (IEC 62305)

  • Lightning current-tested
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard
Technical data

Technical data

Dimension 8-10mm
Fit Rd 8-10 mm
Intermediate plate no
Lightning current carrying capacity H/100 kA
Material Cast steel
ROHS-conformant yes
Suitable for connection Miscellaneous
Surface Hot galvanised
Type of connector Connectors
Type of fastening screw Clamping screw

CO2 footprint (Product Carbon Footprint)

CO2 Footprint (GWP) Cradle-to-Gate 0,4656 kg CO2e / 1 Piece
CO₂ Footprint (GWP) 0,4656 kg CO₂e
Declared Unit Units
Declared Unit Quantity 1
Determination date of CO2 value 2025-05-14T00:00:00.000+0200
All types

All types

Types Lightning current carrying capacity Fit Item no. Quantity SSU
5005 DIN-FT H/100 kA Rd 8-10 mm 5304601
10 piece
Downloads

Download

Download
Download
Download

EU declaration of conformity 5005 DIN-FT / 5304601 , 0.06MB , pdf
Download
REACH Declaration of conformity 5005 DIN-FT / 5304601 , 0.12MB , pdf
Download
RoHS Declaration of conformity 5005 DIN-FT / 5304601 , 0.13MB , pdf
Download

Download

5005 DIN-FT / 5304601
