Note: This article is discontinued.
You can find the current article here: 7400992 / Connection shackle, conductive, for EÜK-2

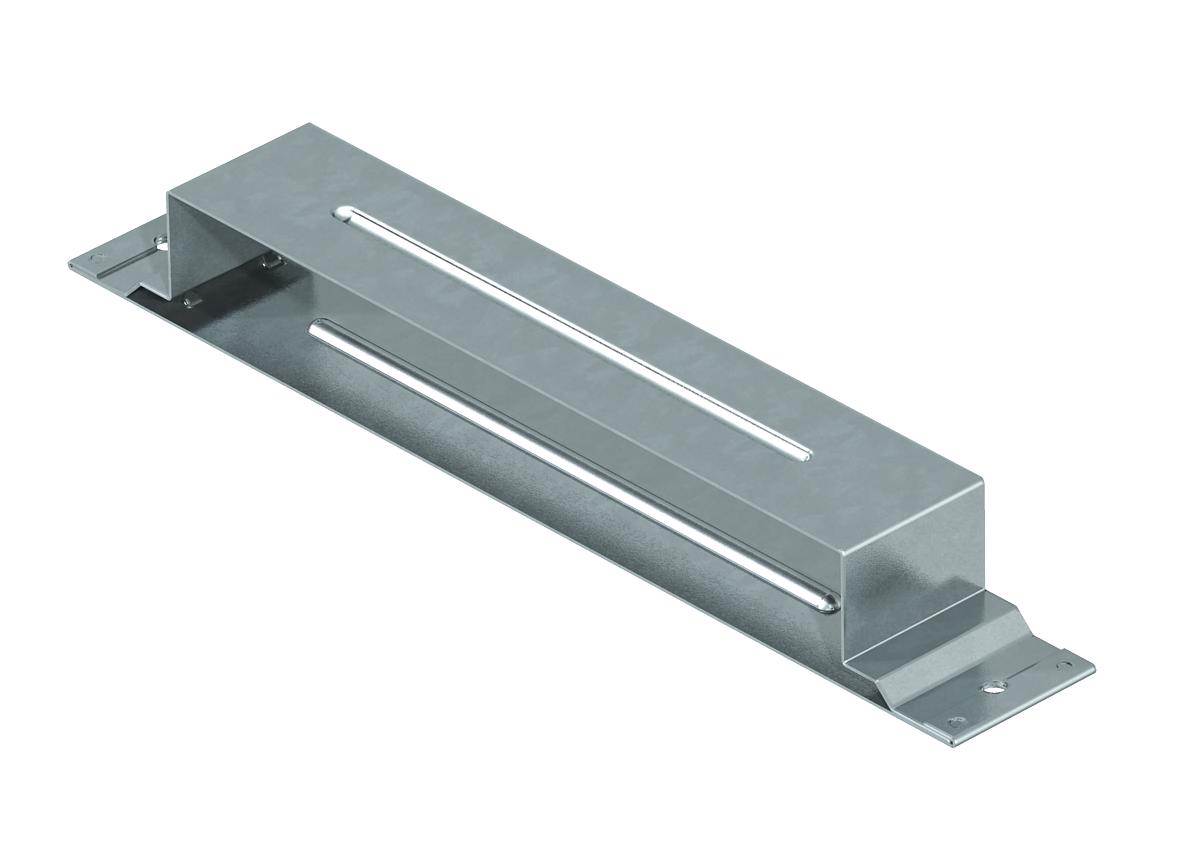

Connection shackle, height 38 mm
Item no. 7400968 | EAN 4012195432944
- Product description
-
Product descriptionDuct connectors for conductive mounting of screed-covered underfloor installation duct.
-
- Technical data
-
Technical data
Dimension 50x250x38 Duct height, min. 38 mm Floor plate yes Material Steel Product series EÜK Trunking system ROHS-conformant yes Seal installation option no Suitable for expansion joint yes Surface Strip galvanised Version for Strap With equipotential bonding yes Dimensions

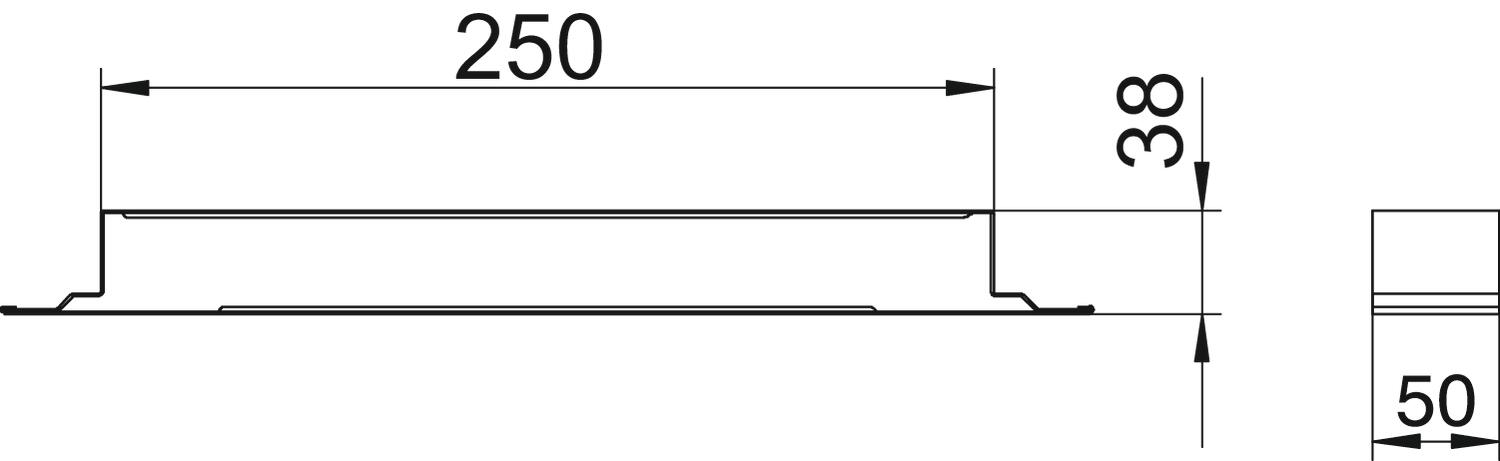

Dimension a 250 mm Dimension h 38 mm Height 38 mm Width 250 mm - All types
- Downloads
-
Data sheet VL 25038E / 7400968 , 0.15MB , pdfEU declaration of conformity VL 25038E / 7400968 , 0.11MB , pdfUK Declaration of Conformity VL 25038E / 7400968 , 0.09MB , pdfREACH Declaration of conformity VL 25038E / 7400968 , 0.12MB , pdfRoHS Declaration of conformity VL 25038E / 7400968 , 0.13MB , pdfLabel approval VDE symbol approval, EÜK , 0.12MB , pdfMounting instructions EÜK screed-covered duct system generation 3 , 76.05MB , pdfNo invitation to tender text is available for this product.
