Note: This article is discontinued.
You can find the current article here: 7400996 / Connection shackle, conductive, for EÜK-2

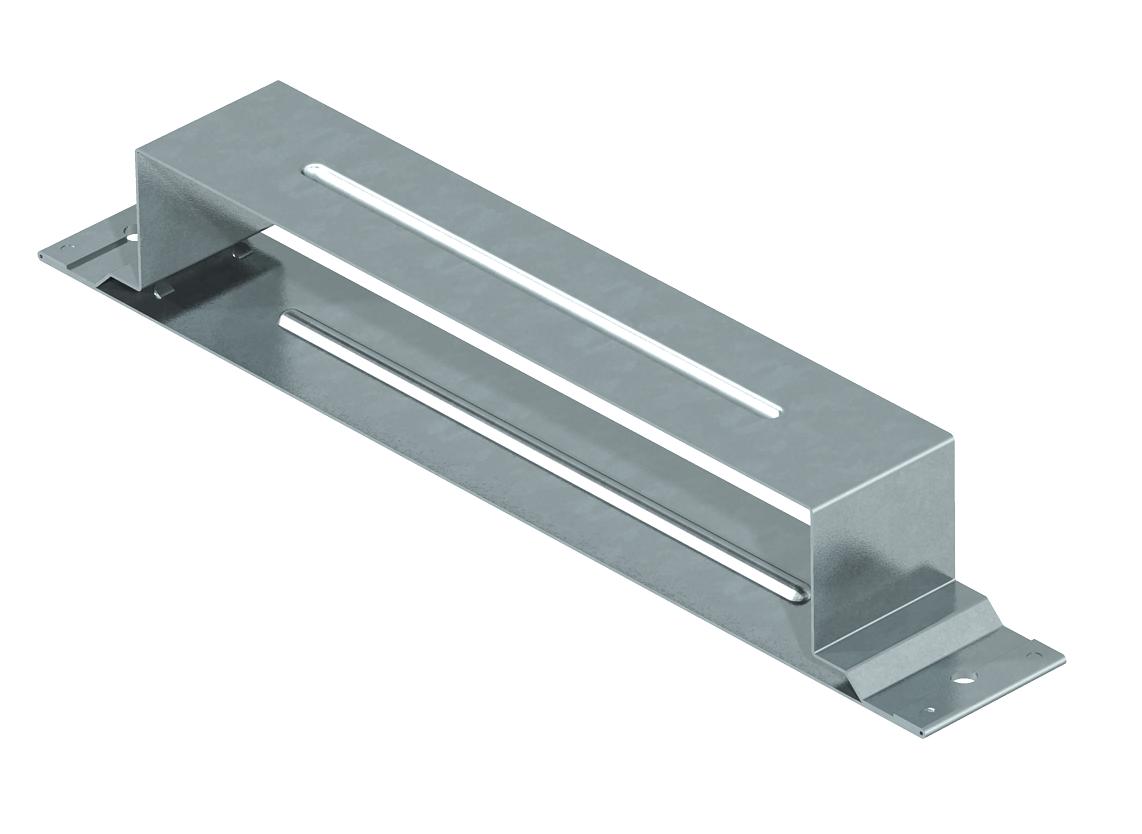

Connection shackle, height 48 mm
Item no. 7400976 | EAN 4012195433019
- Product description
-
Product descriptionDuct connectors for conductive mounting of screed-covered underfloor installation duct.
-
- Technical data
-
Technical data
Dimension 50x350x48 Duct height, min. 48 mm Floor plate yes Material Steel Product series EÜK Trunking system ROHS-conformant yes Seal installation option no Suitable for expansion joint yes Surface Strip galvanised Version for Strap With equipotential bonding yes Dimensions

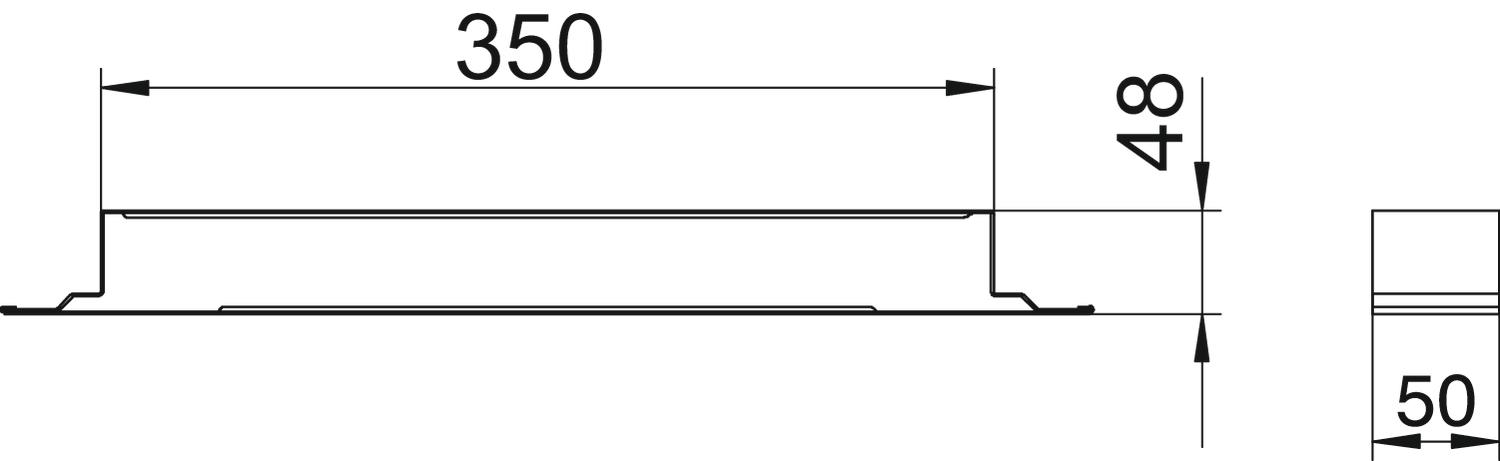

Dimension a 350 mm Dimension h 48 mm Height 48 mm Width 350 mm - All types
- Downloads
-
Data sheet VL 35048E / 7400976 , 0.15MB , pdfEU declaration of conformity VL 35048E / 7400976 , 0.11MB , pdfREACH Declaration of conformity VL 35048E / 7400976 , 0.12MB , pdfRoHS Declaration of conformity VL 35048E / 7400976 , 0.13MB , pdfLabel approval VDE symbol approval, EÜK , 0.12MB , pdfMounting instructions EÜK screed-covered duct system generation 3 , 76.05MB , pdfNo invitation to tender text is available for this product.
