Connection terminal for round conductors
Item no. 5012015 | EAN 4012195377719
- Product description
-

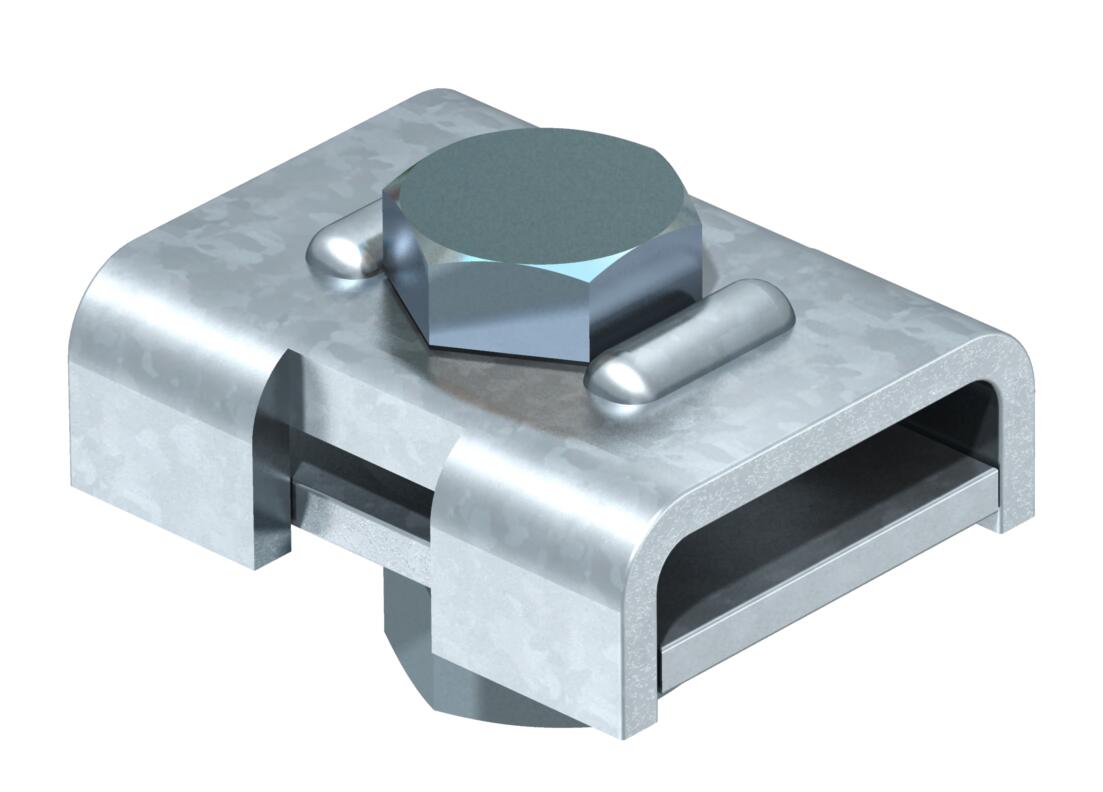

Product description• For connecting round conductor Rd 8-10
• With 1 hexagonal bolt M12 x 40, 1 hexagonal nut M12 and 1 lock washer, stainless steel
-
- Technical data
-
Technical data

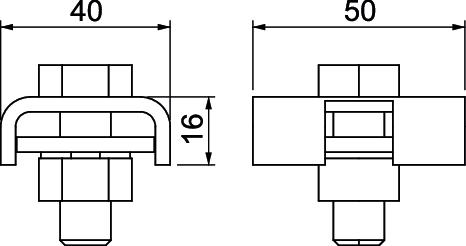

Dimension 50x40x16 Fit Rd 8-10 mm Lightning current carrying capacity N/50 kA Material Steel Surface Hot-dip galvanised Type of connector Connectors Type of fastening screw Hexagonal bolt CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 0,4557 kg CO2e / 1 Piece CO₂ Footprint (GWP) 0,4557 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
- Downloads
-
Data sheet 1818 / 5012015 , 0.14MB , pdfEU declaration of conformity 1818 / 5012015 , 0.06MB , pdfREACH Declaration of conformity 1818 / 5012015 , 0.12MB , pdfRoHS Declaration of conformity 1818 / 5012015 , 0.12MB , pdf
