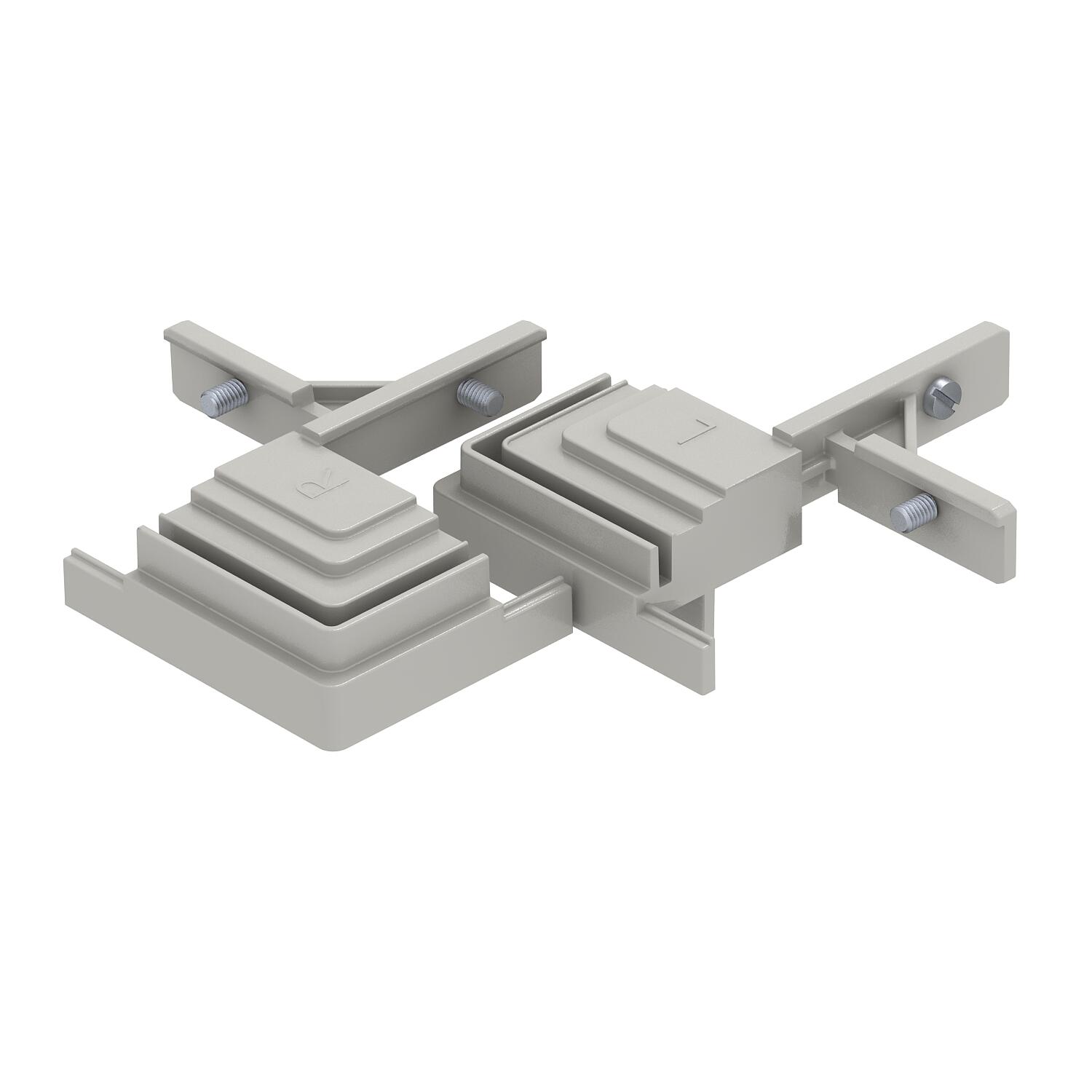

Construction set for trunking T branch and intersection
Item no. 7424821 | EAN 4012195651574
- Product description
-
Product descriptionFor the construction-side creation of a trunking junction as a 90° angle, T-piece or crossing. A flushfloor end cover is also required for the creation of a 90° angle (order separately). Suitable for the OKA-G and OKA-W trunking systems.
-
- Technical data
-
Technical data
Cover fastening, locking no Decouplable no Floor plate no Function Branch Installation opening for on-floor tank no Material Die-cast zinc Minimum screed height 40 Mounting opening cover no Removable cover no Seal installation option no Suitable for expansion joint no Suitable for flushfloor, open underfloor trunking no Suitable for screed-covered underfloor ducts no Suitable for screed-flush closed underfloor ducts no With connection opening no With equipotential bonding no With overhang yes With separating retainer no Dimensions
Height 36 mm Length 87 mm Width 87 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 1,2272 kg CO2e / 1 Piece CO₂ Footprint (GWP) 1,2272 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
- Downloads
-
Data sheet OKA FB2 TX / 7424821 , 0.16MB , pdfEU declaration of conformity OKA FB2 TX / 7424821 , 0.11MB , pdfREACH Declaration of conformity OKA FB2 TX / 7424821 , 0.12MB , pdfRoHS Declaration of conformity OKA FB2 TX / 7424821 , 0.13MB , pdfLabel approval VDE symbol approval, OKA , 0.18MB , pdfMounting instructions Mounting instructions, screed-flush duct systems OKA-G and OKA-W , 3.48MB , pdfMounting instructions Mounting instructions, OKA FB , 0.11MB , pdfNo invitation to tender text is available for this product.
