Corner extension piece 110 FS
Item no. 6098475 | EAN 4012195242512
- Product description
-

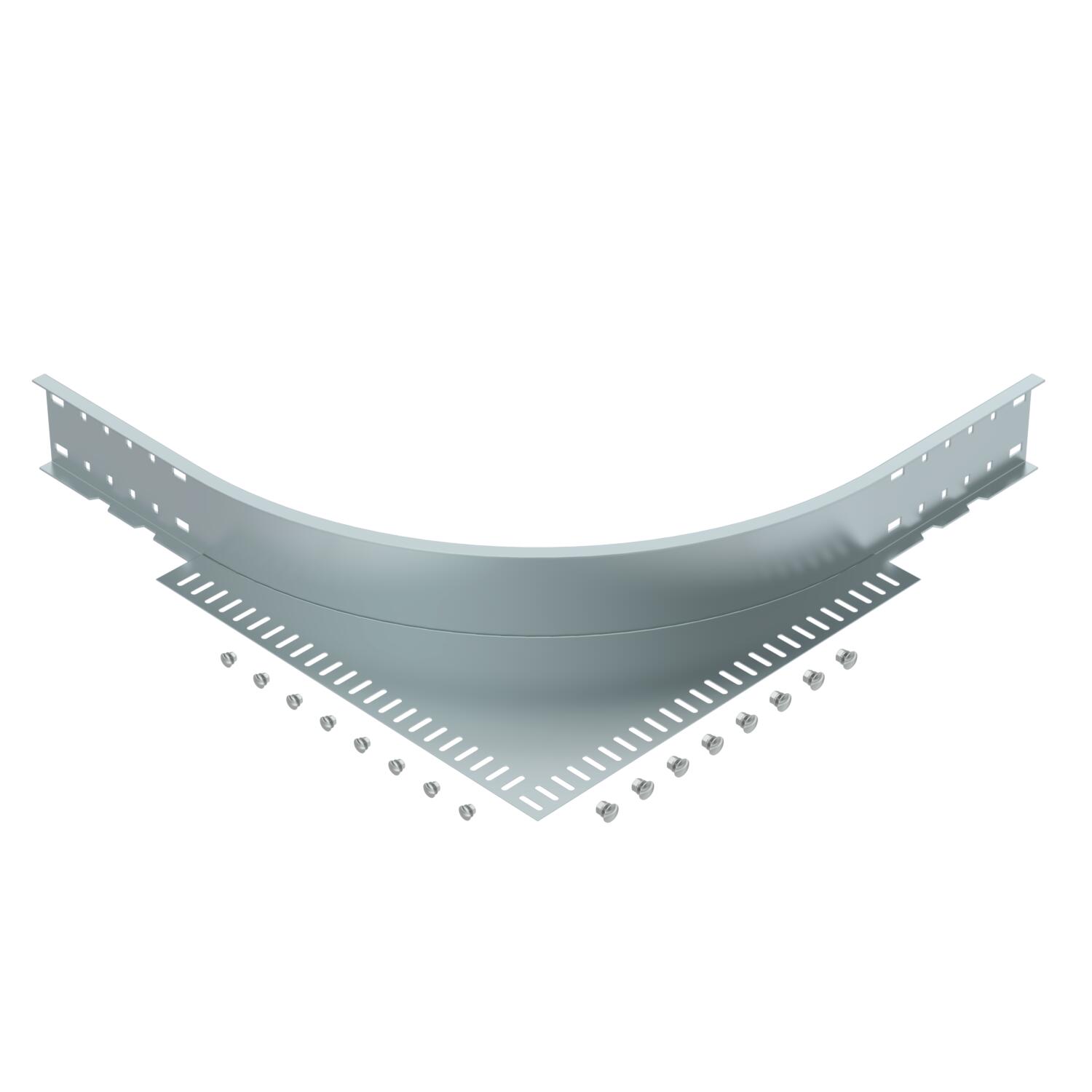

Product descriptionCorner extension piece for wide span cable trays and ladders with a side height of 110 mm. Including fastening material.
-
- Technical data
-
Technical data
Colour zinc Dimension 110 Maintain electrical functions no Material Steel ROHS-conformant yes Rustproof steel, pickled no Surface Strip galvanised Type of connector, cable support system Screwed Dimensions

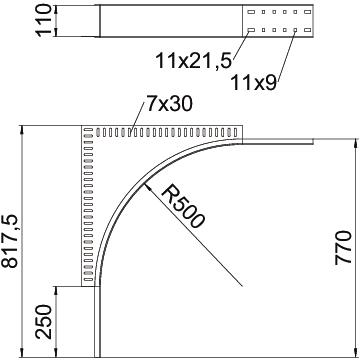

Dimension h 110 mm Height 110 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 14,6471 kg CO2e / 1 Piece CO₂ Footprint (GWP) 14,6471 kg CO₂e Declared Unit Units Declared Unit Quantity 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
- Downloads
-
Data sheet WEAS 110 FS / 6098475 , 0.17MB , pdfEU declaration of conformity WEAS 110 FS / 6098475 , 0.11MB , pdfUK Declaration of Conformity WEAS 110 FS / 6098475 , 0.09MB , pdfREACH Declaration of conformity WEAS 110 FS / 6098475 , 0.12MB , pdfRoHS Declaration of conformity WEAS 110 FS / 6098475 , 0.12MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
