Cover, angle-adjustable bend A4
Item no. 6037582 | EAN 4012197407971
- Product description
-

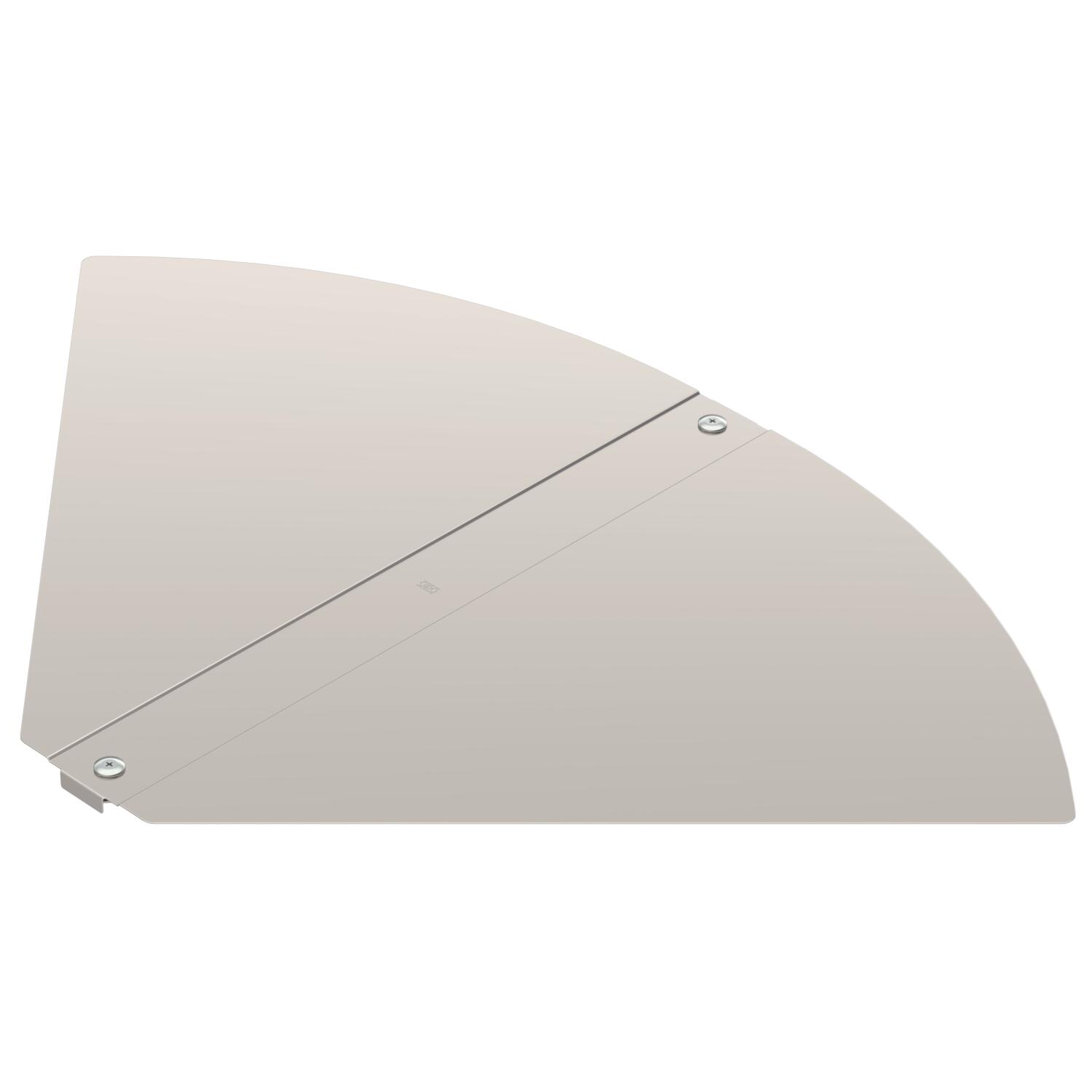

Product descriptionCover for angle-adjustable bend fitting for lockable and screw-on cable trays in indoor and outdoor areas, to protect cables against damage and soiling. Fastening with pre-mounted sash locks and through attachment of the section cover. Suitable for all side heights.
-
- Technical data
-
Technical data
Bend (angle) Adjustable Change of direction Horizontal Colour stainless steel Dimension B600mm Fastening type Sash lock Hinged no Maintain electrical functions no Material Stainless steel 1.4571 Number of turn buckles 2 St. Permitted temperature range, max. 120 °C Permitted temperature range, min. -20 °C Plate thickness 1 mm Rustproof steel, pickled no Suitable for cable ladder no Suitable for cable tray yes Suitable for mesh cable tray no Surface Bright, treated Dimensions

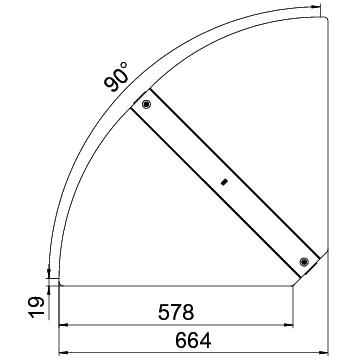

Dimension B 600 mm Width 600 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 25,5342 kg CO2e / 1 Piece CO₂ Footprint (GWP) 25,5342 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
- Downloads
-
Data sheet RBD W 600 A4 / 6037582 , 0.18MB , pdfEU declaration of conformity RBD W 600 A4 / 6037582 , 0.11MB , pdfUK Declaration of Conformity RBD W 600 A4 / 6037582 , 0.09MB , pdfREACH Declaration of conformity RBD W 600 A4 / 6037582 , 0.12MB , pdfRoHS Declaration of conformity RBD W 600 A4 / 6037582 , 0.13MB , pdfMounting instructions Latchable Magic cable tray systems , 12.24MB , pdfMounting instructions General information on the mounting , 2.65MB , pdfMounting instructions Screwable cable trays with fittings for screwing and clamping , 5.98MB , pdf
