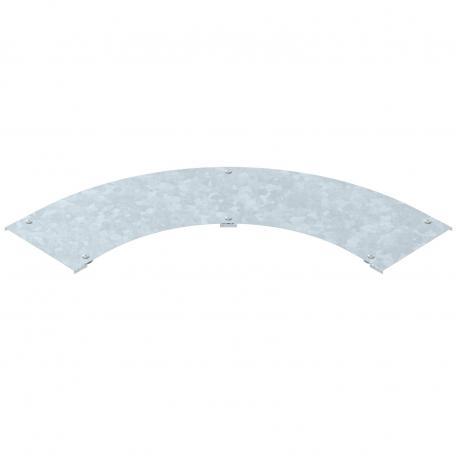

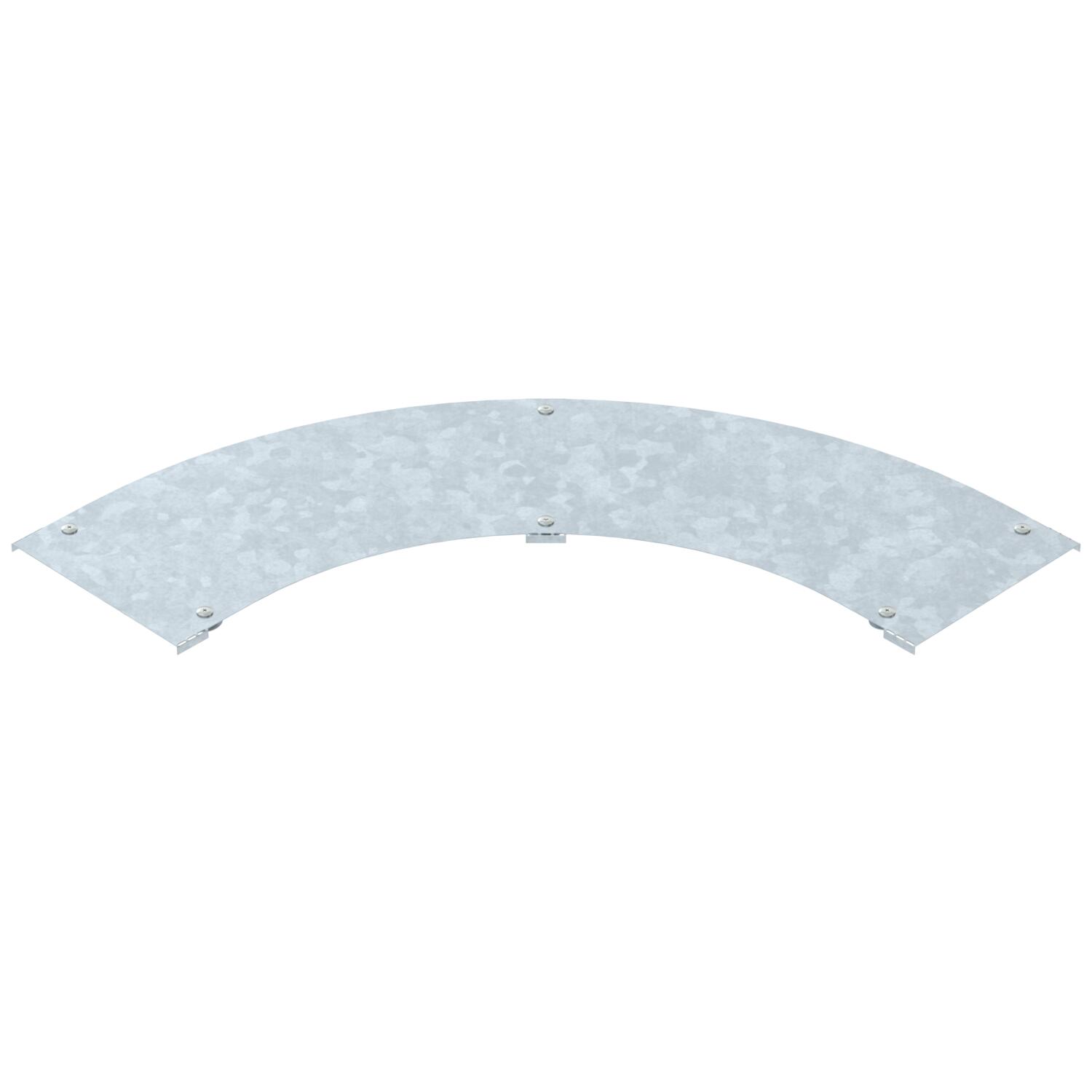

Cover for 90° bend FT
Item no. 6239263 | EAN 4012196882656
- Product description
-
Product descriptionCover with turn buckles for covering 90° cable ladder bends.
-
- Technical data
-
Technical data
Bend (angle) 90° Change of direction Horizontal Colour zinc Dimension B300mm Fastening type Sash lock Hinged no Maintain electrical functions no Material Steel Plate thickness 1,5 mm ROHS-conformant yes Rustproof steel, pickled no Suitable for cable ladder yes Suitable for cable tray no Suitable for mesh cable tray no Surface Hot-dip galvanised Dimensions

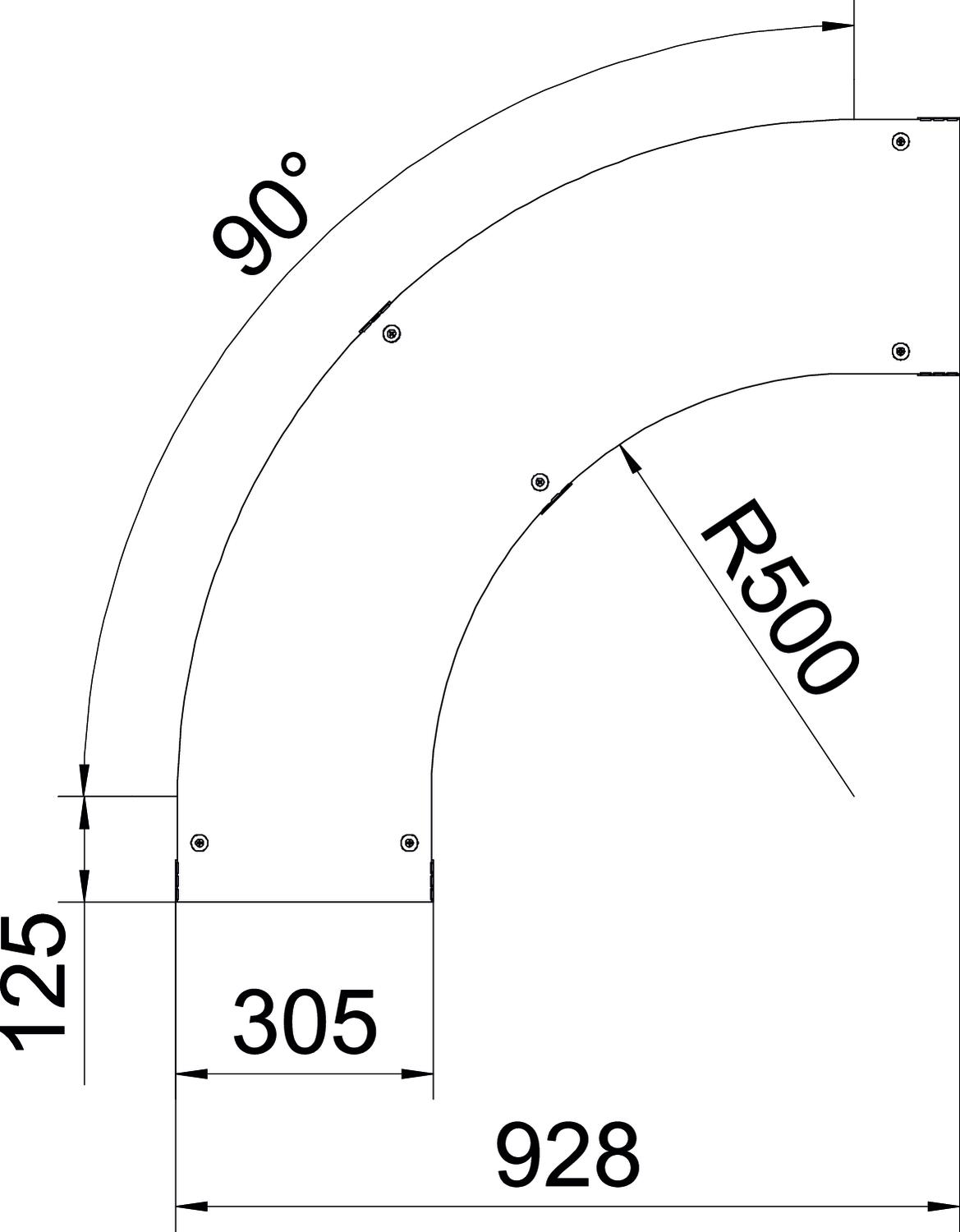

Dimension B 300 mm Dimension R 500 mm Width 300 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 17,4983 kg CO2e / 1 Piece CO₂ Footprint (GWP) 17,4983 kg CO₂e Declared Unit Units Declared Unit Quantity 1 Determination date of CO2 value 2025-05-27T00:00:00.000+0200 - All types
- Downloads
-
Data sheet BD 90 300 R5 FT / 6239263 , 0.16MB , pdfEU declaration of conformity BD 90 300 R5 FT / 6239263 , 0.10MB , pdfUK Declaration of Conformity BD 90 300 R5 FT / 6239263 , 0.09MB , pdfREACH Declaration of conformity BD 90 300 R5 FT / 6239263 , 0.12MB , pdfRoHS Declaration of conformity BD 90 300 R5 FT / 6239263 , 0.12MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
