Cover, for device installation trunking Rapid 45-2
Item no. 6113010 | EAN 4012196419081
- Product description
-

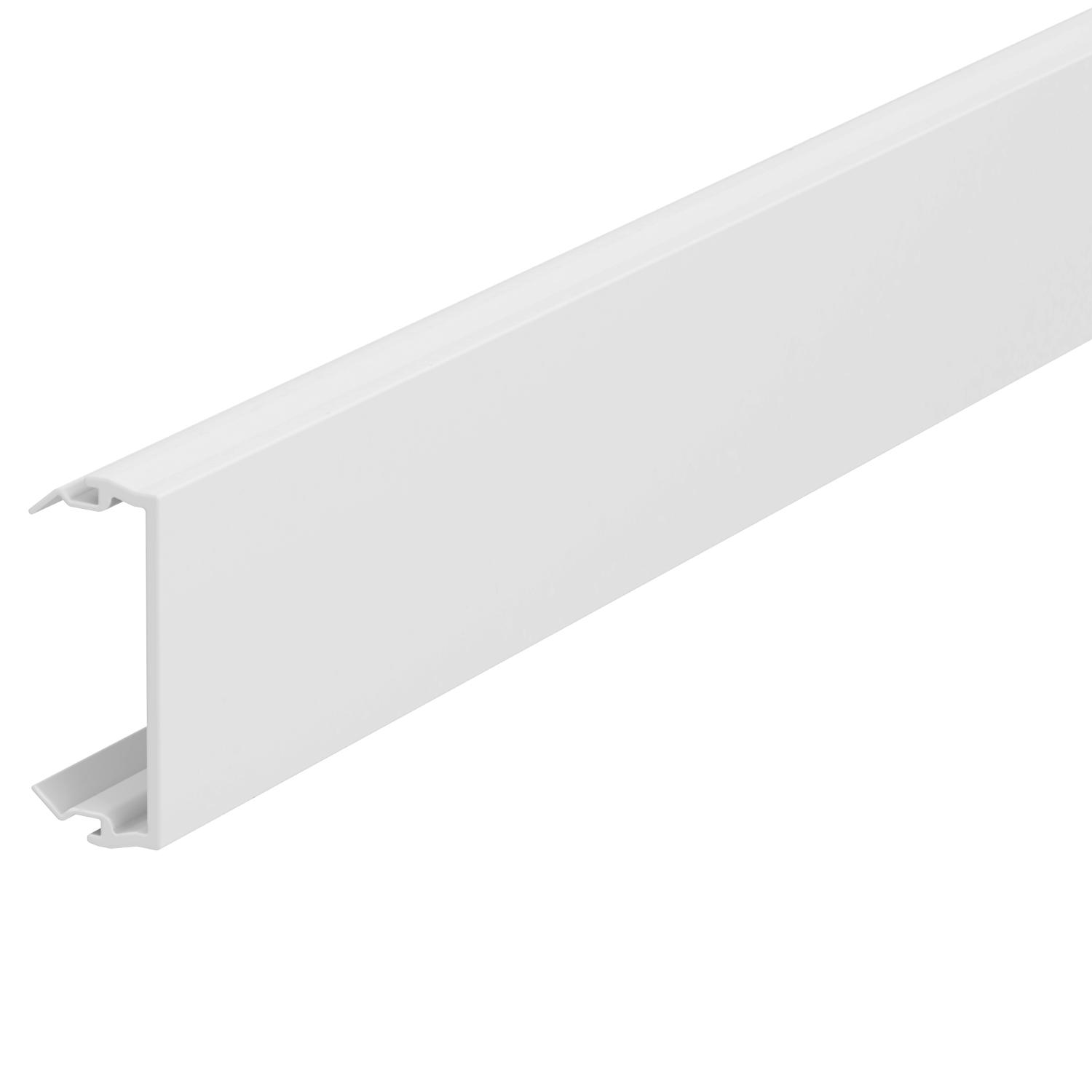

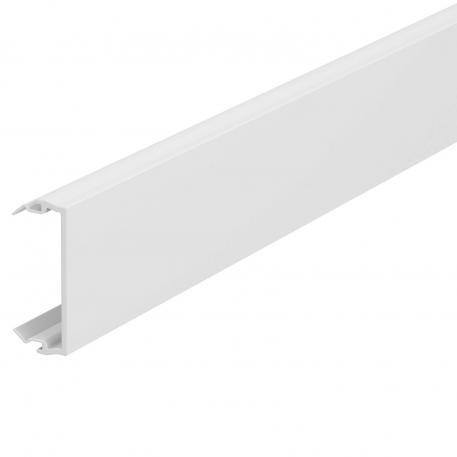

Product descriptionTrunking cover for closing the Rapid 45-2 device installation trunking.
-
- Technical data
-
Technical data
Antibacterial treatment no Colour Pure white; RAL 9010 Cover mounting type Internal Dimension 45x2000 Halogen-free no Material Polyvinylchloride Permitted temperature range, max. 60 °C Permitted temperature range, min. -15 °C Product series Rapid 45® Protection rating IP40 Protection rating IK code IK08 Protective film yes ROHS-conformant yes Version for Smooth Dimensions

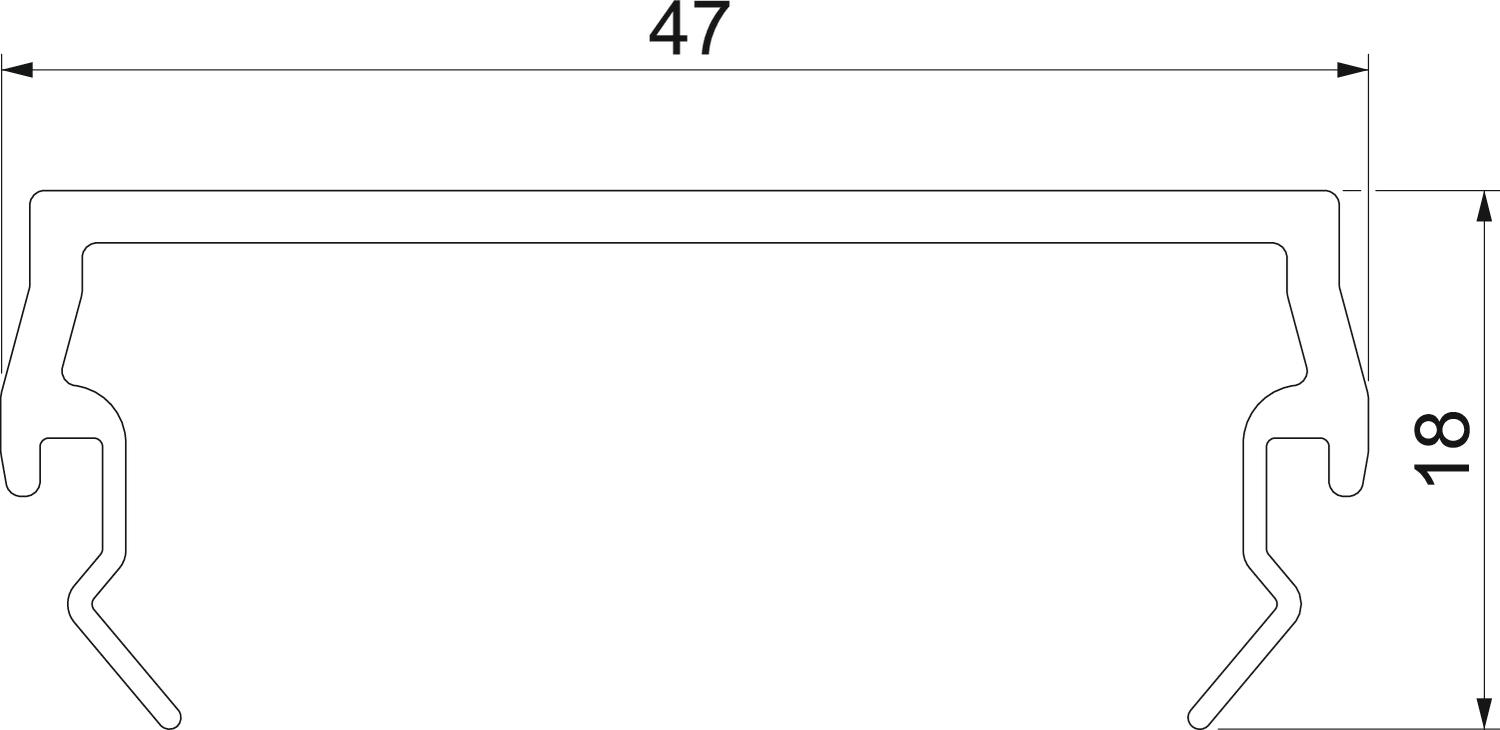

Height 19 mm Length 2000 mm Width 45 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 0,4485 kg CO2e / 1 Meter CO₂ Footprint (GWP) 0,4485 kg CO₂e Declared Unit Metres Declared Unit Quantity 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
- Downloads
-
Data sheet GK-OT45RW / 6113010 , 0.15MB , pdfEU declaration of conformity GK-OT45RW / 6113010 , 0.10MB , pdfUK Declaration of Conformity GK-OT45RW / 6113010 , 0.09MB , pdfREACH Declaration of conformity GK-OT45RW / 6113010 , 0.09MB , pdfRoHS Declaration of conformity GK-OT45RW / 6113010 , 0.13MB , pdfLabel approval VDE symbol approval Rapid45-2 GKH , 0.31MB , pdfMounting instructions Geräteeinbaukanal Rapid 45-2® , 2.65MB , pdfNo invitation to tender text is available for this product.
