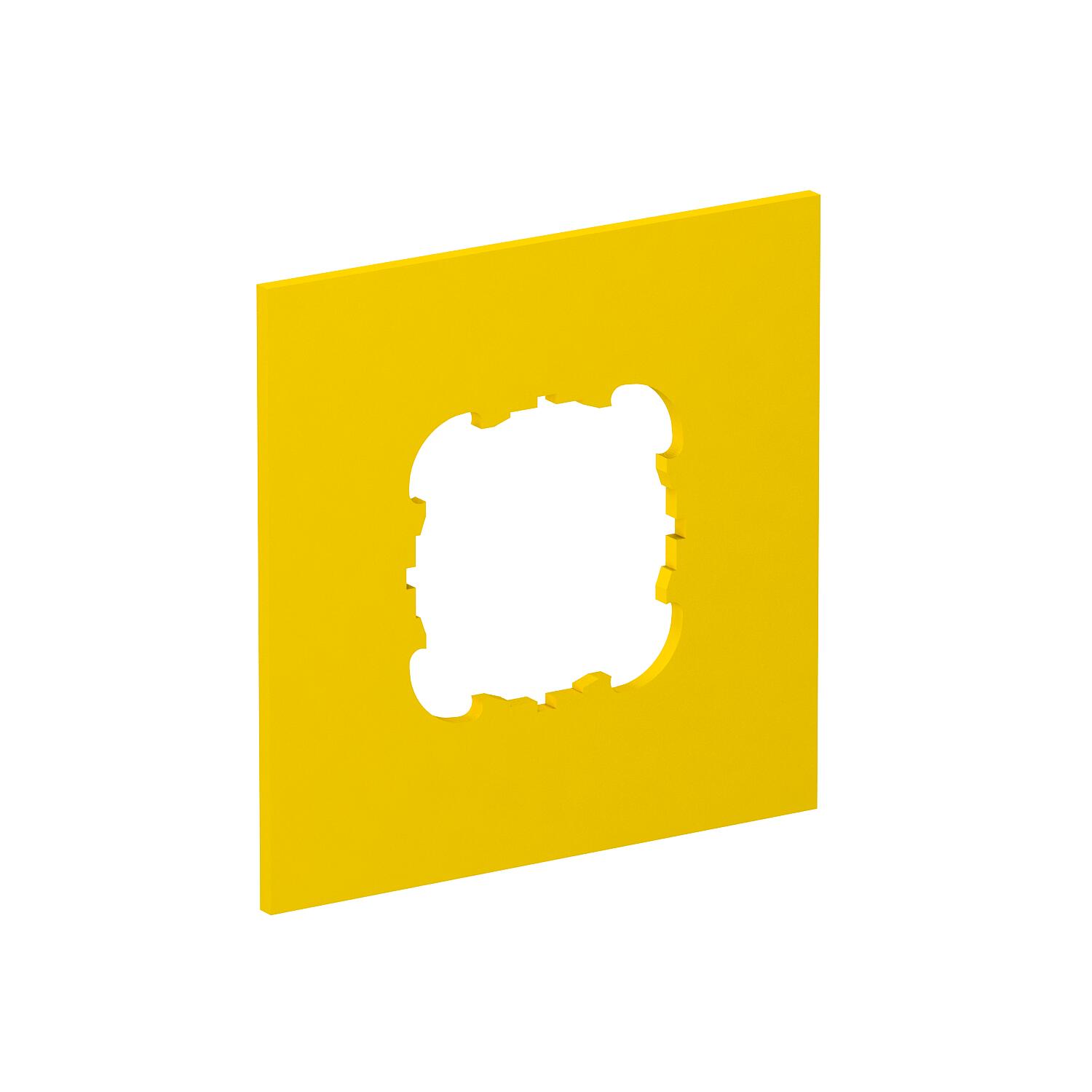

Cover plate VH, for EK and EKR devices
Item no. 6109834 | EAN 4012195125273
- Product description
-

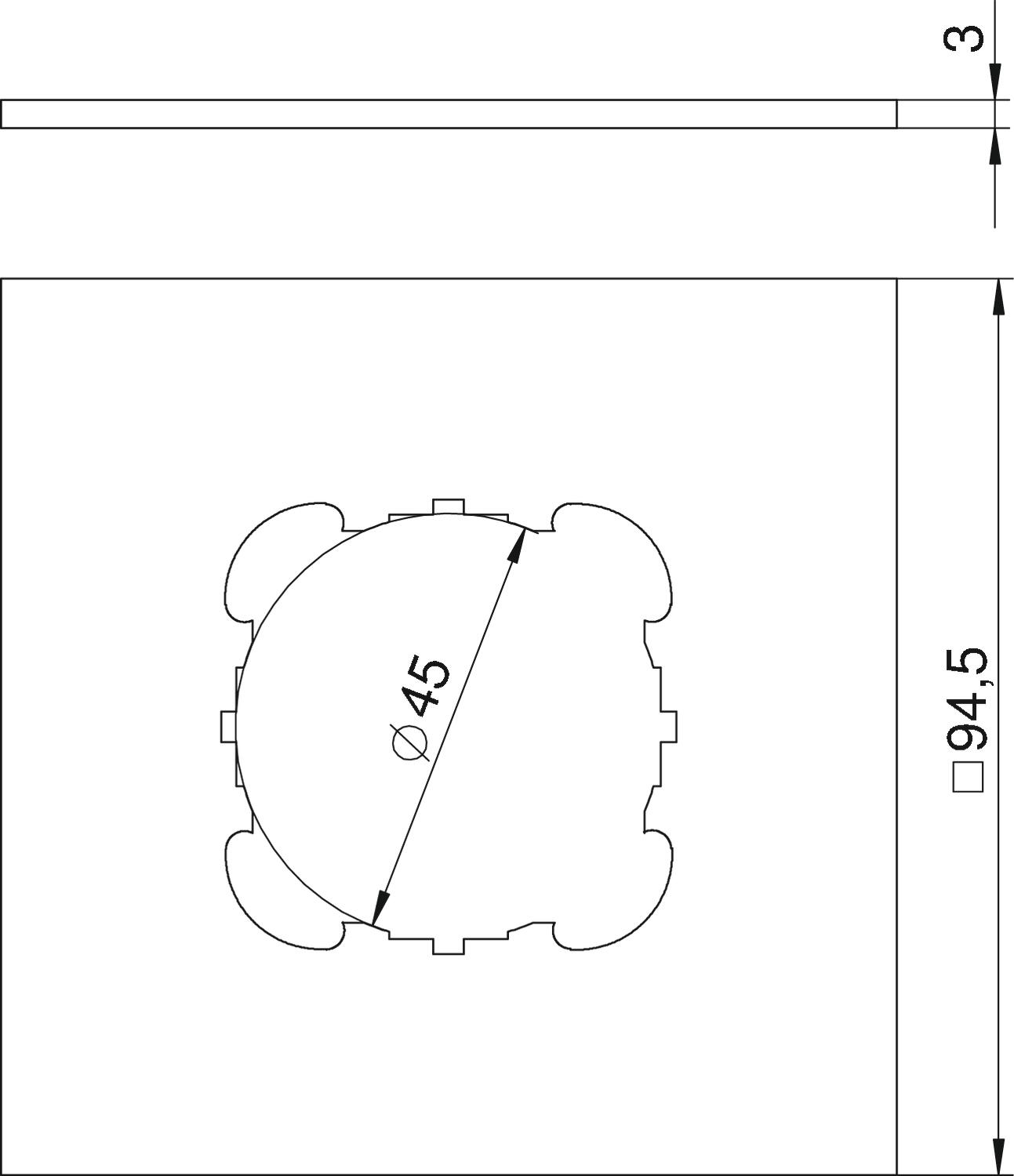

Product descriptionCover plate with opening Ø 45 mm for the installation of a device with concealed support ring or support clamp.
-
- Technical data
-
Technical data
Blanking lid no CO2 Footprint (GWP) Cradle-to-Gate 0,1064 kg CO2e / 1 Piece Colour Rape yellow; RAL 1021 CO₂ Footprint (GWP) 0,1064 kg CO₂e Declared Unit (LCA) Units Determination date of CO2 value 2025-05-14T00:00:00.000+0200 Dimension 95x95mm Fastening type Screw-on Halogen-free yes Height 94,5 mm Installation technology Miscellaneous Material Polyamide Number of units 1 Opening shape Rectangular Protection rating IP20 Width 94,5 mm - All types
- Downloads
-
Data sheet VH-P2 / 6109834 , 0.16MB , pdfCatalogue Installation systems , 28.45MB , pdfREACH Declaration of conformity VH-P2 / 6109834 , 0.12MB , pdfRoHS Declaration of conformity VH-P2 / 6109834 , 0.12MB , pdf
