Cover plate VHF for protective equipment installation
Item no. 6109867 | EAN 4012195125525
- Product description
-

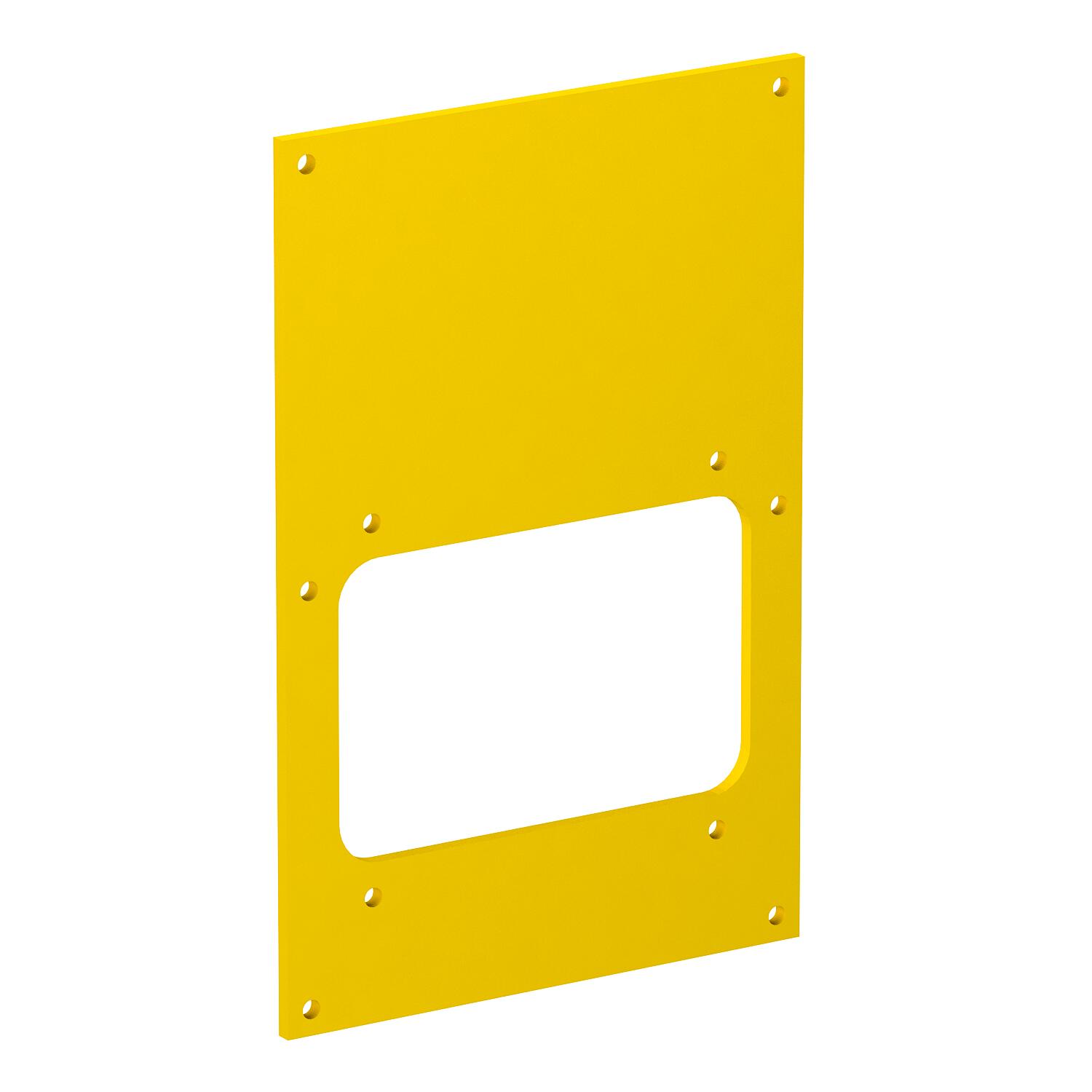

Product descriptionCover plate with cut-out for the installation of a cover above protection unit (type VHF-AE4TE). Maximum equipment corresponds to four units.
Cover plate for the VHF power supply units for the installation of a cover above protection unit (type VHF-AE4TE). Maximum equipment corresponds to four units.
-
- Technical data
-
Technical data

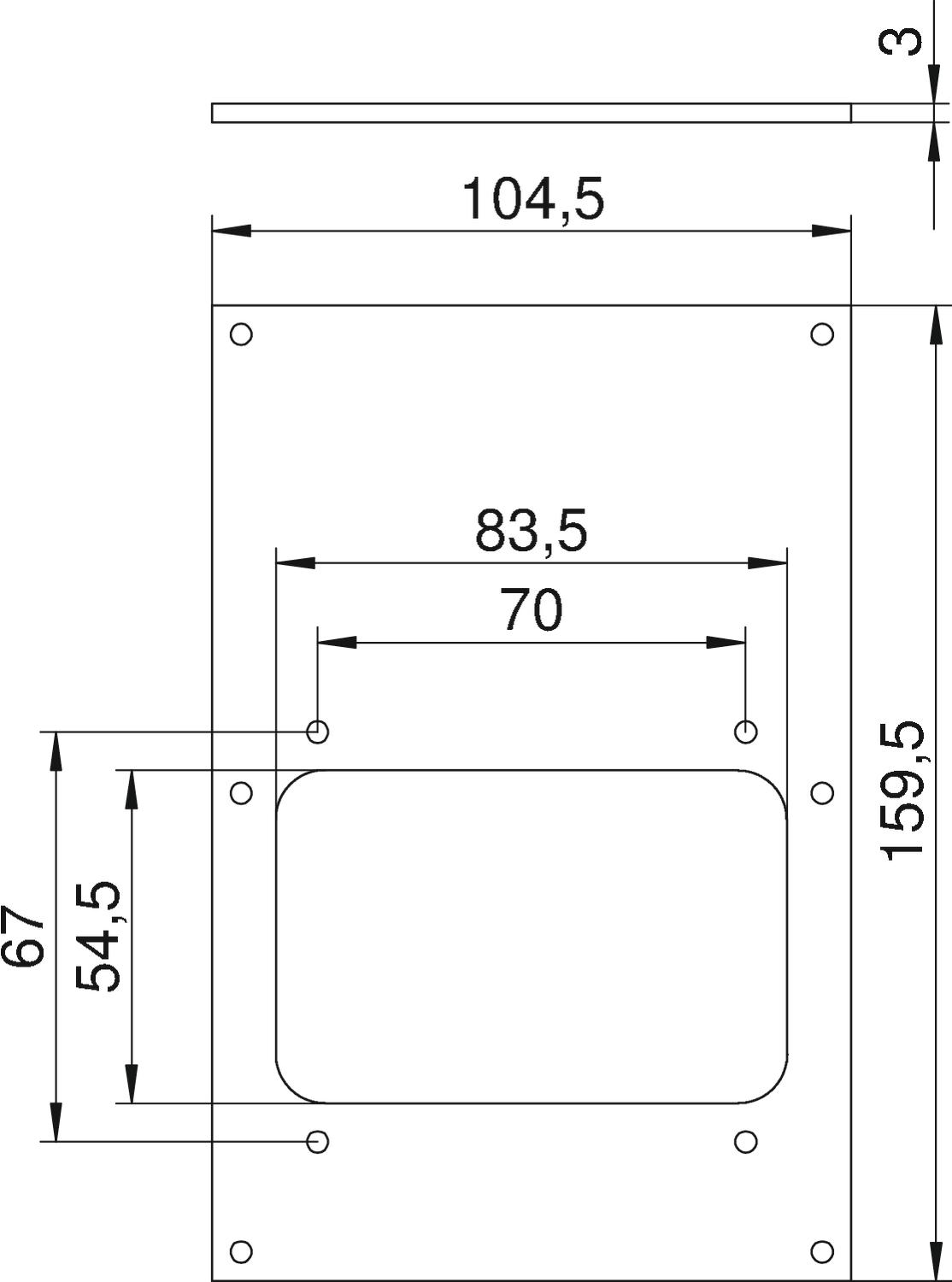

Blanking lid no Colour Rape yellow; RAL 1021 Dimension 160x105mm Fastening type Screw-on Halogen-free no Installation technology Support clamp Material Polyvinylchloride Number of units 1 Opening shape Rectangular Protection rating IP44 Dimensions
Height 159,5 mm Width 104,5 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 0,213 kg CO2e / 1 Piece CO₂ Footprint (GWP) 0,213 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
- Downloads
-
Data sheet VHF-P6 / 6109867 , 0.16MB , pdfCatalogue Installation systems , 28.45MB , pdfREACH Declaration of conformity VHF-P6 / 6109867 , 0.12MB , pdfRoHS Declaration of conformity VHF-P6 / 6109867 , 0.13MB , pdf
