Cover, unperforated FT

Item no. 6052002 | EAN 4012196606030

Item no. / Types

Length	3000 mm

Width

Plate thickness

Product description

Product description

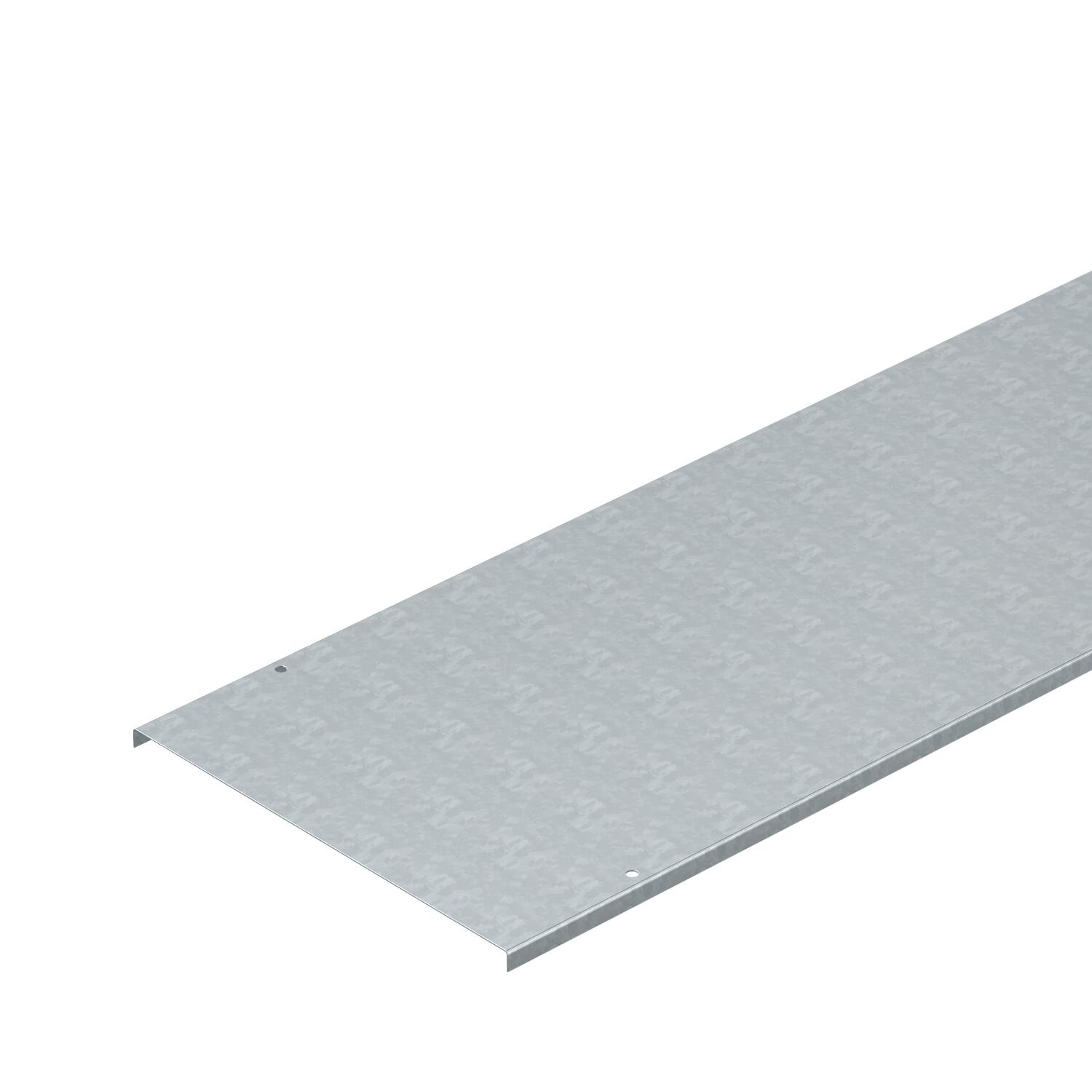

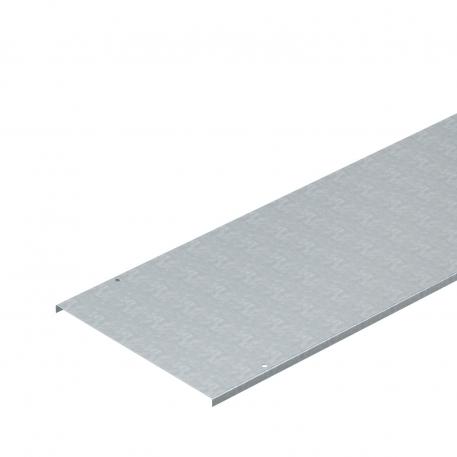

Unperforated cover for cable trays and cable ladders in indoor and outdoor areas, for the protection of the cables against damage and dirt. Fastening with cover clamp. When the cover is used under the impact of wind, suction or pressure, additional securing measures must be carried out.

Technical data

Technical data

Colour	zinc
Dimension	100x3000
Dimension B	100 mm
Fastening type	Cover clamp
Length	3000 mm
Maintain electrical functions	no
Material	Steel

Plate thickness	0,7 mm
Rustproof steel, pickled	no
Suitable for cable ladder	yes
Suitable for cable tray	yes
Suitable for mesh cable tray	yes
Surface	Hot-dip galvanised
Width	100 mm

All types

All types

Types	Length	Width	Plate thickness	Item no.	Quantity	SSU
DRLU 050 FT	3000 mm	50 mm	0.7 mm	6052000	m	3 m
DRLU 100 FT	3000 mm	100 mm	0.7 mm	6052002	m	3 m
DRLU 200 FT	3000 mm	200 mm	0.7 mm	6052004	m	3 m
DRLU 300 FT	3000 mm	300 mm	0.7 mm	6052006	m	3 m
DRLU 400 FT	3000 mm	400 mm	0.9 mm	6052008	m	3 m
DRLU 500 FT	3000 mm	500 mm	0.9 mm	6052010	m	3 m
DRLU 600 FT	3000 mm	600 mm	0.9 mm	6052012	m	3 m
