Cover with turn buckle FT 3000 | 600 | 1.5

Cover with turn buckle FT

Item no. 6051472 | EAN 4012196595631

Item no. / Types

Length	3000 mm

Width

Plate thickness

Product description

Product description

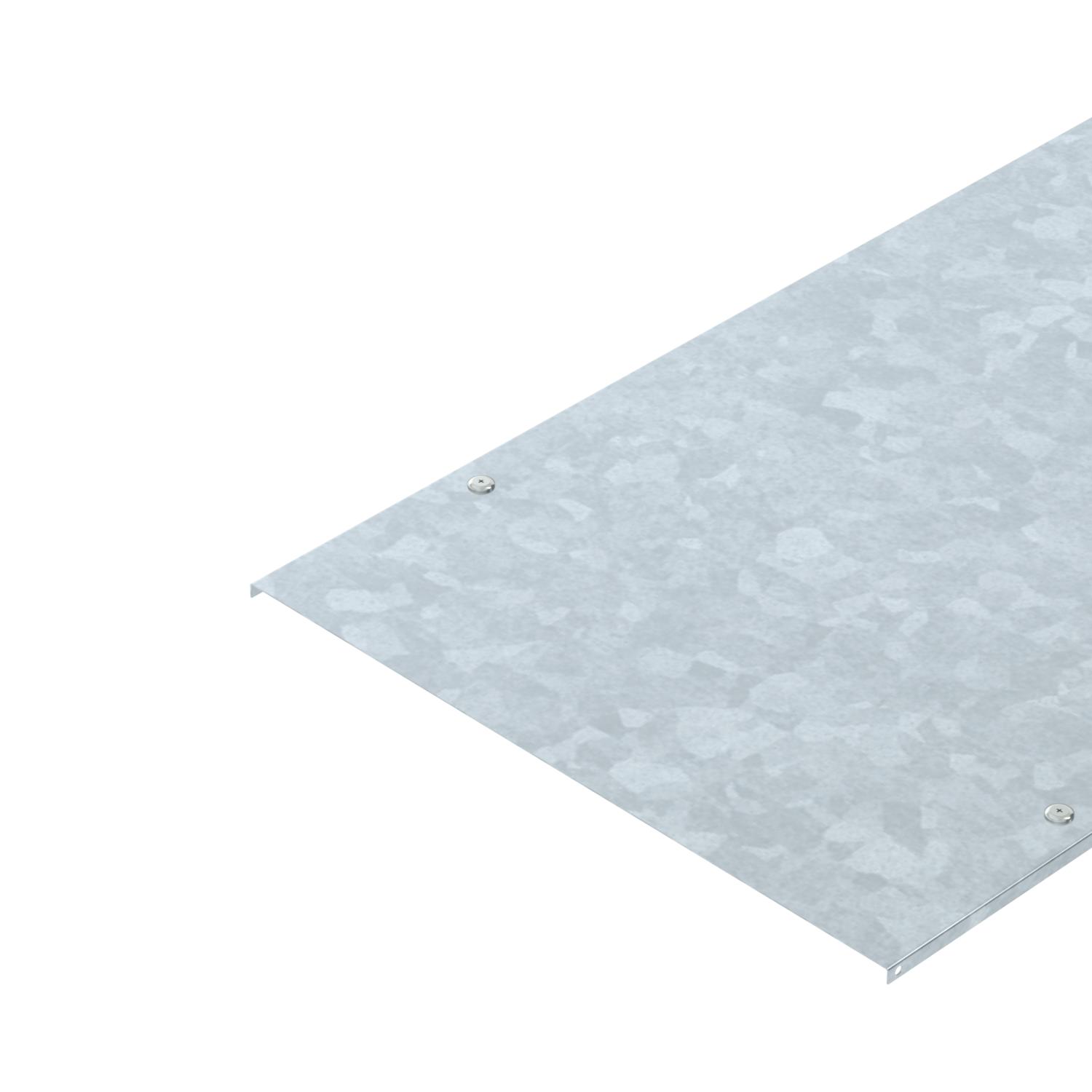

Cover for cable trays and cable ladders with three pairs of turn buckles.
When using covers outdoors, additional measures against the influence of wind must be taken.

Technical data

Technical data

Colour	zinc
Dimension	600x3000
Dimension B	600 mm
Fastening type	Sash lock
Height	13 mm
Length	3000 mm
Length	10 ft
Maintain electrical functions	no
Material	Steel

Plate thickness	0,06 in
Plate thickness	1,5 mm
Rustproof steel, pickled	no
Suitable for cable ladder	yes
Suitable for cable tray	yes
Suitable for mesh cable tray	no
Surface	Hot-dip galvanised
Width	24 in
Width	600 mm

All types

All types

Types	Length	Width	Plate thickness	Item no.	Quantity	SSU
DRL 100 FT	3000 mm	100 mm	1 mm	6051340	m	3 m
DRL 150 FT	3000 mm	150 mm	1 mm	6051359	m	3 m
DRL 200 FT	3000 mm	200 mm	1 mm	6051367	m	3 m
DRL 300 FT	3000 mm	300 mm	1 mm	6051383	m	3 m
DRL 400 FT	3000 mm	400 mm	1.5 mm	6051413	m	3 m
DRL 500 FT	3000 mm	500 mm	1.5 mm	6051448	m	3 m
DRL 600 FT	3000 mm	600 mm	1.5 mm	6051472	m	3 m
