Note: This article is discontinued.

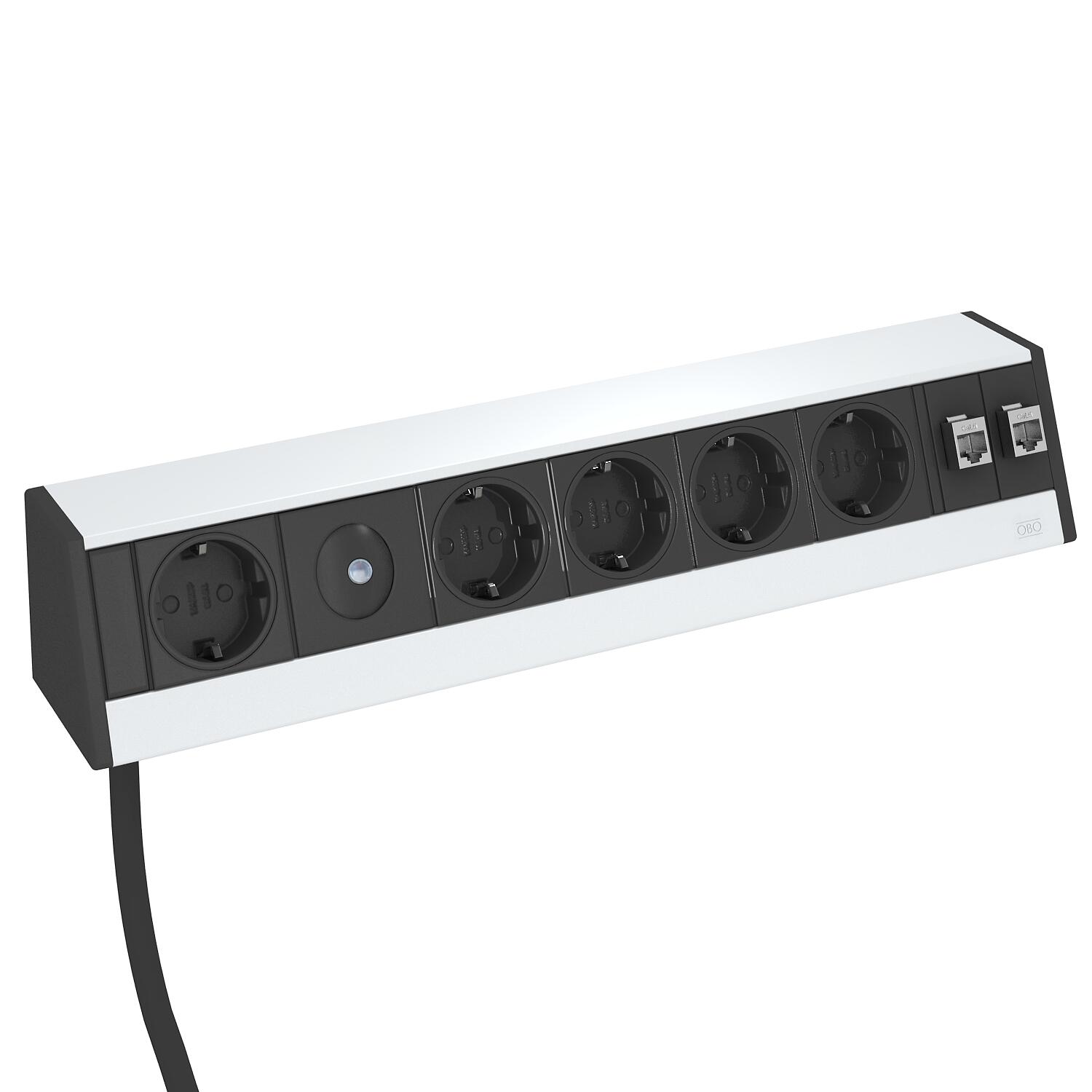

Deskbox DB, without fastening material, 1+4 switched sockets, 2x RJ45 Cat. 6
Item no. 6116957 | EAN 4012195714293
- Product description
-
Product descriptionDeskbox with connection cable, cable outlet at the bottom of the profile, without fastening material, combinable with the fastening solutions listed in the accessories.
Equipment:
- Five black protective contact sockets in 0° connection direction, of which 1 socket is for continuous current and four sockets can be switched using a one-way switch (lit in blue), incl. 3.0 m power cable with angular connector CEE 7/7.
- Two data technology couplings RJ45 to RJ45, 1:1 switched, Cat. 6 shielded.
The ready-for-connection type DB Deskbox is particularly suitable for the direct supply of workstations with energy, communication and data technology connections.
- Technical data
-
Technical data

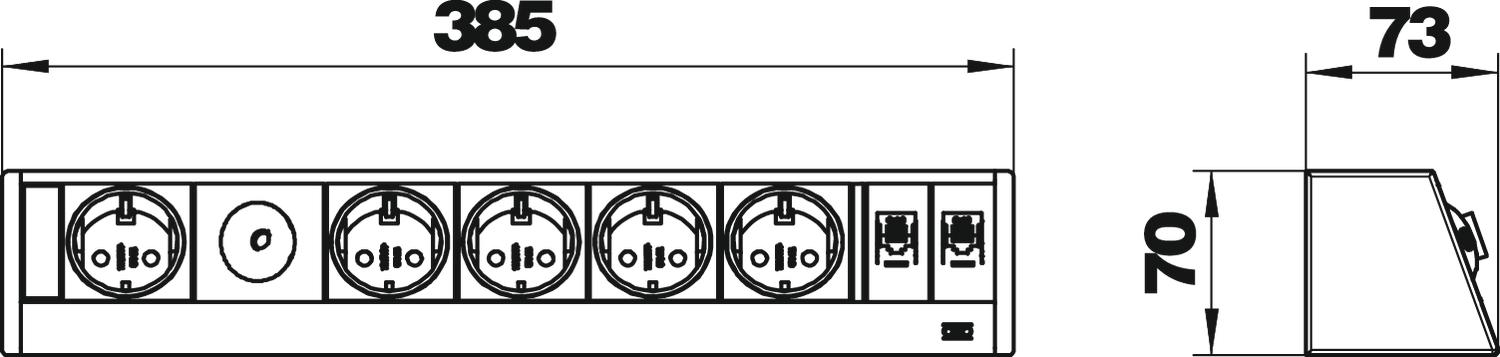

Colour aluminium Extendable no Foldable no Height 70 mm Length 385 mm Length of the supply cable 3 m Material Aluminium Number of CAT 6 connections 2 Number of SCHUKO sockets 5 Surge protection no Version for Housing, silver anodised - All types
- Downloads
-
Data sheet DB-0B3 D1.4S2K / 6116957 , 0.17MB , pdfCatalogue Installation systems , 28.45MB , pdfREACH Declaration of conformity DB-0B3 D1.4S2K / 6116957 , 0.12MB , pdfRoHS Declaration of conformity DB-0B3 D1.4S2K / 6116957 , 0.12MB , pdfMounting instructions Deskbox DB , 7.80MB , pdfNo invitation to tender text is available for this product.
