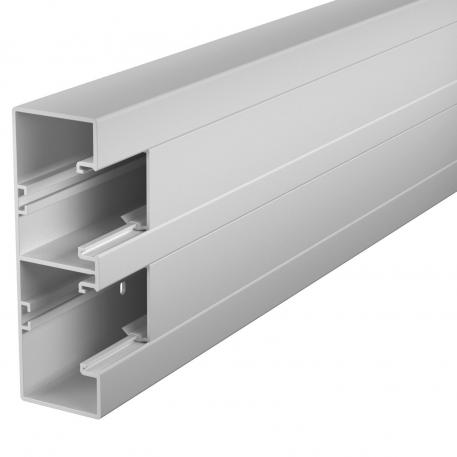

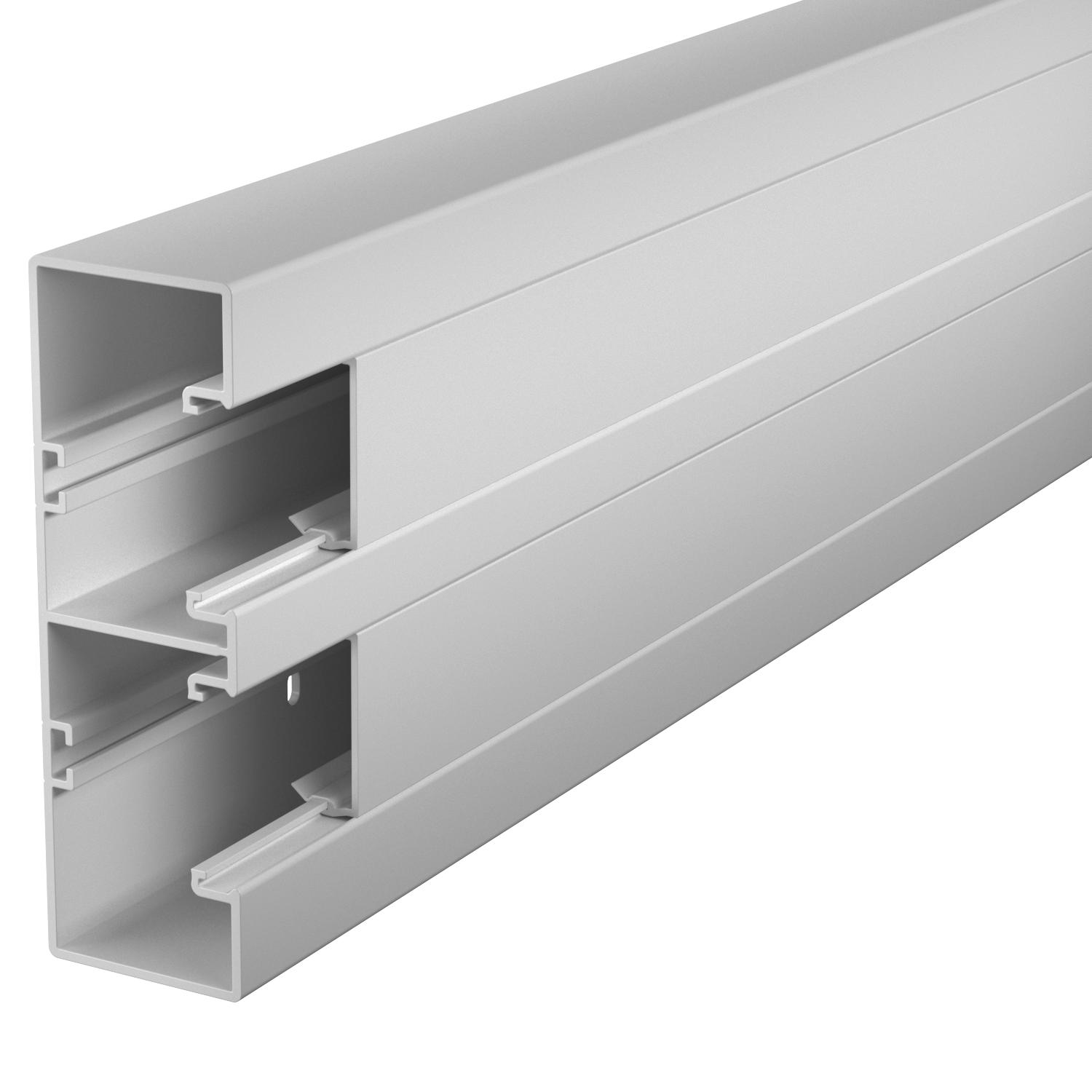

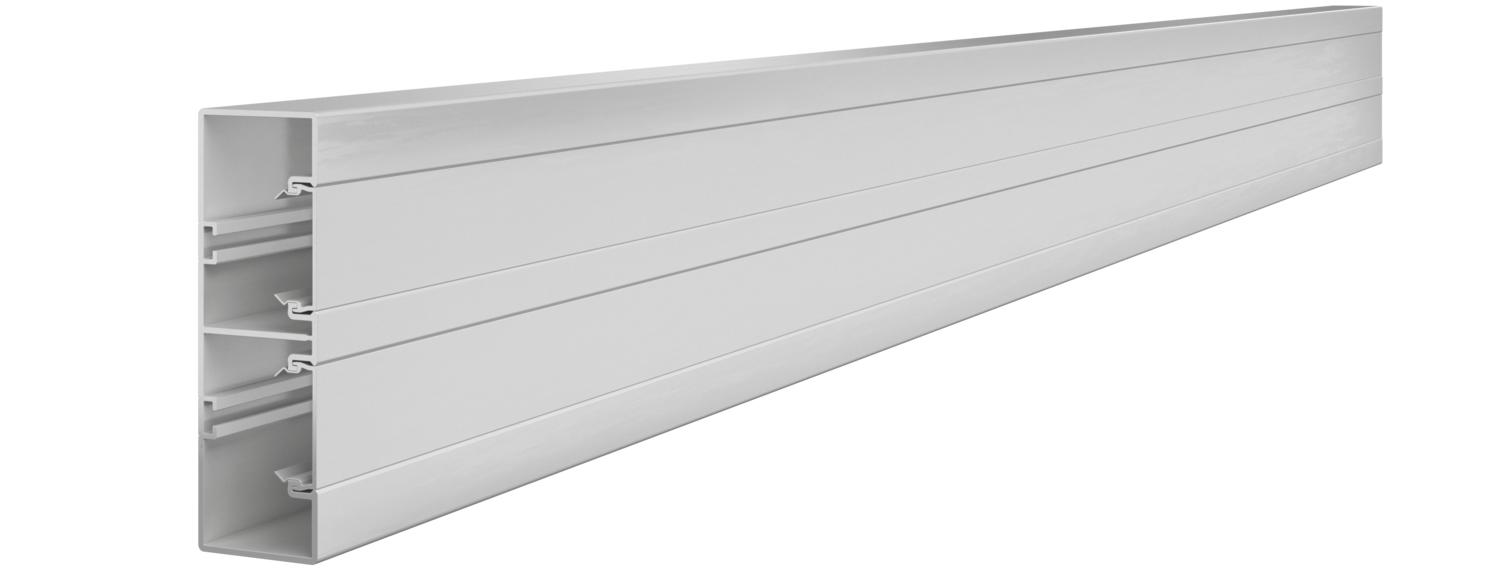

Device installation trunking Rapid 45-2, trunking width 165, trunking height 53
Item no. 6113402 | EAN 4012196419920
- Product description
-
Product descriptionTrunking base and cover with base perforation for direct wall mounting.
-
- Technical data
-
Technical data

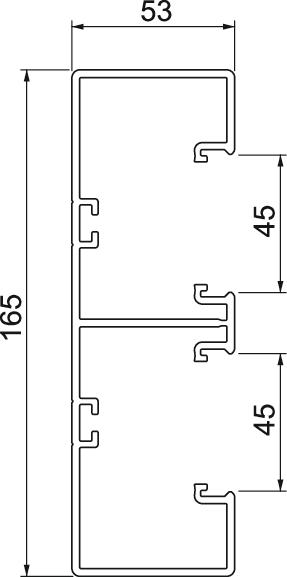

Antibacterial treatment no Base perforation With base perforation Cable retaining clip no CO2 Footprint (GWP) Cradle-to-Gate 4,3824 kg CO2e / 1 Meter Colour Light grey; RAL 7035 Cover mounting type Internal Cover supplied yes Cover width 45 mm Cover width 2 45 mm Dimension 53x165x2000 Duct connector no Halogen-free no Height 53 mm Length 2000 mm Material Polyvinylchloride Mounting perforation in base yes Number of covers 2 Number of insertable partitions 2 Permitted temperature range, max. 60 °C Permitted temperature range, min. -15 °C Protection rating IP40 Protection rating IK code IK08 Protective film yes Rear panel version (inner side) Continuous C profile Rectangular shape yes Symmetrical yes Usable cross-section 7000 mm² Width 165 mm - All types
-
System accessories
- Downloads
-
Data sheet GK-53165LGR / 6113402 , 0.19MB , pdfEU declaration of conformity GK-53165LGR / 6113402 , 0.10MB , pdfUK Declaration of Conformity GK-53165LGR / 6113402 , 0.09MB , pdfNo invitation to tender text is available for this product.

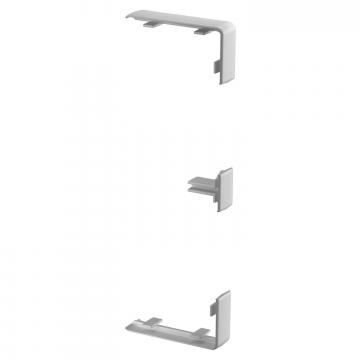

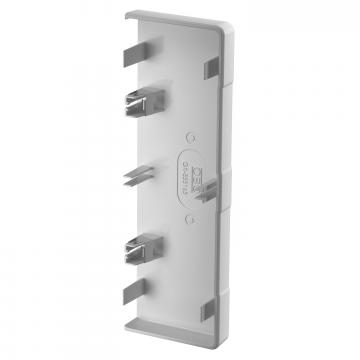

End piece, for device installation trunking Rapid 45-2 type GK-53165

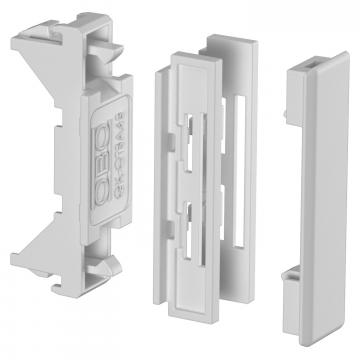

Trunking connector and joint cover
Joint cover
Partition GK-TW53

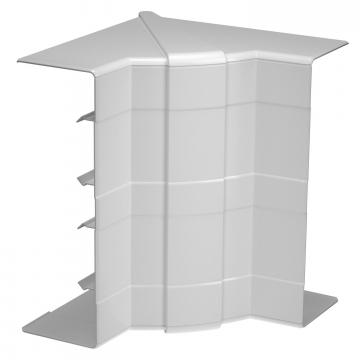

Internal corner hood, for Rapid 45-2 device installation trunking, type GK-53165

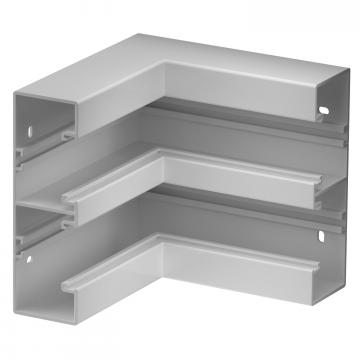

Internal corner, for Rapid 45-2 device installation trunking, type GK-53165

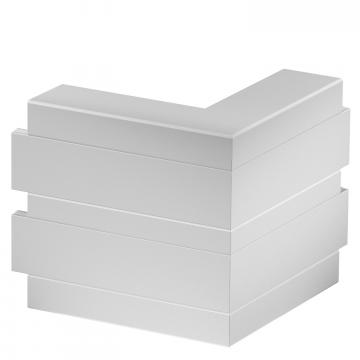

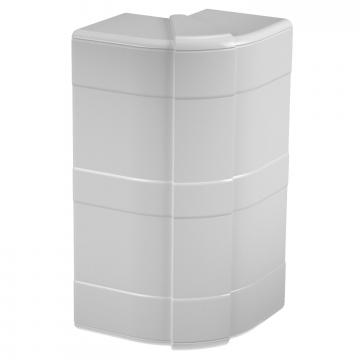

External corner hood, for device installation trunking Rapid 45-2 type GK-53165
External corner, for device installation trunking Rapid 45-2 type GK-53165

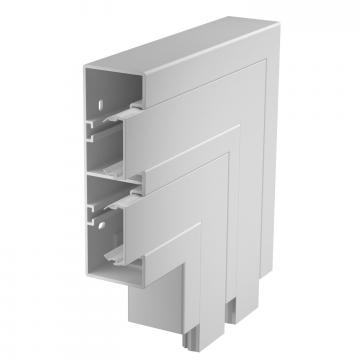

Flat angle, for device installation trunking Rapid 45-2 type GK-53165

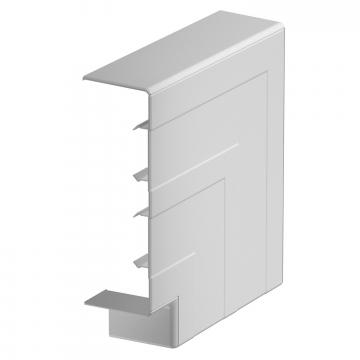

Flat angle hood, for device installation trunking Rapid 45-2 type GK-53165

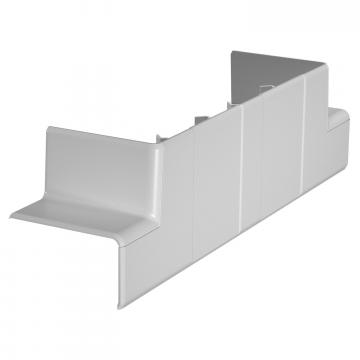

T piece adapter, for device installation trunking Rapid 45-2 type 53165

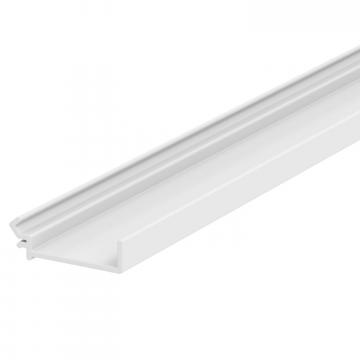

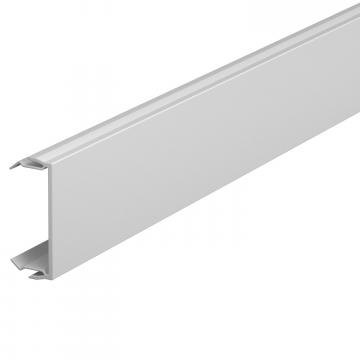

Cover, for device installation trunking Rapid 45-2
