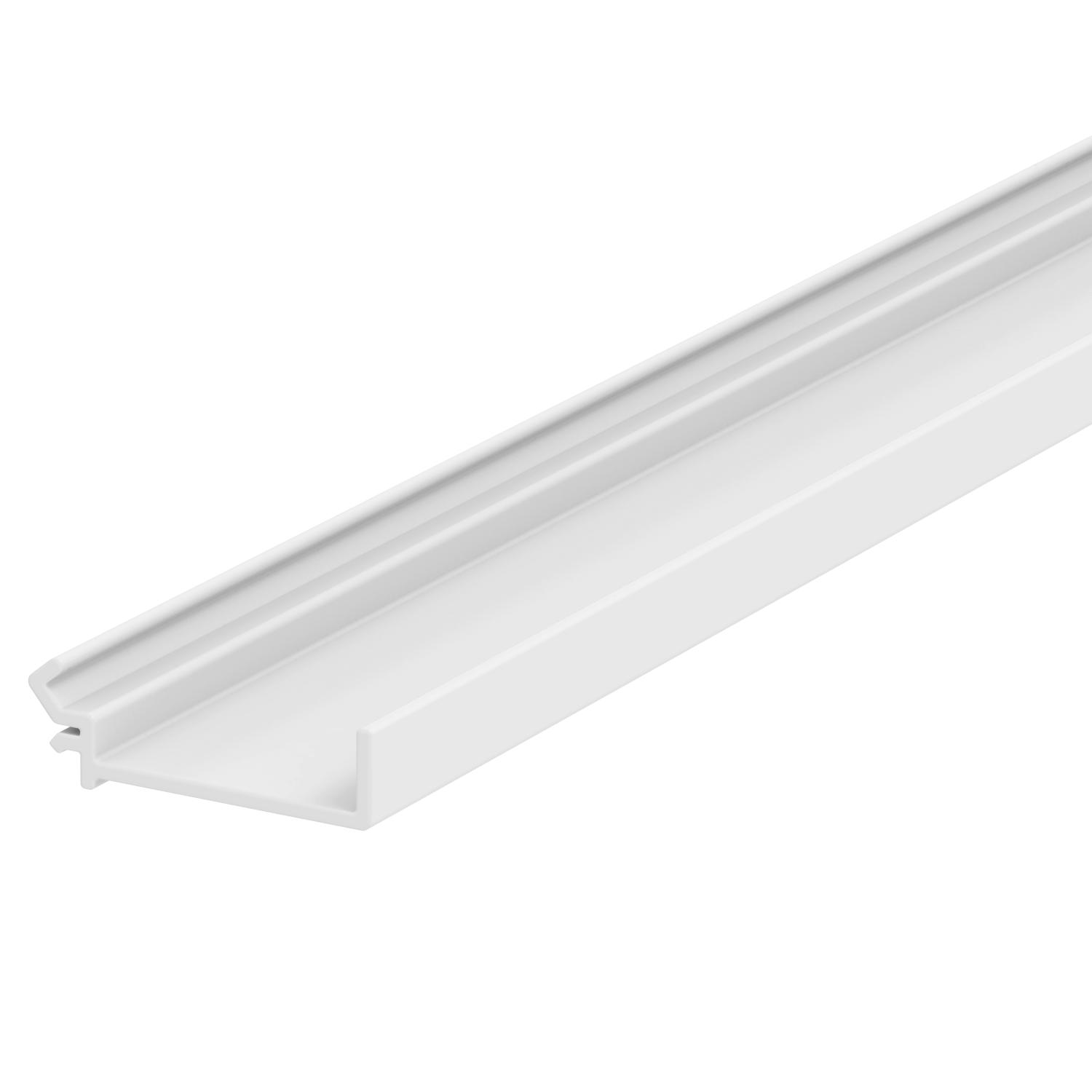

Partition GK-TW53
Item no. 6113290 | EAN 4012196419685
- Product description
-
Product descriptionPartition for mounting in Rapid 45-2 GK and GA device installation trunking for installing cables of different voltage levels.
-
- Technical data
-
Technical data
Colour Light grey; RAL 7035 Dimension 38x13x2000 Fastening type Plug-in Halogen-free no Material Polyvinylchloride Permitted temperature range, max. 60 °C Permitted temperature range, min. -15 °C Product series Rapid 45® Protection rating IP40 Protection rating IK code IK08 ROHS-conformant yes Suitable for duct depth 53 Version for Single Dimensions
Height 38 mm Length 2000 mm Width 10 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 0,302 kg CO2e / 1 Meter CO₂ Footprint (GWP) 0,302 kg CO₂e Declared Unit Metres Declared Unit Quantity 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
- Downloads
-
Data sheet GK-TW53 / 6113290 , 0.15MB , pdfEU declaration of conformity GK-TW53 / 6113290 , 0.10MB , pdfREACH Declaration of conformity GK-TW53 / 6113290 , 0.12MB , pdfRoHS Declaration of conformity GK-TW53 / 6113290 , 0.13MB , pdfLabel approval VDE symbol approval Rapid45-2 GKH , 0.31MB , pdfMounting instructions Cable trunking WDK , 6.31MB , pdfMounting instructions Geräteeinbaukanal Rapid 45-2® , 2.65MB , pdfMounting instructions Geräteeinbaukanal Rapid 80® , 4.62MB , pdfNo invitation to tender text is available for this product.
