End piece, Swing, right | | | | aluminium
morepic-1 morepic-2

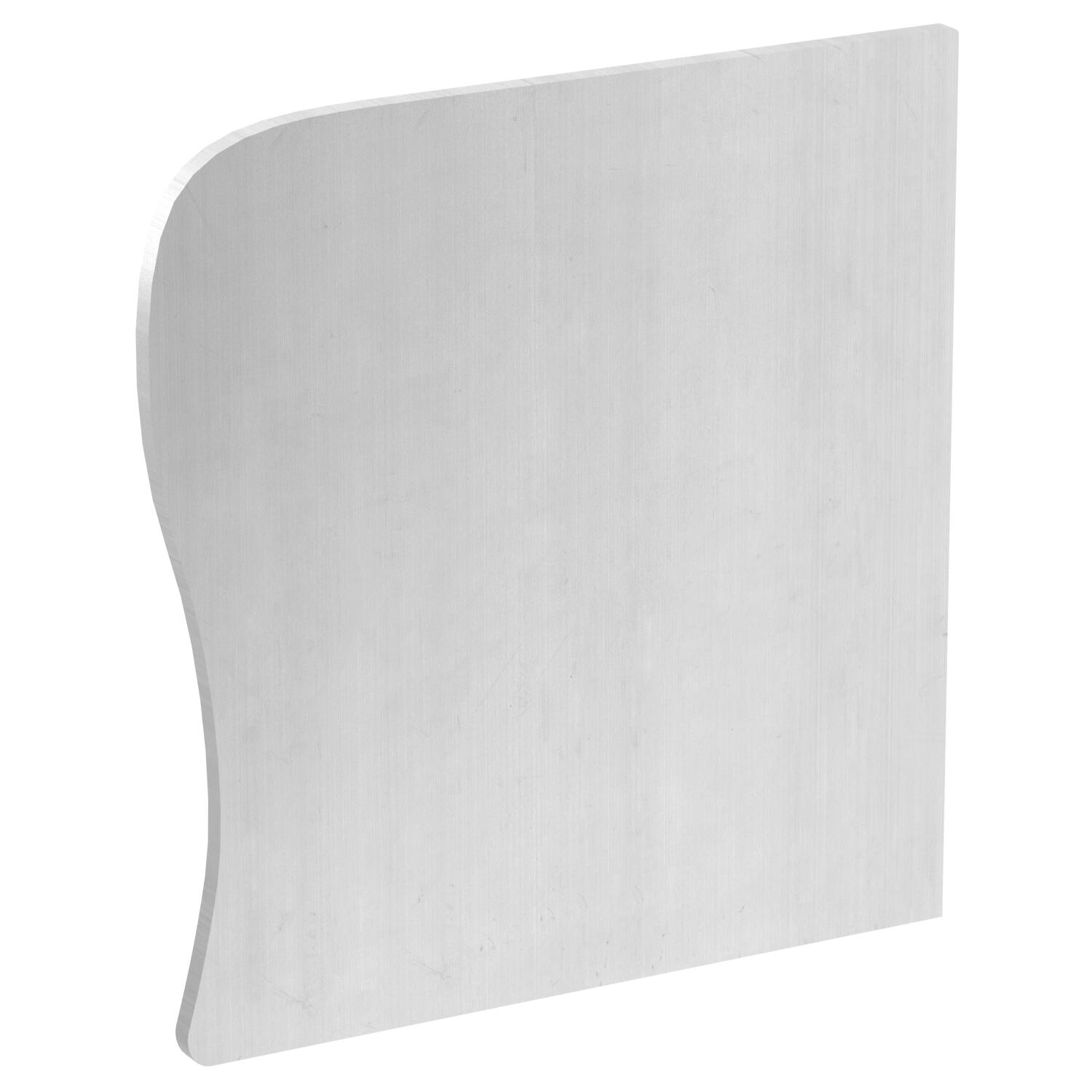

End piece, Swing, right

Item no. 6115925 | EAN 4012195914396

6115925 / GAD ER Swing EL
aluminium
Product description
Product description
End piece for design device installation trunking of the GAD series. "Swing" design version. The end piece can only be used for closing on the right side.
Standard version in anodised aluminium, different decoration on request.

  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
  • Packaging made entirely from recycled cardboard
Technical data

Technical data

Antibacterial treatment no
Colour aluminium
Cut lamination no
Dimension 133x140x37
Fastening type Lockable
for duct width 140 mm
for trunking height 114 mm
Halogen-free yes
Material Aluminium
Protective film yes
Suitable for Right
Surface Anodised
Version for Asymmetrical

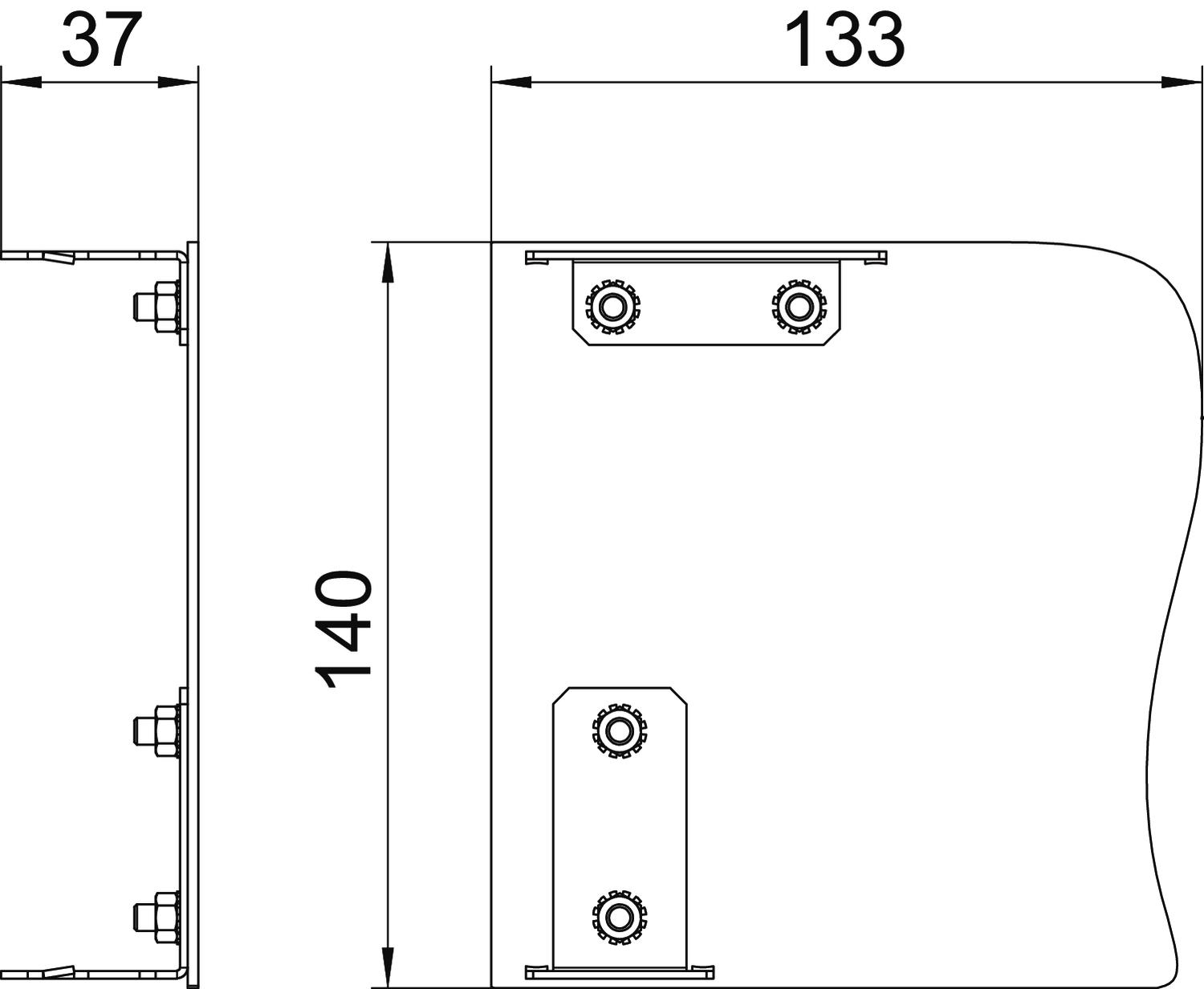

Dimensions

Height 133 mm
Length 37 mm
Width 140 mm

CO2 footprint (Product Carbon Footprint)

CO2 Footprint (GWP) Cradle-to-Gate 2,0175 kg CO2e / 1 Piece
CO₂ Footprint (GWP) 2,0175 kg CO₂e
Declared Unit (LCA) Units
Declared Unit Quantity (LCA) 1
Determination date of CO2 value 2025-05-14T00:00:00.000+0200
All types

All types

Types Colour Item no. Quantity SSU
GAD ER Swing EL aluminium 6115925
1 piece
Downloads

Download

Download
Download

EU declaration of conformity GAD ER Swing EL / 6115925 , 0.10MB , pdf
Download
UK Declaration of Conformity GAD ER Swing EL / 6115925 , 0.09MB , pdf
Download

Download

No invitation to tender text is available for this product.
