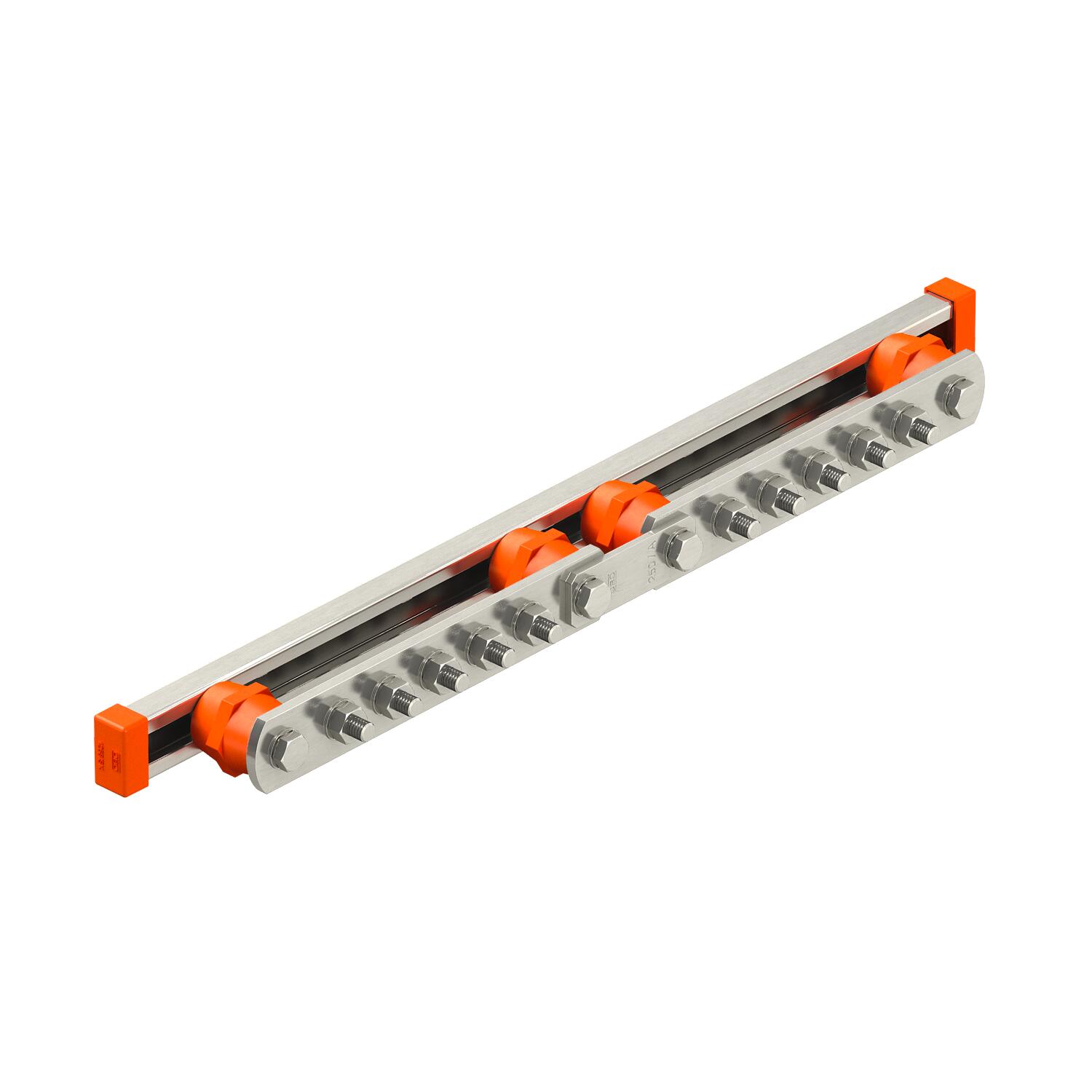

Equipotential busbar for flexible wall mounting with separation point
Item no. 5015876 | EAN 4012196681938
- Product description
-
Product descriptionMain equipotential busbar for equipotential bonding to VDE 0100 Part 410/-540 and
lightning protection equipotential bonding to VDE 0185-305 (IEC 62305)
• With separation point (Disconnect - DC)
• For flexible wall mounting
• Complete with profile rail (FT) and screws
• Rust-proof stainless steel versions (V2A) are suitable for outdoor use
• Quick, simple mounting of the connection cable using
lock bolts M10
• With lock washer (DIN 137) for bolt locking against loosening
-
- Technical data
-
Technical data
Dimension 5+5 x M10 Insulator yes Lightning current carrying capacity H/100 kA Material Stainless steel 1.4301 Material of the contact rail Rustproof steel (V2A) Material of the terminal Rustproof steel (V2A) Number of connections 10 ROHS-conformant yes Type Modular structure Version for Only terminal Dimensions
Height 85 mm Length 605 mm Width 40 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 9,7349 kg CO2e / 1 Piece CO₂ Footprint (GWP) 9,7349 kg CO₂e Declared Unit Units Declared Unit Quantity 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
-
System accessories
Products Types Item no. Quantity SSU

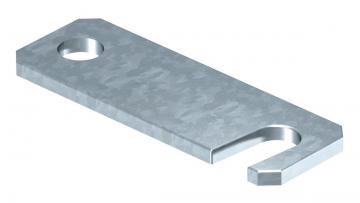

Crossbar for equipotential busbar
1802 KL 5015890 1 piece - Downloads
-
