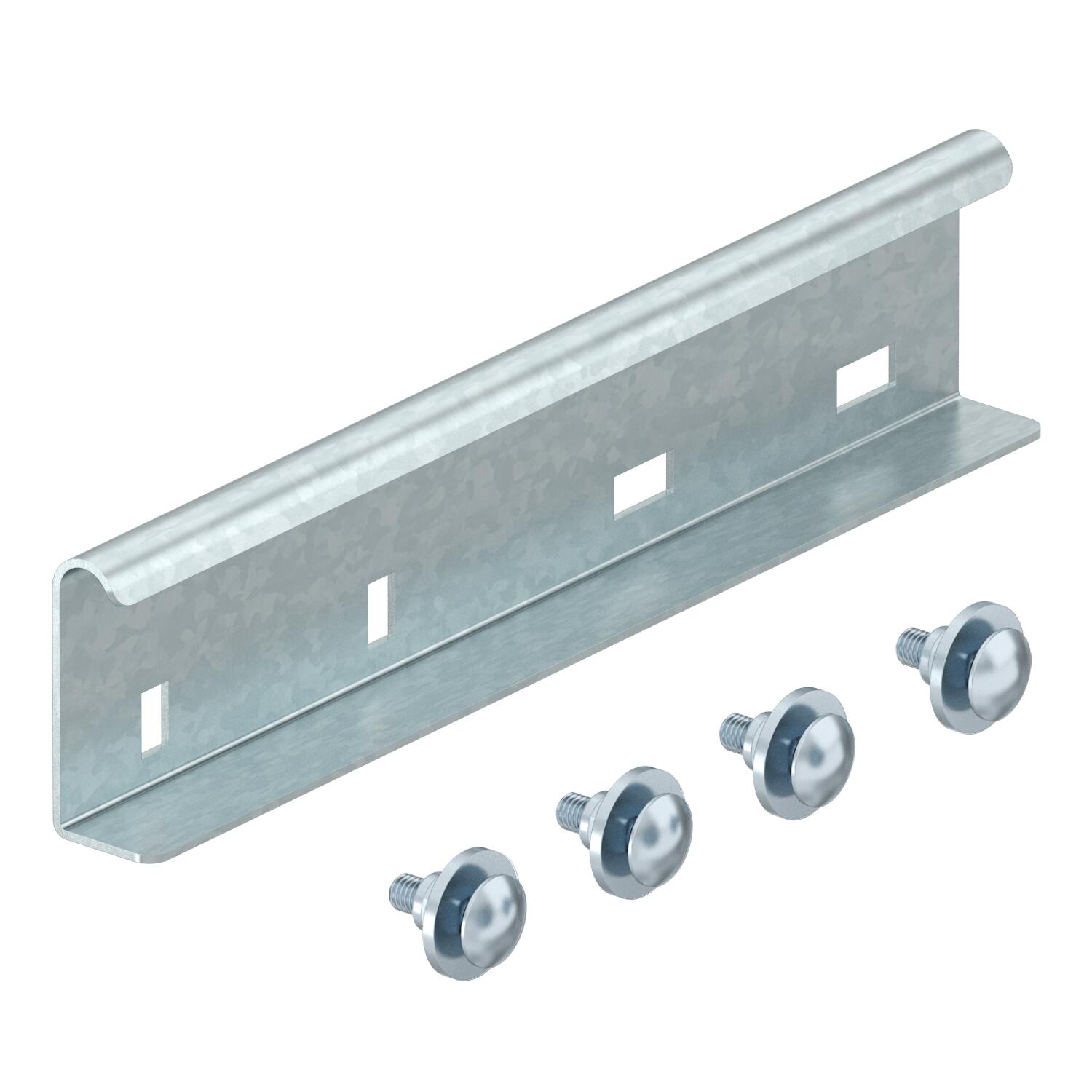

Expansion connector
Item no. 6208970 | EAN 4012196464623
- Product description
-
Product descriptionConnector for expansion for compensation of linear thermal expansion. The tightening torques of the self-locking screws on the loose bearing side are 5 Nm.
-
- Technical data
-
Technical data
Adjustable connector, horizontal no Articulated connector, vertical no Colour zinc Connection type Screw connector Dimension 60x300 Maintain electrical functions no Material Steel Rustproof steel, pickled no Suitable for cable ladder yes Suitable for cable tray no Suitable for cable tray system height 60 mm Suitable for mesh cable tray no Surface Hot-dip galvanised Version for Straight connector Dimensions

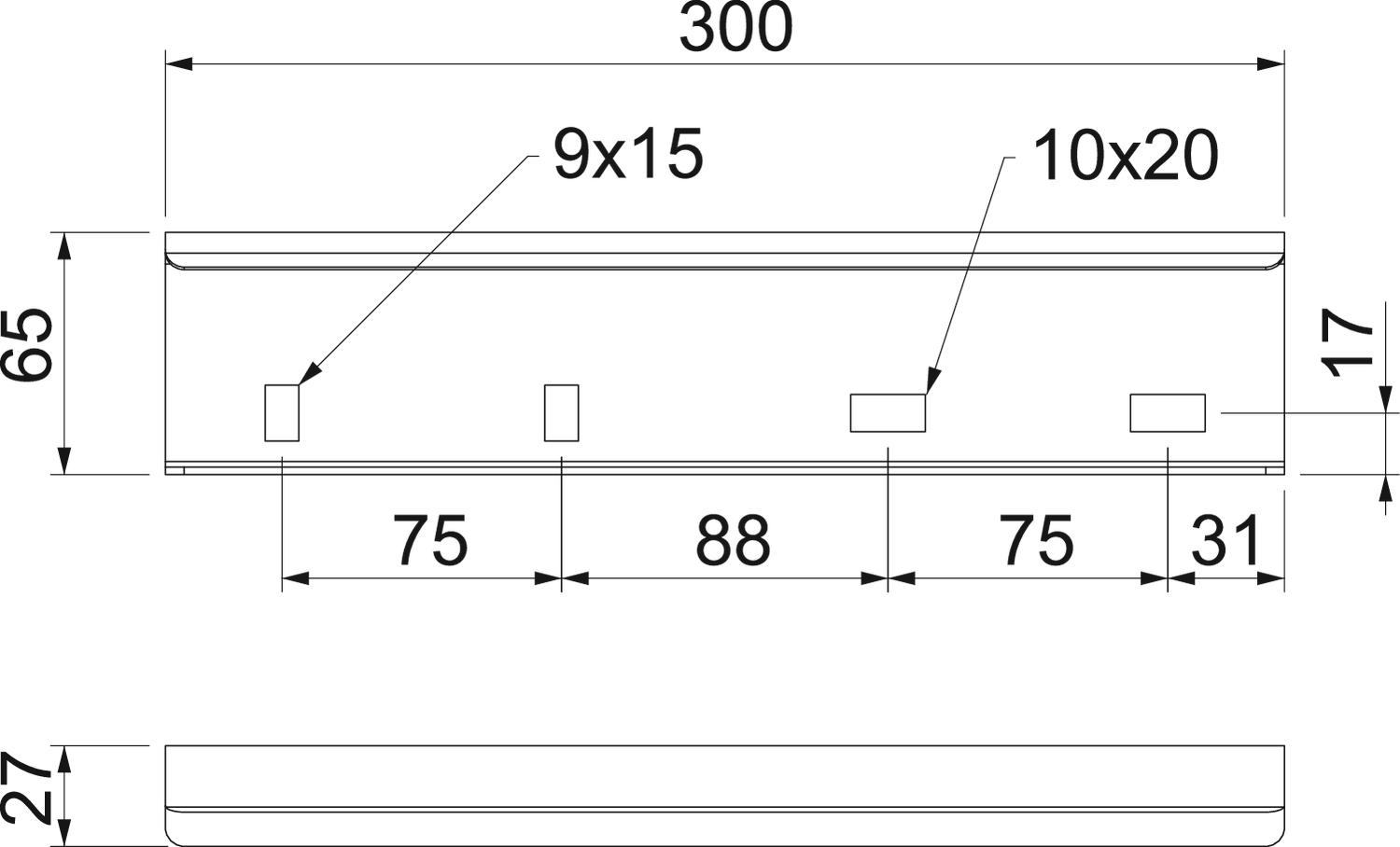

Height 60 mm Length 300 mm Width 27 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 1,4731 kg CO2e / 1 Piece CO₂ Footprint (GWP) 1,4731 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
- Downloads
-
Data sheet LDVG 60 FT / 6208970 , 0.21MB , pdfEU declaration of conformity LDVG 60 FT / 6208970 , 0.10MB , pdfUK Declaration of Conformity LDVG 60 FT / 6208970 , 0.09MB , pdfREACH Declaration of conformity LDVG 60 FT / 6208970 , 0.12MB , pdfRoHS Declaration of conformity LDVG 60 FT / 6208970 , 0.13MB , pdfMounting instructions Cable ladder systems , 6.45MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
