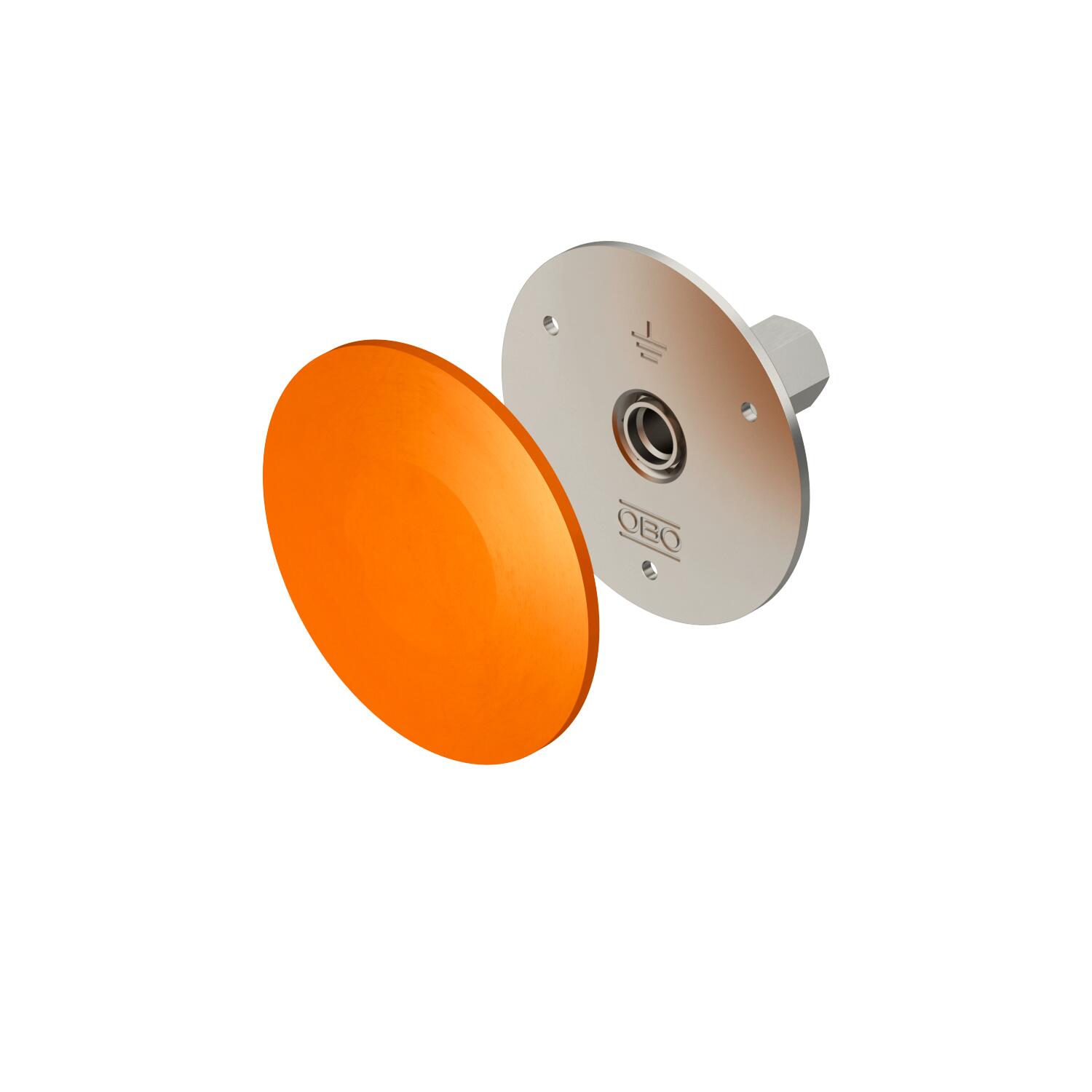

Fixed earthing terminal with double thread
Item no. 5420020 | EAN 4012196505869
- Product description
-
Product description• For connecting to earthing systems, conductors and reinforcements
• Contact plate: Ø 79 mm from stainless steel, rustproof (V4A)
• Double thread M10/M12
• Including plastic cover for easy installation
-
- Technical data
-
Technical data
Dimension M10/M12 Lightning current carrying capacity H/100 kA Material Stainless steel 1.4404 Short-circuit current (50 HZ)(1 s;≤300°C) 6,2 kA Thread M10/M12 Dimensions

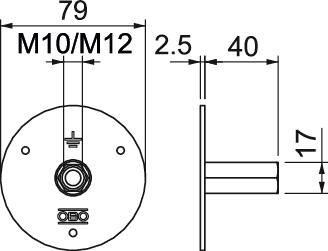

Diameter of the contact plate 79 mm Length 180 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 1,0155 kg CO2e / 1 Piece CO₂ Footprint (GWP) 1,0155 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
- Downloads
-
Data sheet 205 DG V4A / 5420020 , 0.14MB , pdfEU declaration of conformity 205 DG V4A / 5420020 , 0.06MB , pdfREACH Declaration of conformity 205 DG V4A / 5420020 , 0.12MB , pdfRoHS Declaration of conformity 205 DG V4A / 5420020 , 0.12MB , pdfNo invitation to tender text is available for this product.
