Flat angle cover, trunking type WDKH 20020
Item no. 6176036 | EAN 4012195922919
- Product description
-
Product descriptionFlat angle hood for changing the direction of the halogen-free WDKH trunking.
-
- Technical data
-
Technical data
Angle range, max. 90 mm Angle range, min. 90 mm Antibacterial treatment no Colour Light grey; RAL 7035 Dimension 20x20mm Fastening type Lockable Halogen-free yes Maintain electrical functions no Material Polycarbonate/Acrylnitrile-butadiene-styrene Permitted temperature range, max. 90 °C Permitted temperature range, min. -5 °C Protection rating IP30 Protection rating IK code IK07. Protective film no Self-extinguishing yes Trunking depth 20 mm Version for Hood fitting Dimensions

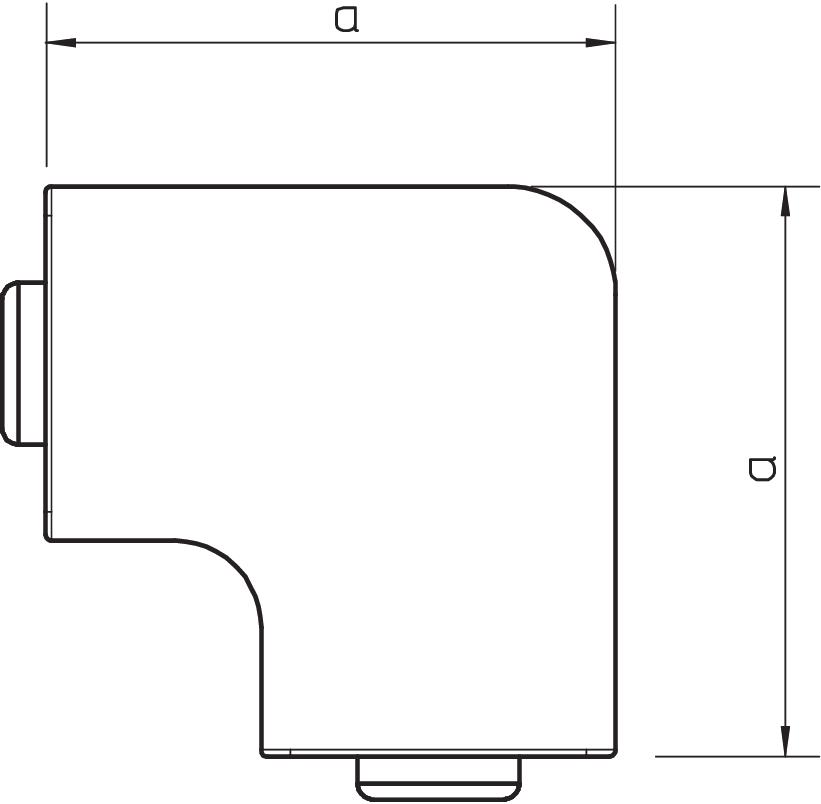

Dimension a 38 mm Height 17,5 mm Length 38 mm Width 20 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 0,043 kg CO2e / 1 Piece CO₂ Footprint (GWP) 0,043 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-21T00:00:00.000+0200 - All types
- Downloads
-
Data sheet WDKH-F20020LGR / 6176036 , 0.18MB , pdfCatalogue Cable routing systems , 17.62MB , pdfEU declaration of conformity WDKH-F20020LGR / 6176036 , 0.10MB , pdfUK Declaration of Conformity WDKH-F20020LGR / 6176036 , 0.09MB , pdfREACH Declaration of conformity WDKH-F20020LGR / 6176036 , 0.12MB , pdfRoHS Declaration of conformity WDKH-F20020LGR / 6176036 , 0.13MB , pdfNo invitation to tender text is available for this product.
