Flat angle, for cable trunking type LKM 80080
Item no. 6248428 | EAN 4012195699095
- Product description
-

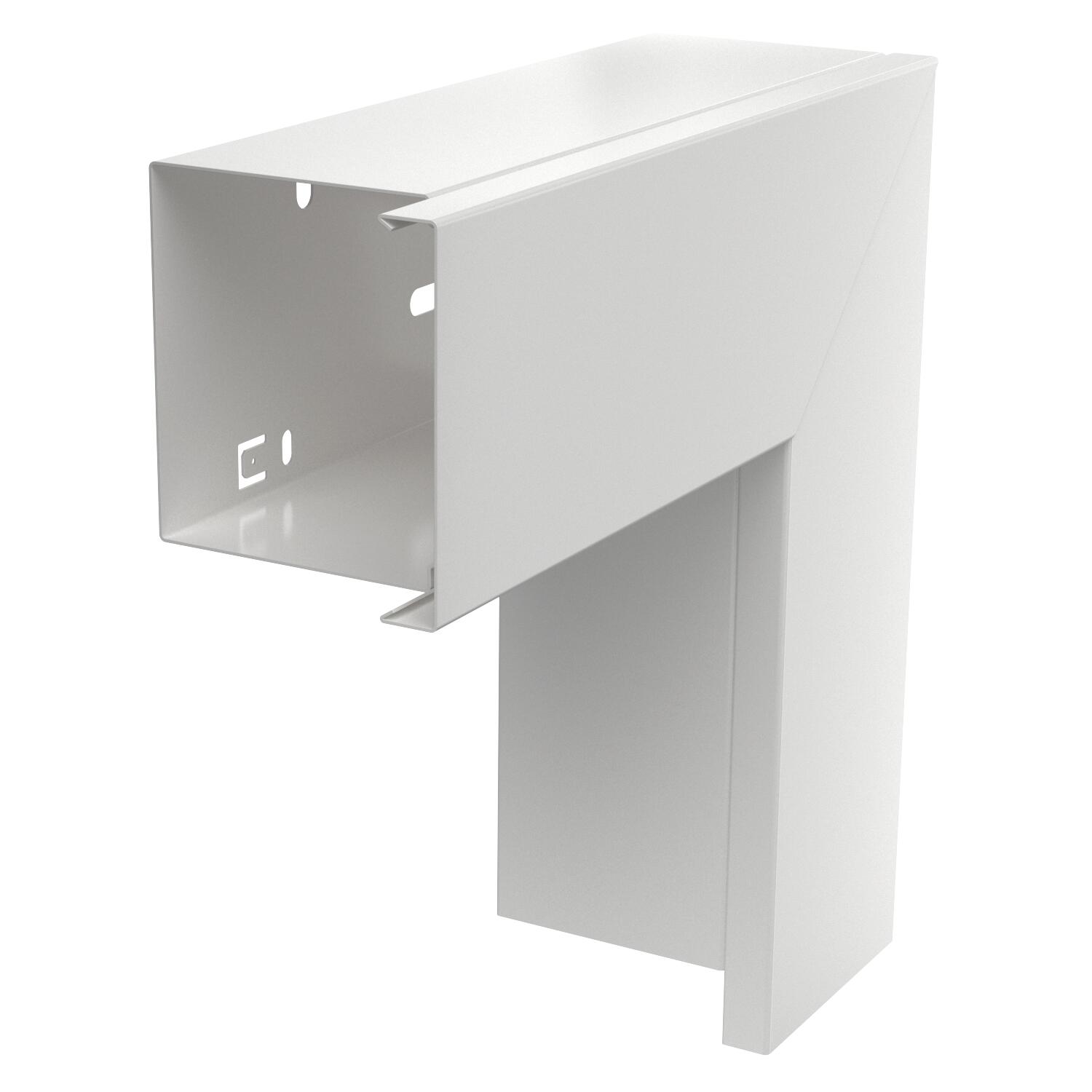

Product descriptionFlat angle including cover for changing the direction of the LKM ducts.
Equipotential bonding without additional aids, between base and cover
-
- Technical data
-
Technical data
Angle range, max. 90 mm Angle range, min. 90 mm Antibacterial treatment no Colour Pure white; RAL 9010 Dimension 80x80mm Duct height, min. 80 mm Fastening type Base perforation for duct dimension 80 x 80 Halogen-free yes Maintain electrical functions no Material Steel Permitted temperature range, max. 90 °C Permitted temperature range, min. -5 °C Protection rating IP30 Protection rating IK code IK10 Protective film no Self-extinguishing no Surface Strip galvanised / plastic coated Trunking depth 80 mm Version for Base and cover Dimensions

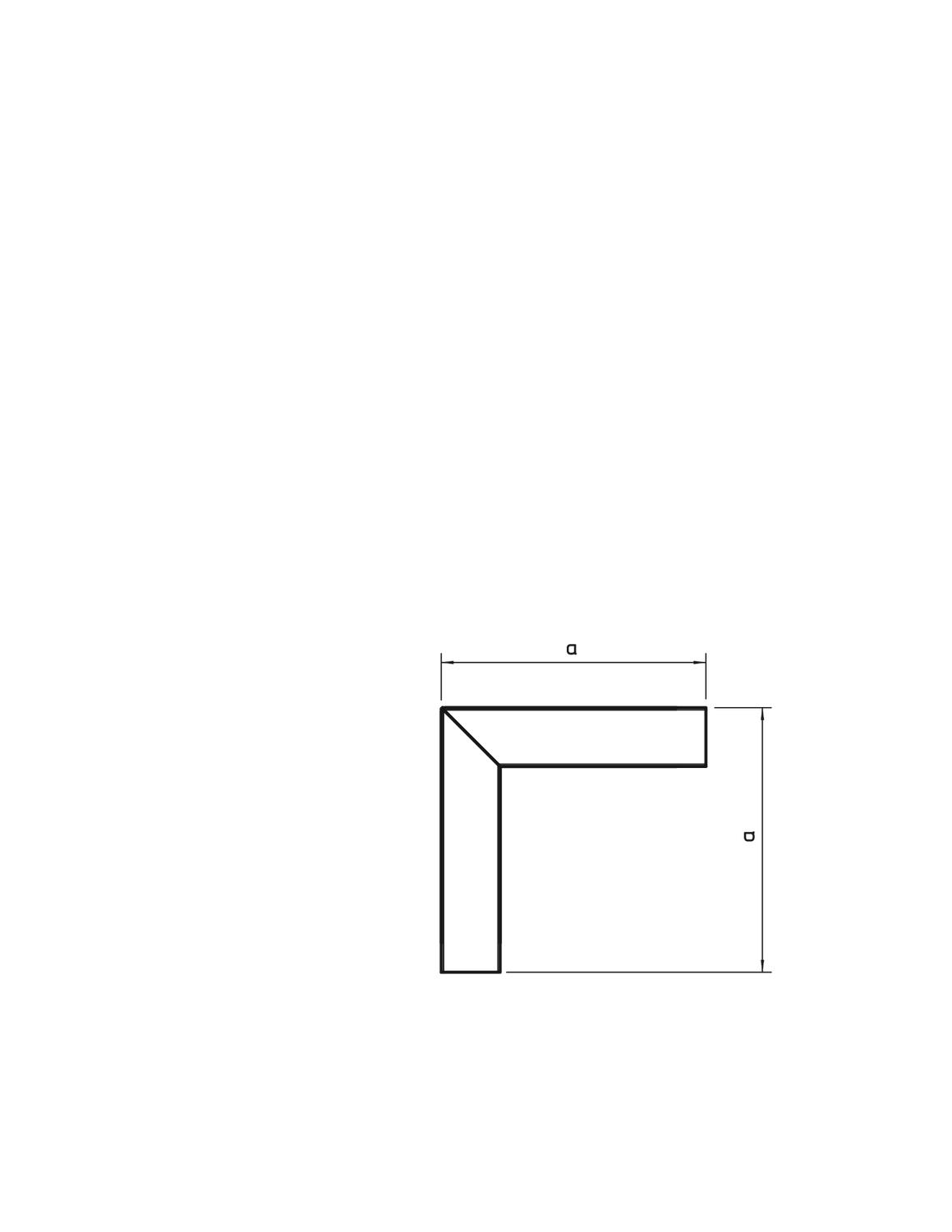

Dimension a 140 mm Height 80 mm Length 240 mm Width 80 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 3,4772 kg CO2e / 1 Piece CO₂ Footprint (GWP) 3,4772 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
- Downloads
-
Data sheet LKM F80080RW / 6248428 , 0.19MB , pdfEU declaration of conformity LKM F80080RW / 6248428 , 0.11MB , pdfUK Declaration of Conformity LKM F80080RW / 6248428 , 0.09MB , pdfLabel approval VDE symbol approval LKM , 0.15MB , pdfMounting instructions LKM-Kanal , 0.77MB , pdf
