Flat angle, for cable trunking type LKM 80080
Item no. 6248328 | EAN 4012195699026
- Product description
-

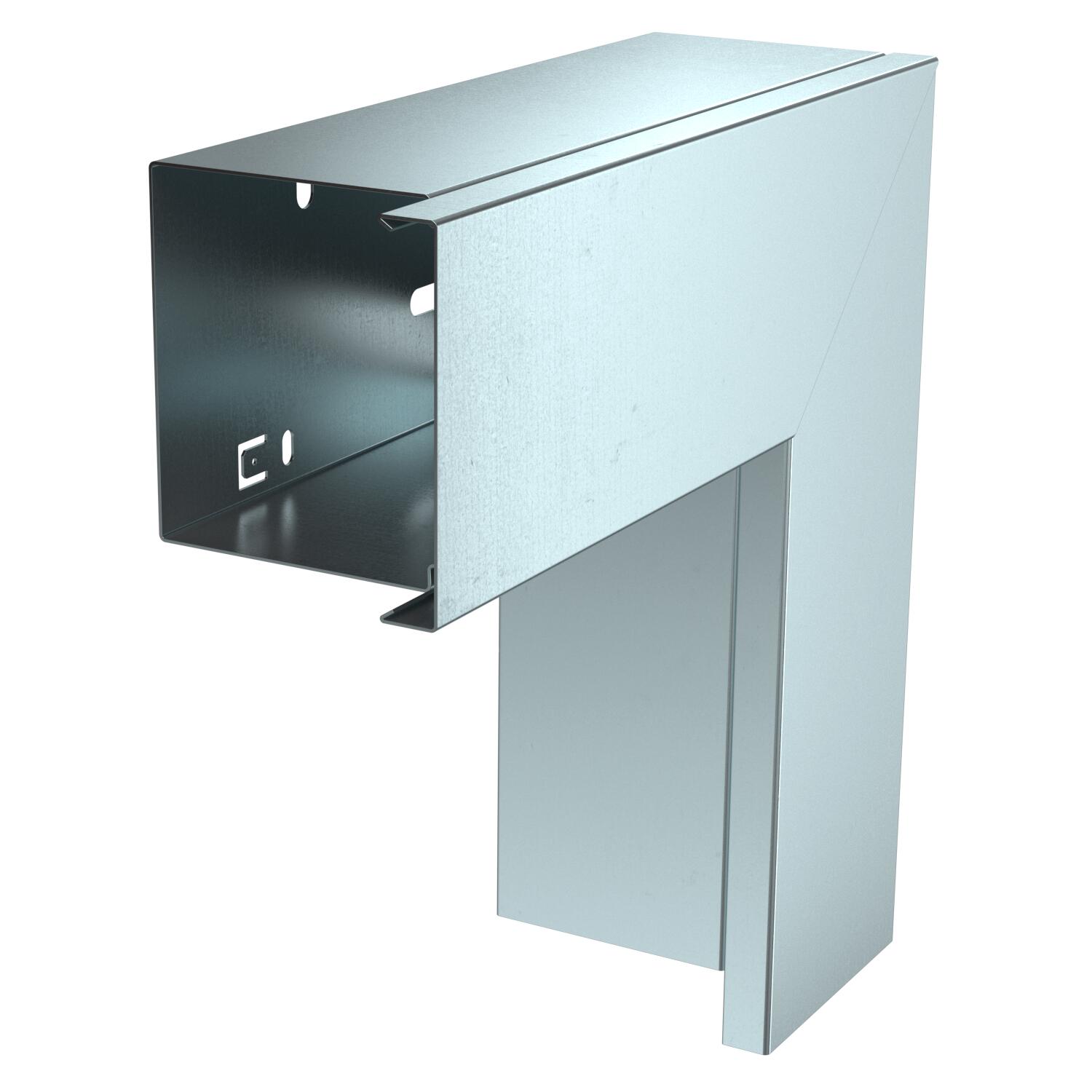

Product descriptionFlat angle including cover for changing the direction of the LKM ducts.
Equipotential bonding without additional aids, between base and cover
-
- Technical data
-
Technical data
Angle range, max. 90 mm Angle range, min. 90 mm Antibacterial treatment no Colour zinc Dimension 80x80mm Duct height, min. 80 mm Fastening type Base perforation for duct dimension 80 x 80 Halogen-free yes Maintain electrical functions no Material Steel Permitted temperature range, max. 90 °C Permitted temperature range, min. -5 °C Protection rating IP30 Protection rating IK code IK10 Protective film no Self-extinguishing no Surface Strip galvanised Trunking depth 80 mm Version for Base and cover Dimensions

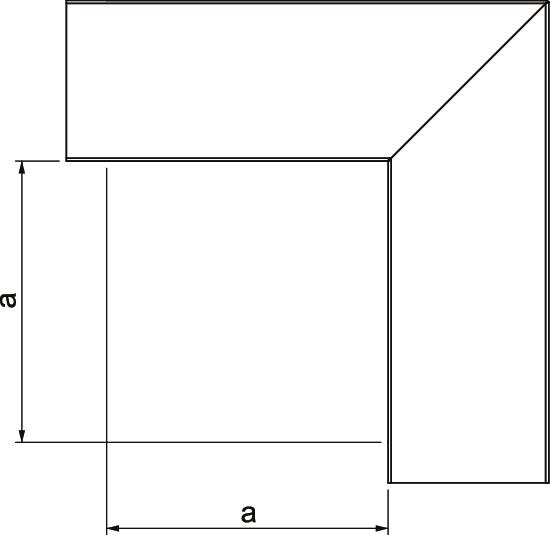

Dimension a 140 mm Height 80 mm Length 240 mm Width 80 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 3,3396 kg CO2e / 1 Piece CO₂ Footprint (GWP) 3,3396 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
- Downloads
-
Data sheet LKM F80080FS / 6248328 , 0.19MB , pdfEU declaration of conformity LKM F80080FS / 6248328 , 0.10MB , pdfUK Declaration of Conformity LKM F80080FS / 6248328 , 0.09MB , pdfLabel approval VDE symbol approval LKM , 0.15MB , pdfMounting instructions LKM-Kanal , 0.77MB , pdf
