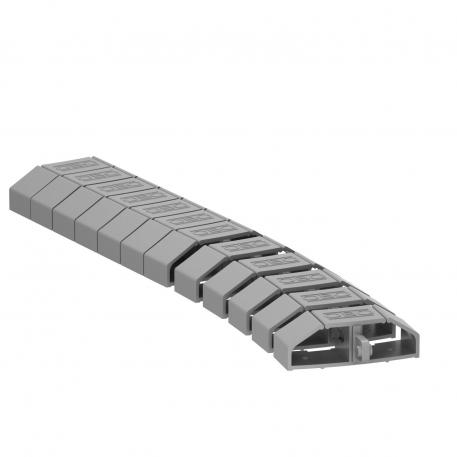

Flexkanal
Item no. 6154922 | EAN 4012196277575
- Product description
-

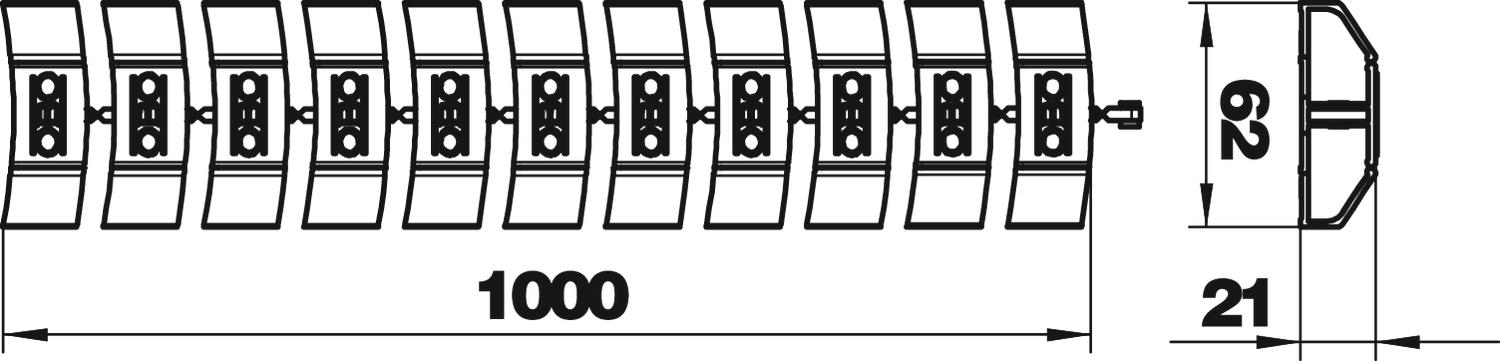

Product descriptionThe Flexkanal runs cables ordered and protected to the desk. It connects the deskbox with the dado trunking or the floor connection box. When extended, the Flexkanal is 1,000 mm ling, 60 mm wide and 20 mm high.
The trunking consists of two chambers, the capacity per chamber is:
Two cables of a total diameter of 8.5 mm or three cables with a total diamter of 7.5 mm or four cables with a total diameter of 7.0 mm or five cables with a total diameter of 6.0 mm.
-
- Technical data
-
Technical data
Colour Light grey; RAL 7035 Dimension 1000mm ROHS-conformant yes Dimensions
Length 1000 mm - All types
- Downloads
-
Data sheet FLK-2K LGR / 6154922 , 0.12MB , pdfCatalogue Installation systems , 28.45MB , pdfREACH Declaration of conformity FLK-2K LGR / 6154922 , 0.12MB , pdfRoHS Declaration of conformity FLK-2K LGR / 6154922 , 0.13MB , pdfNo invitation to tender text is available for this product.
