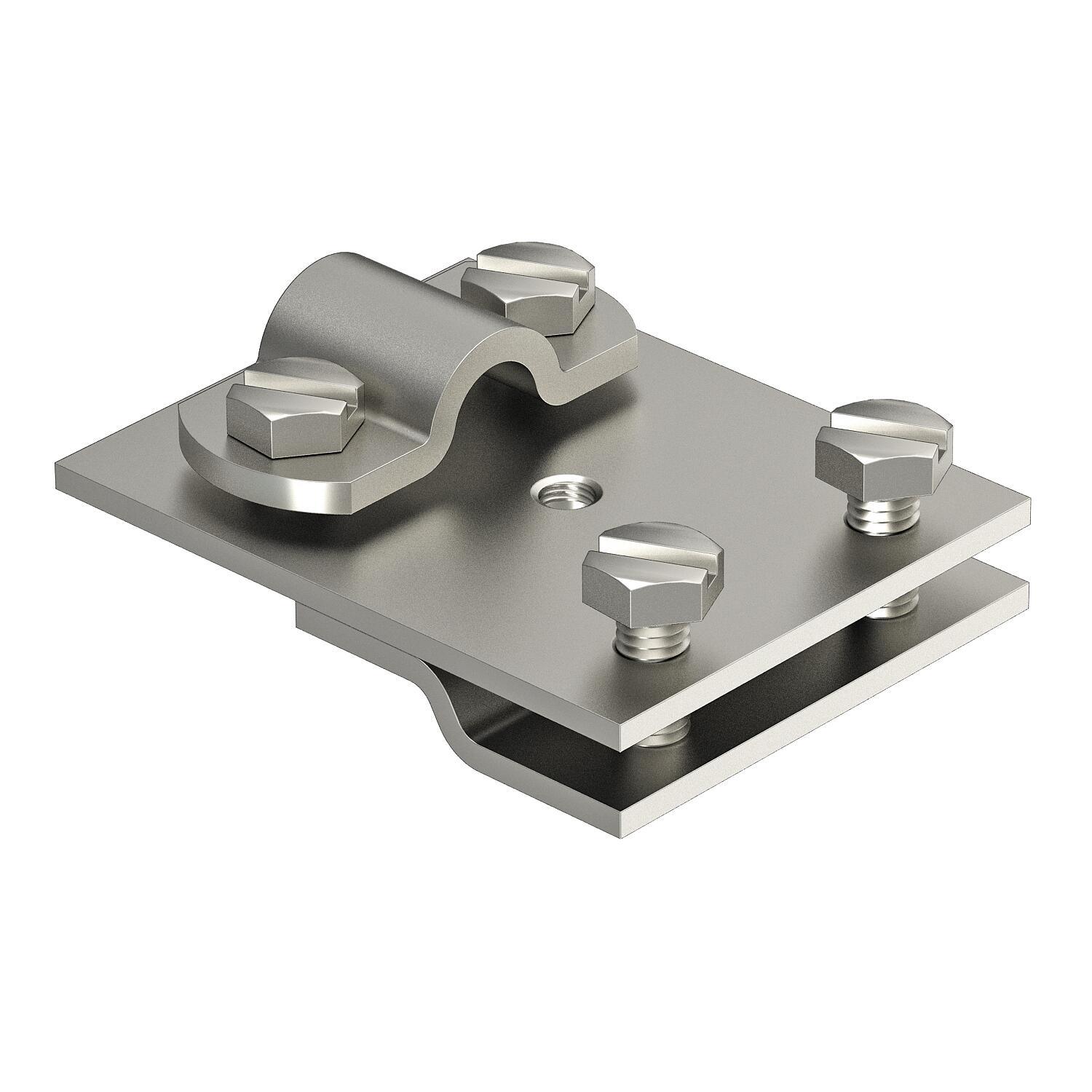

Folding clamp up to 5 mm plate thickness A2

Item no. 5317481 | EAN 4012195850861

5317481 / 271 8-10 VA
Rd 8-10 mm
5 mm
Product description
Product description
• Plate thickness to 5 mm

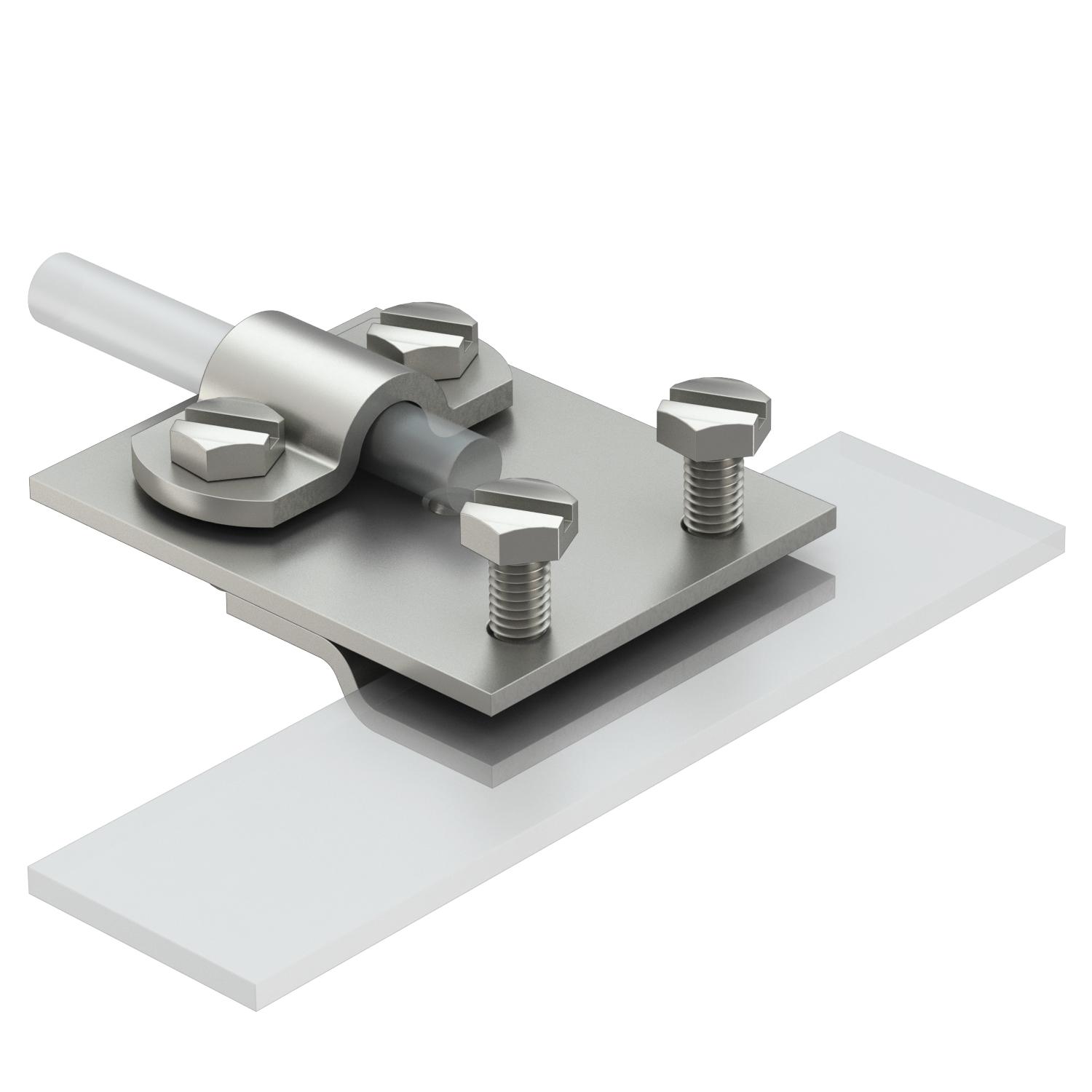

• For conductor routing transverse and longitudinal to plate
• With 4 hexagonal bolts M6 x 12
• Conforms to the requirements according to DIN VDE 0185-305 (IEC 62305)
• 271 Cu: with hexagonal bolts stainless steel (VA)
  • Lightning current-tested
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard
Technical data

Technical data

Clamping range, max. 5 mm
Dimension 8/10mm
Fit Rd 8-10 mm
Lightning current carrying capacity N/50 kA
Material Stainless steel 1.4301
Type of connector Folding clamp
Type of fastening screw Hexagonal bolt

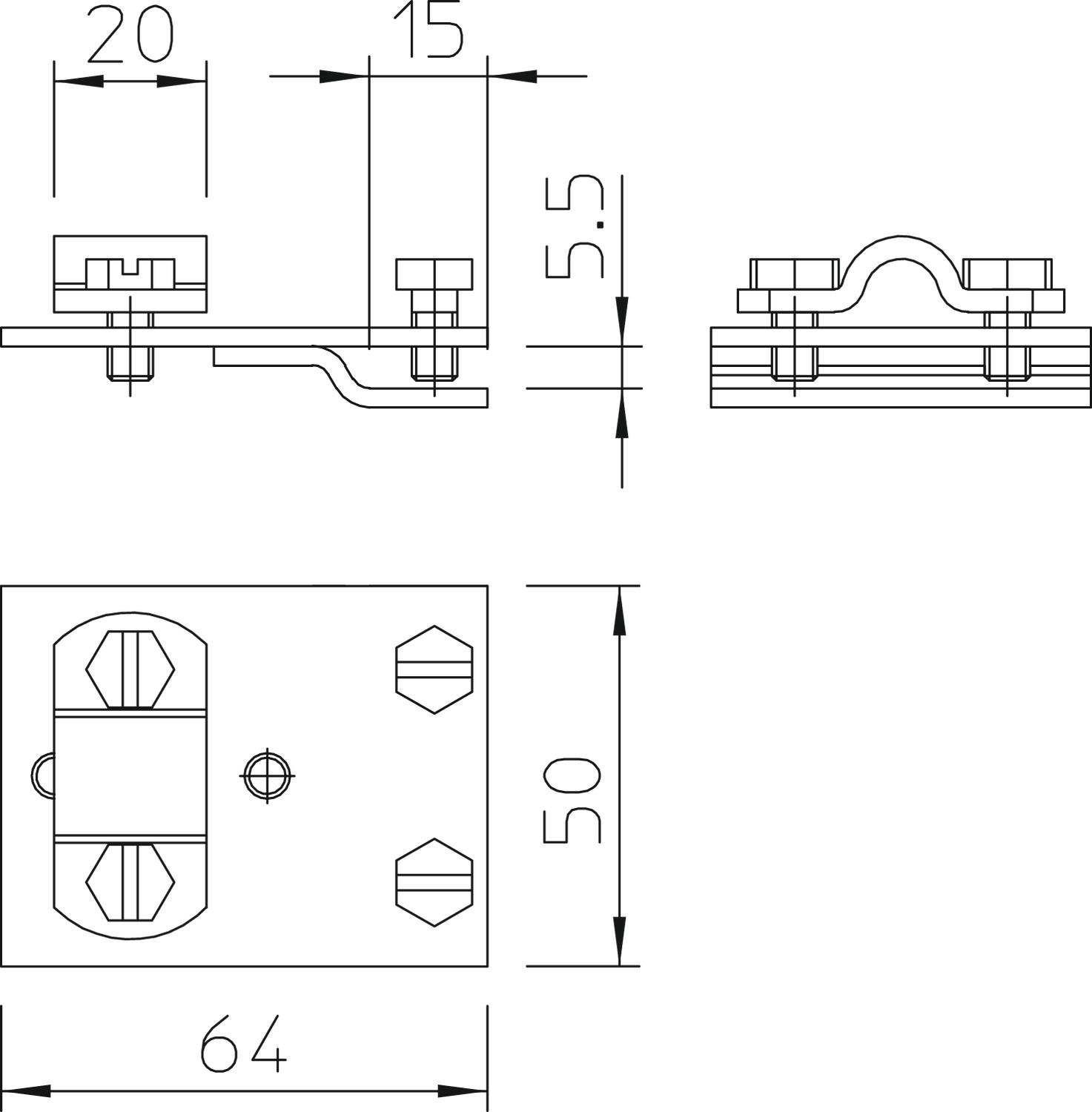

Dimensions

Length 64 mm
Width 50 mm

CO2 footprint (Product Carbon Footprint)

CO2 Footprint (GWP) Cradle-to-Gate 0,6783 kg CO2e / 1 Piece
CO₂ Footprint (GWP) 0,6783 kg CO₂e
Declared Unit (LCA) Units
Declared Unit Quantity (LCA) 1
Determination date of CO2 value 2025-05-14T00:00:00.000+0200
All types

All types

Types Fit Clamping range, max. Item no. Quantity SSU
271 8-10 VA Rd 8-10 mm 5 mm 5317481
10 piece
