Note: This article is discontinued.

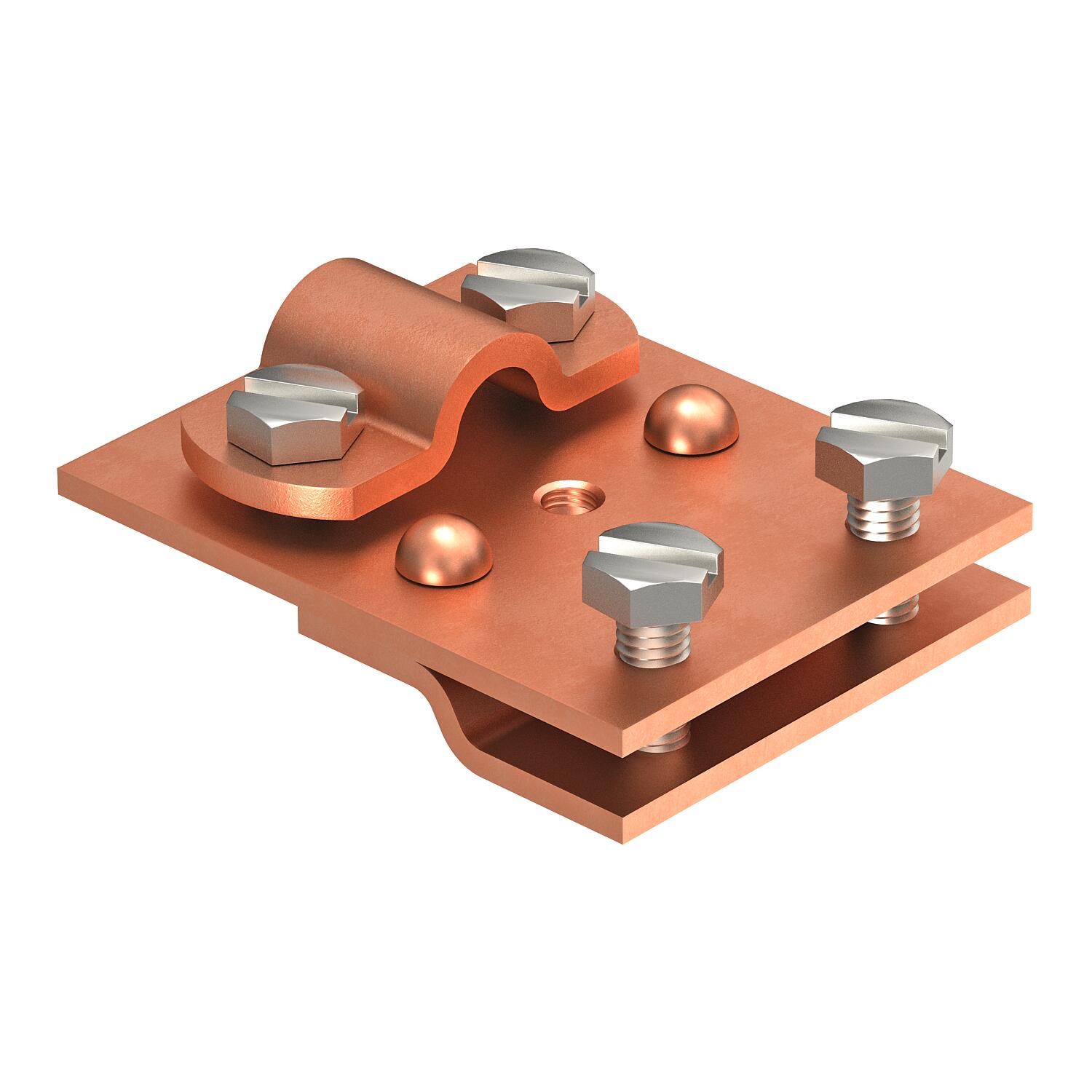

Folding clamp up to 5 mm plate thickness Cu
Item no. 5317452 | EAN 4012195420910
- Product description
-
Product description• Plate thickness to 5 mm

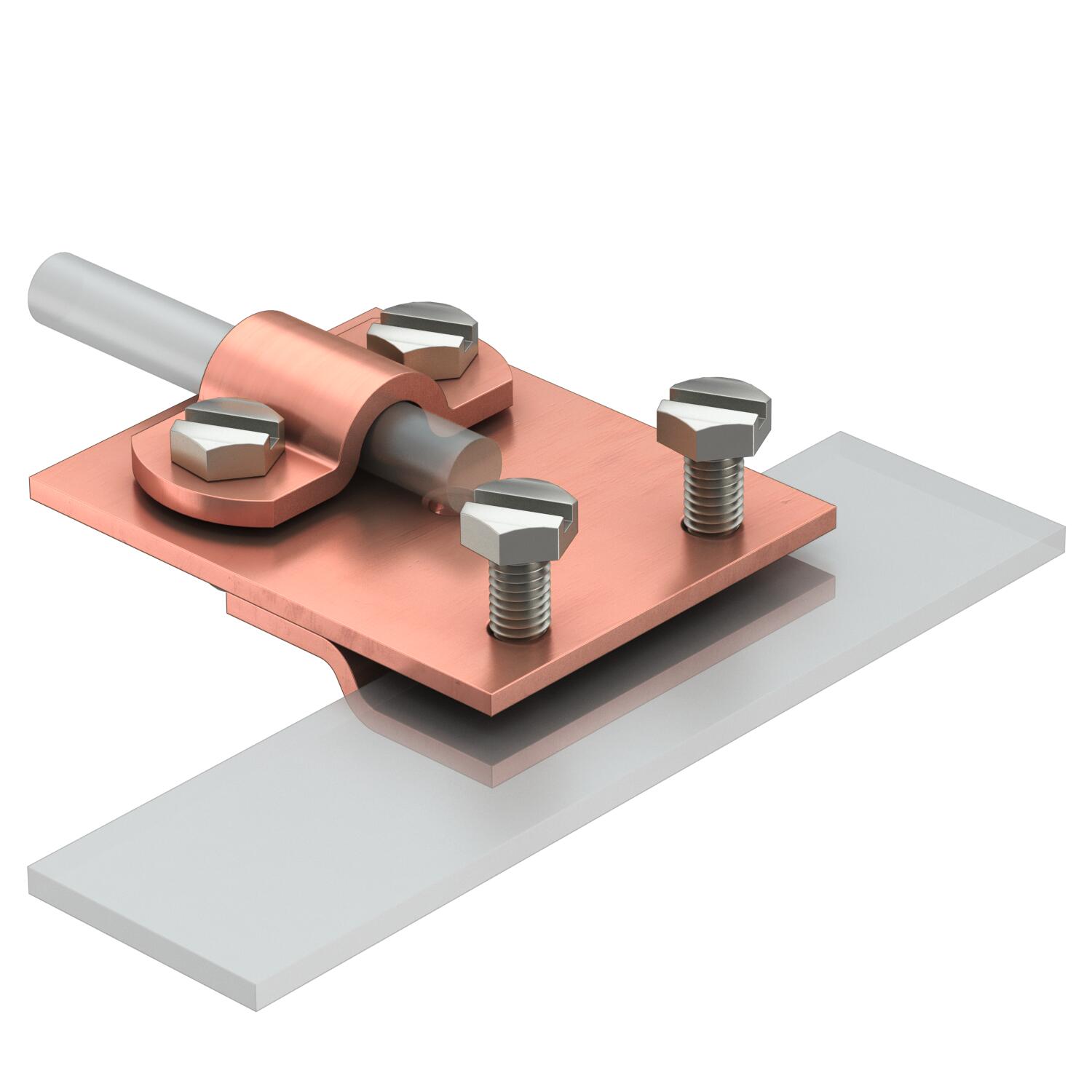

• For conductor routing transverse and longitudinal to plate
• With 4 hexagonal bolts M6 x 12
• Conforms to the requirements according to DIN VDE 0185-305 (IEC 62305)
• 271 Cu: with hexagonal bolts stainless steel (VA)
-
- Technical data
-
Technical data
Clamping range, max. 5 mm Dimension 8/10mm Fit Rd 8-10 mm Lightning current carrying capacity N/50 kA Material Copper Type of connector Folding clamp Type of fastening screw Hexagonal bolt Dimensions

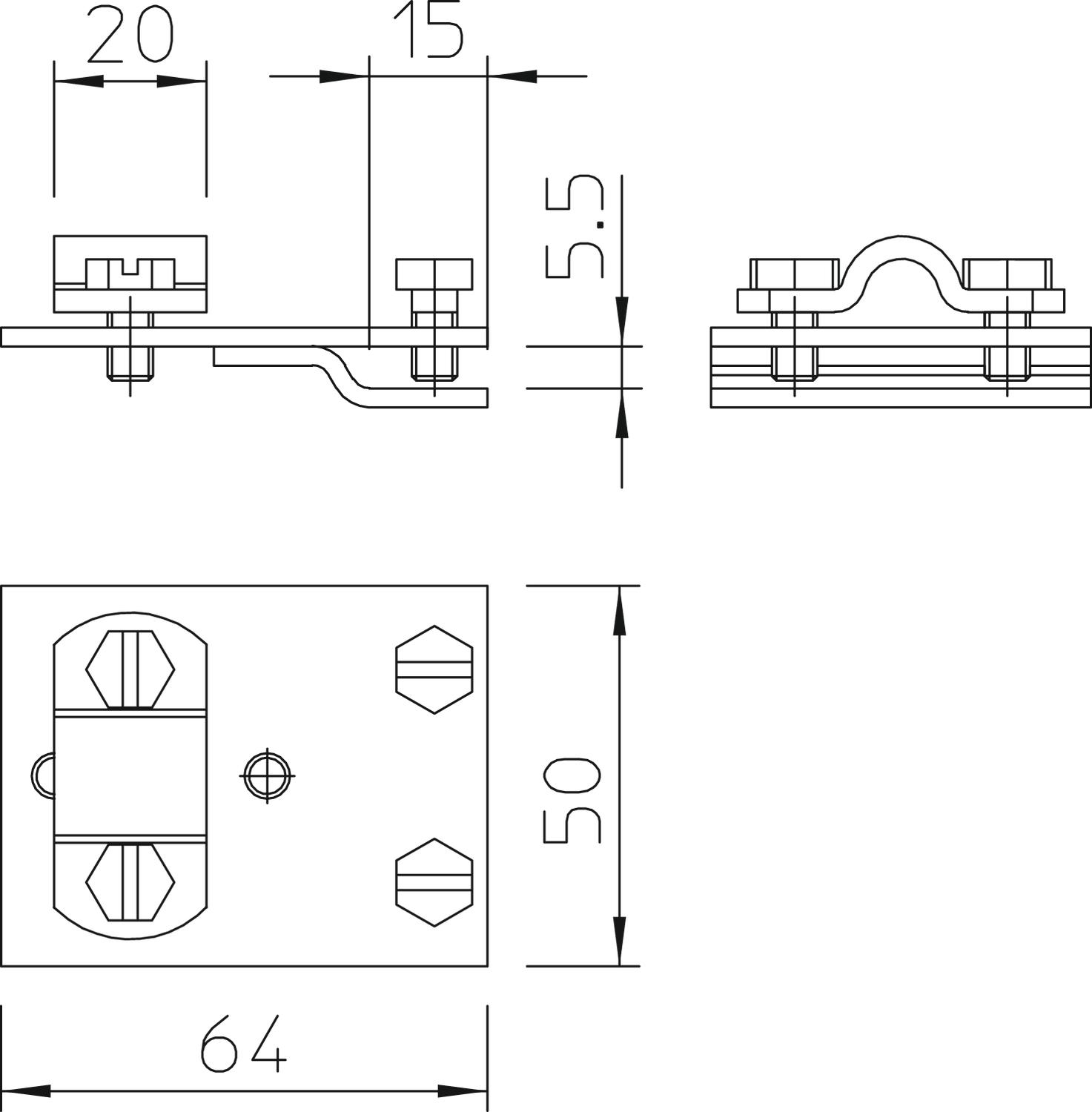

Length 64 mm Width 50 mm - All types
