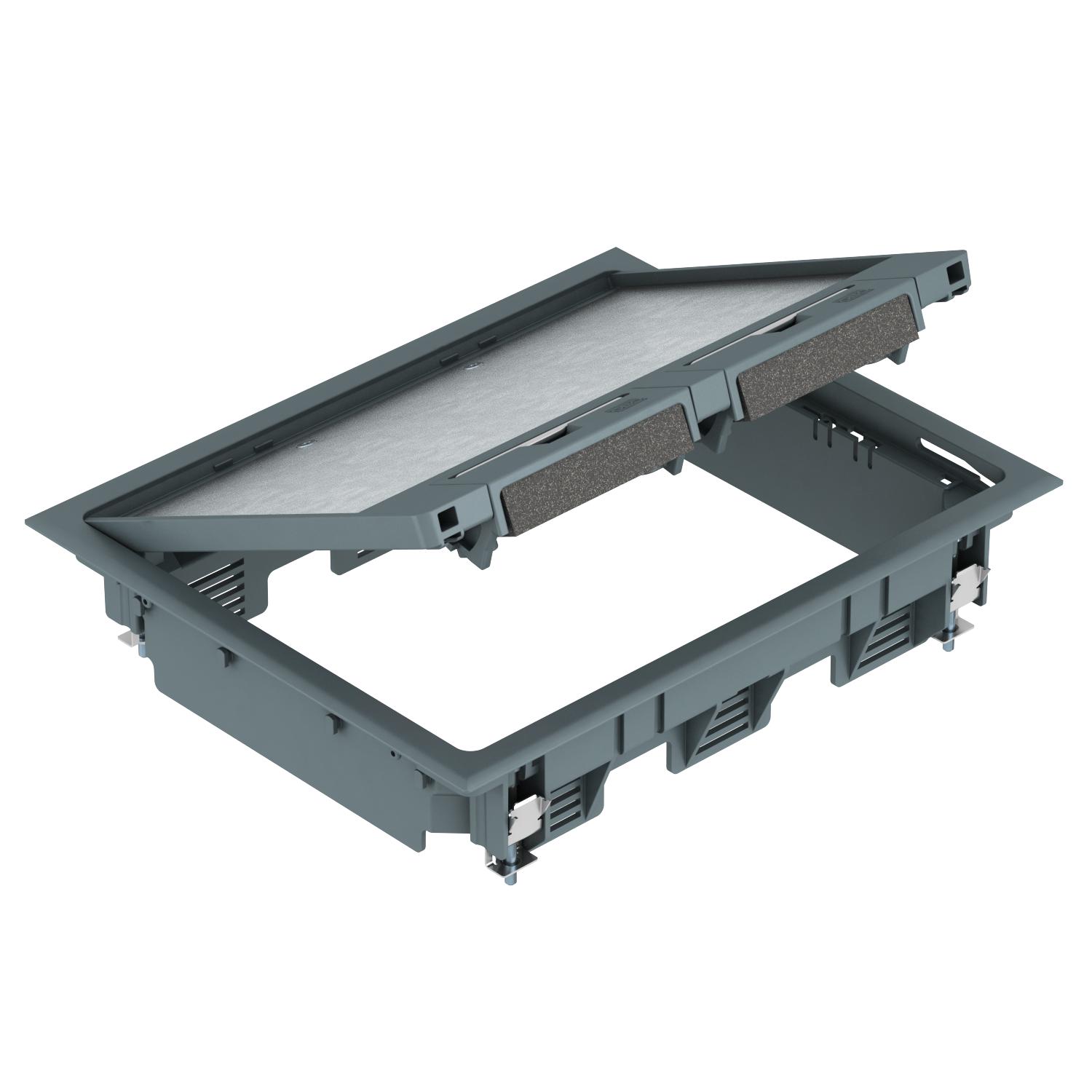

GES6 service outlet with handle clamp
Item no. 7405308 | EAN 4012195103080
- Product description
-
Product descriptionService outlet with handle clamp for up to 9 individual Modul 45 devices in three UT3 universal supports, use in trunking systems and system floors for indoor use.
Service outlet with handle clamp, 3-compartment, for the installation of MT6 mounting support. Three type APMT2 cover plates can be installed.
Separate fastening brackets must be ordered for raised floor mounting.
Up to 6 installation devices with 50 mm central plate can be inserted.
-
- Technical data
-
Technical data

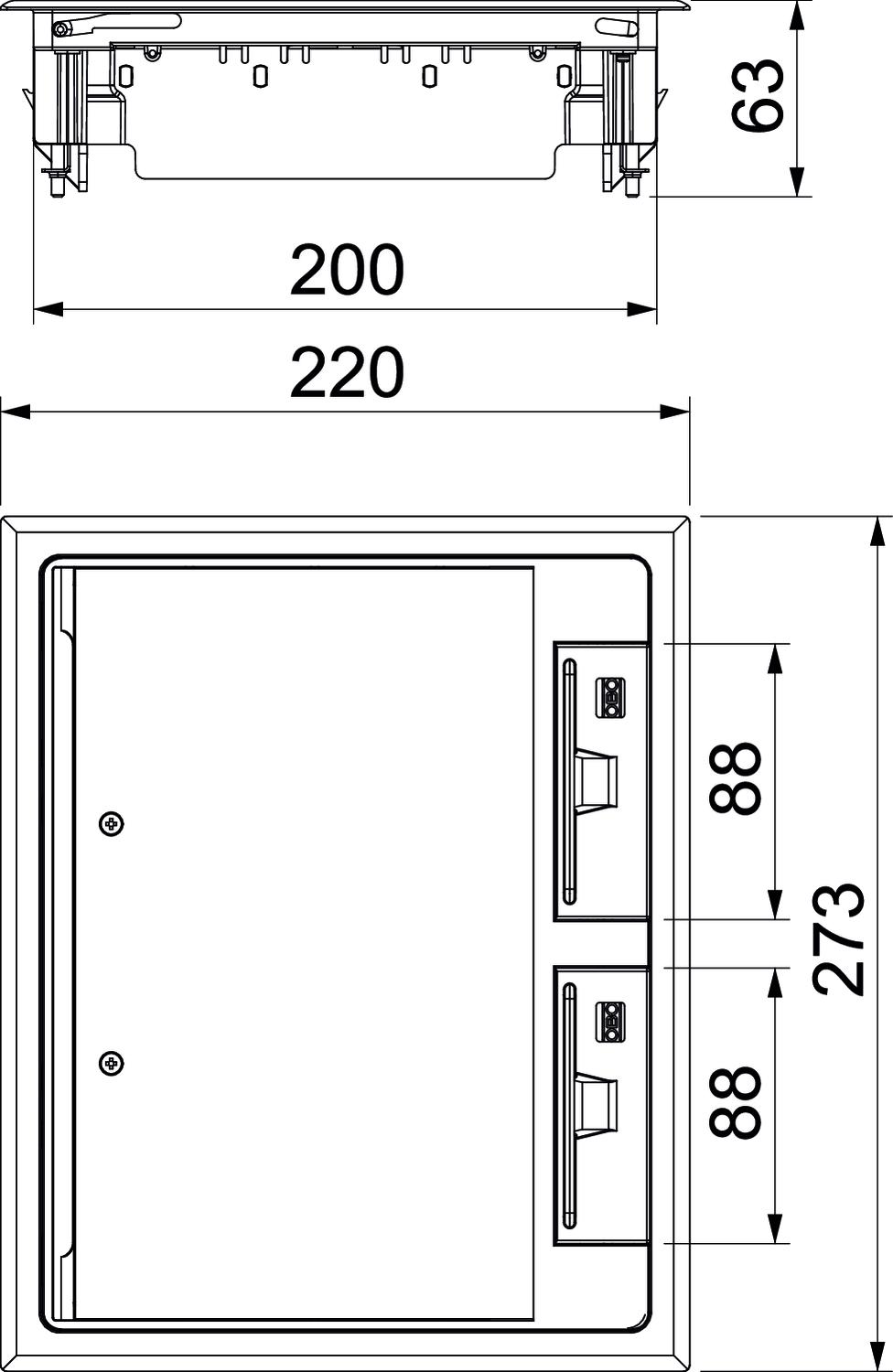

Approvals VDE Cable outlet version Swivellable cord outlet Clamping range D, max. 31 mm Clamping range D, min. 9 mm Colour Iron grey; RAL 7011 Cover version Rectangular Device support to accept mounting boxes yes Dimension 273x220x61 Floor care Dry Floor covering protection frame yes Floor covering thickness 5 mm Floor height, min. 73 mm Frame version Carpet protection frame Heavy-duty version no Installation depth 73 mm Installation system type MT3 / GB2 Length of external dimensions 220 mm Length of installation dimensions 199 mm Material Polyamide Nominal size for device installation units 6 Number of installable devices 9 Number of mounting boxes 3 Opening mechanism Handle Protection rating (IP) when unused IP40 Protection rating (IP) when used IP20 Protection rating IK code IK08 ROHS-conformant Exempt Seal installation option no Suitable for cavity floor installation yes Suitable for raised floor installation yes Suitable for screed-covered underfloor ducts yes Suitable for screed-flush closed underfloor ducts no Suitable for underfloor ducts yes Suitable for wet care no Vertical load, large area to 3,000 N Vertical load, small area to 2,500 N Wide external dimensions 273 mm Wide installation dimensions 252 mm With floor covering recess yes Dimensions
Dimension h 73 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 1,7847 kg CO2e / 1 Piece CO₂ Footprint (GWP) 1,7847 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
-
System accessories
Products Types Item no. Quantity SSU
Ladder extensions
GES RV 7407536 2 piece
Mounting support for data technology connection sockets, system length 165 mm
MTU 2 7407836 1 piece
UT3 universal support, with cover plate for Modul 45® devices, system length 165 mm
UT3 45 3 7408723 1 piece - Downloads
-
Data sheet GES6 U 7011 / 7405308 , 0.24MB , pdfEU declaration of conformity GES6 U 7011 / 7405308 , 0.10MB , pdfREACH Declaration of conformity GES6 U 7011 / 7405308 , 0.13MB , pdfRoHS Declaration of conformity GES6 U 7011 / 7405308 , 0.13MB , pdfLabel approval VDE symbol approval, GES , 0.12MB , pdfNo invitation to tender text is available for this product.
