- Product description
-

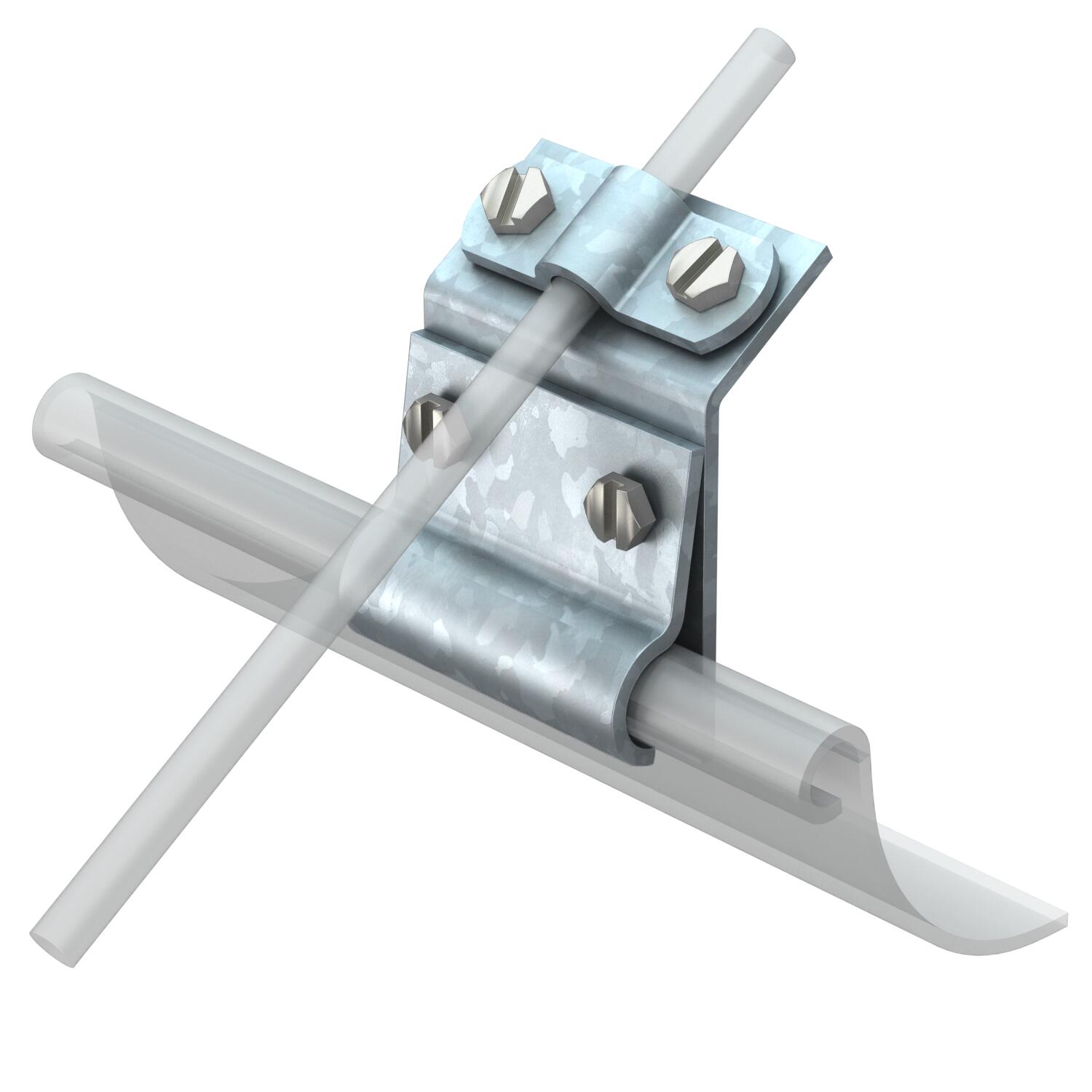

Product description• Suitable for bulge thickness 15−22 mm
• With 4 hexagonal bolts M6 x 16 (VA)
-
- Technical data
-
Technical data
Clamping range, max. 22 mm Clamping range, min. 15 mm Dimension 8mm Fit Rd 8-10 mm Material Steel ROHS-conformant yes Surface Hot-dip galvanised Type of connector Roof gutter clamp Type of fastening screw Hexagonal bolt Dimensions
Height 33,7 mm Length 72 mm Width 58 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 0,4495 kg CO2e / 1 Piece CO₂ Footprint (GWP) 0,4495 kg CO₂e Declared Unit Units Declared Unit Quantity 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
- Downloads
-
Data sheet 262 A-DIN FT / 5316219 , 0.17MB , pdfEU declaration of conformity 262 A-DIN FT / 5316219 , 0.06MB , pdfREACH Declaration of conformity 262 A-DIN FT / 5316219 , 0.27MB , pdfRoHS Declaration of conformity 262 A-DIN FT / 5316219 , 0.12MB , pdf
