Heavy-duty frame cassette, blank, RKSL, nominal size 350-3
Item no. 7405956 | EAN 4012195106067
- Product description
-
Product description"Blank" heavy-duty frame cassette for the creation of an inspection opening in the UZD350-3 in dry or wet-cleaned floors. Load class 2 to 20 kN. Only suitable for smooth floor coverings for indoor use.
Heavy-duty frame cassette, blank, for the creation of an inspection opening in the underfloor box UZD350-3 in dry- or wet-cleanded floors. Load class 2 to 20 kN. Suitable only for smooth floor coverings in indoor areas.
-
- Technical data
-
Technical data

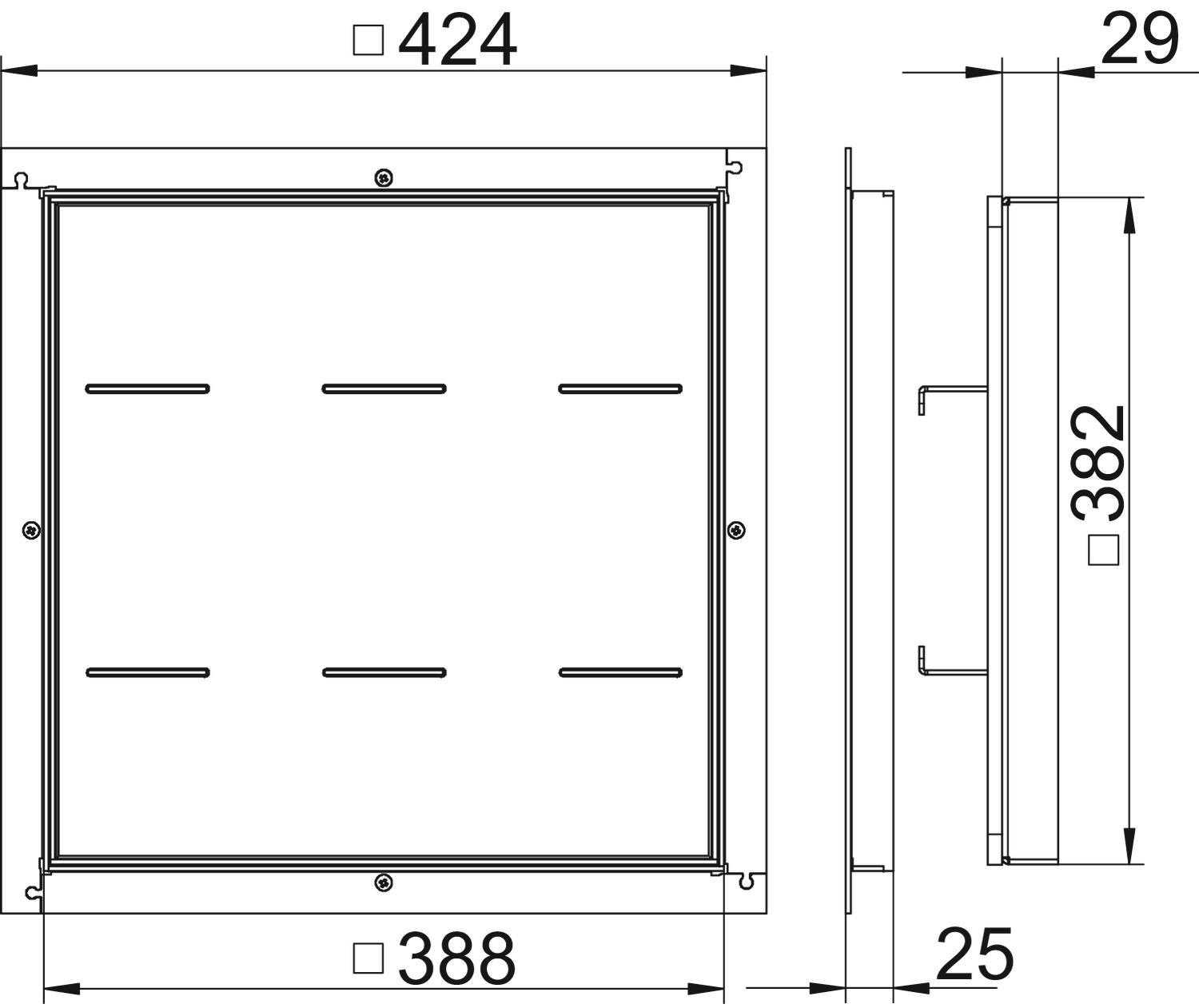

Cable outlet version No cable outlet Device support to accept mounting boxes no Dimension 383x383x25 Dimension A 424 mm Dimension B 388 mm Dimension C 382 mm Dimension h 25 mm Floor care Wet Floor covering thickness 19 mm Floor height, min. 95 mm Heavy load class 20 kN (OBO SL2) Heavy-duty version yes Length of installation dimensions 390 mm Material Stainless steel Protection rating (IP) when unused IP44 Protection rating (IP) when used IP00 Protection rating IK code IK10 Screed height, min. 70 mm Suitable for cavity floor installation yes Suitable for raised floor installation yes Wide installation dimensions 390 mm - All types
- Downloads
-
Data sheet RK SL2 V3 25 / 7405956 , 0.18MB , pdfSafety data sheet RK SL2 V3 25 / 7405956 , 0.05MB , pdfBrochure Heavy-duty systems , 2.10MB , pdfEU declaration of conformity RK SL2 V3 25 / 7405956 , 0.11MB , pdfREACH Declaration of conformity RK SL2 V3 25 / 7405956 , 0.12MB , pdfRoHS Declaration of conformity RK SL2 V3 25 / 7405956 , 0.12MB , pdfLabel approval Label approval Heavy-duty cassettes , 0.12MB , pdfSelection aid Selection aid, heavy-duty systems , 0.13MB , pdfMounting instructions Heavy-load system , 6.72MB , pdfMounting instructions Heavy-duty frame cassette , 7.89MB , pdfNo invitation to tender text is available for this product.
