Note: This article is discontinued.

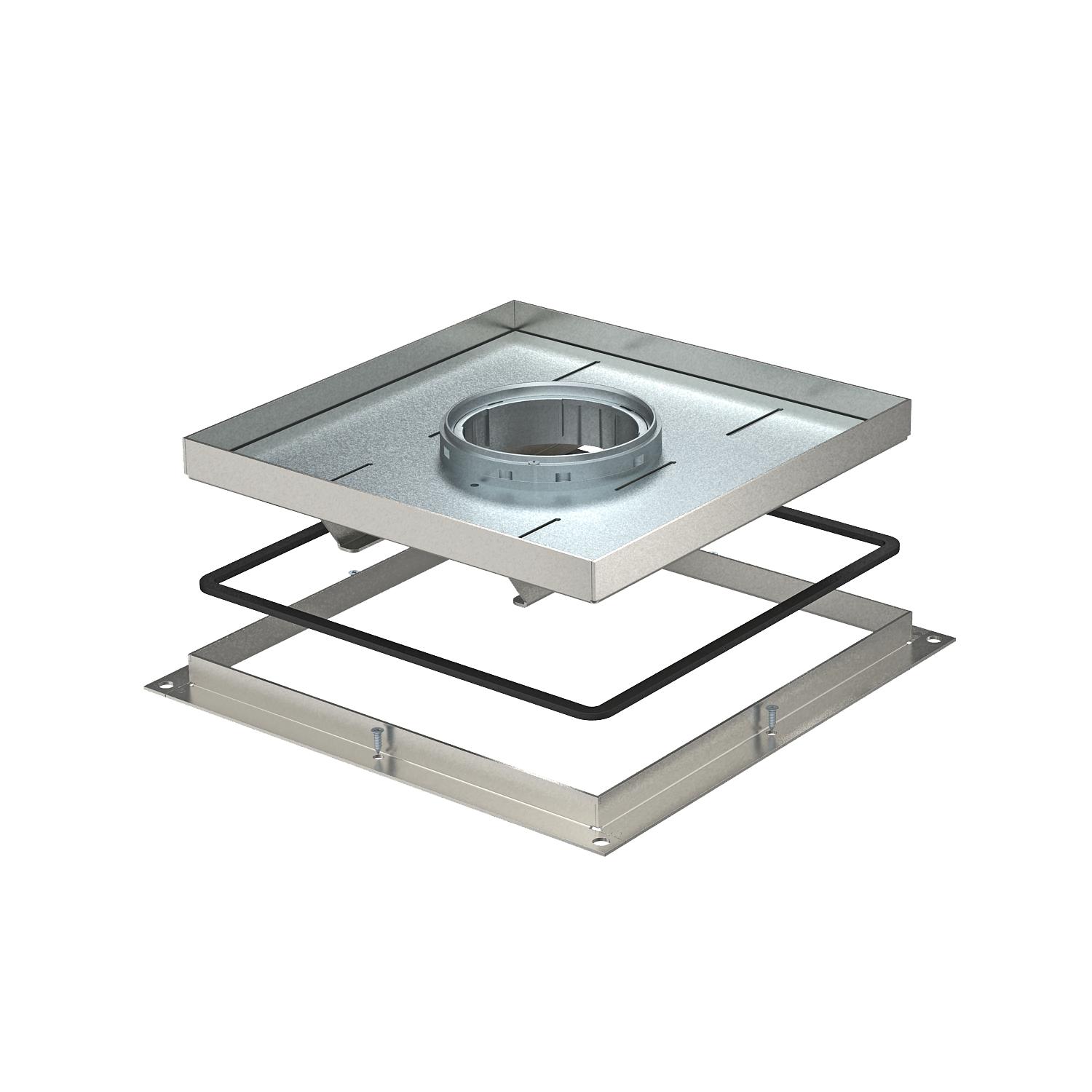

Heavy-duty frame cassette for tube body, RKFSL, nominal size 250-3
Item no. 7409486 | EAN 4012195869863
- Product description
-
Product descriptionHeavy-duty frame cassette for tube body for the installation of accessories in the UZD250-3in dry or wet-care floors in interior areas Load class 1 to 10 kN. The tube body is not contained in the scope of delivery.
-
- Technical data
-
Technical data

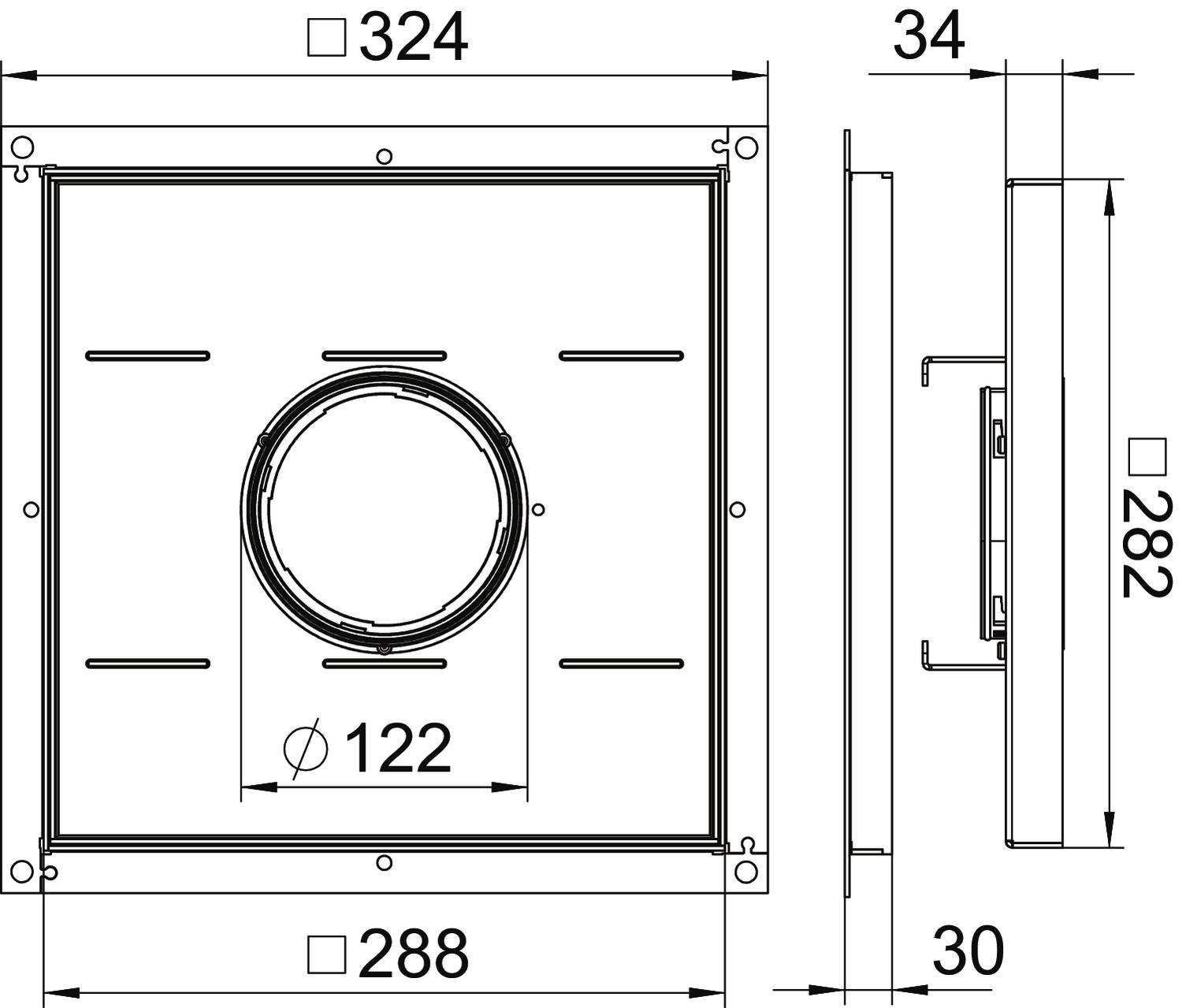

Cable outlet version Lowerable tube body Dimension 283x283x30 Dimension A 324 mm Dimension B 288 mm Dimension C 282 mm Dimension h 30 mm Floor covering thickness 28 mm Heavy load class 10 kN (OBO SL1) Heavy-duty version yes Length of installation dimensions 290 mm Material Stainless steel Suitable for cavity floor installation yes Suitable for raised floor installation yes Wide installation dimensions 290 mm - All types
