Note: This article is discontinued.
Heavy-duty frame cassette for tube body, RKFSL, nominal size 350-3
Item no. 7409504 | EAN 4012195869931
- Product description
-
Product descriptionHeavy-duty frame cassette for tube body for the installation of accessories in the UZD350-3in dry or wet-care floors in interior areas Load class 1 to 10 kN. The tube body is not contained in the scope of delivery.
-
- Technical data
-
Technical data

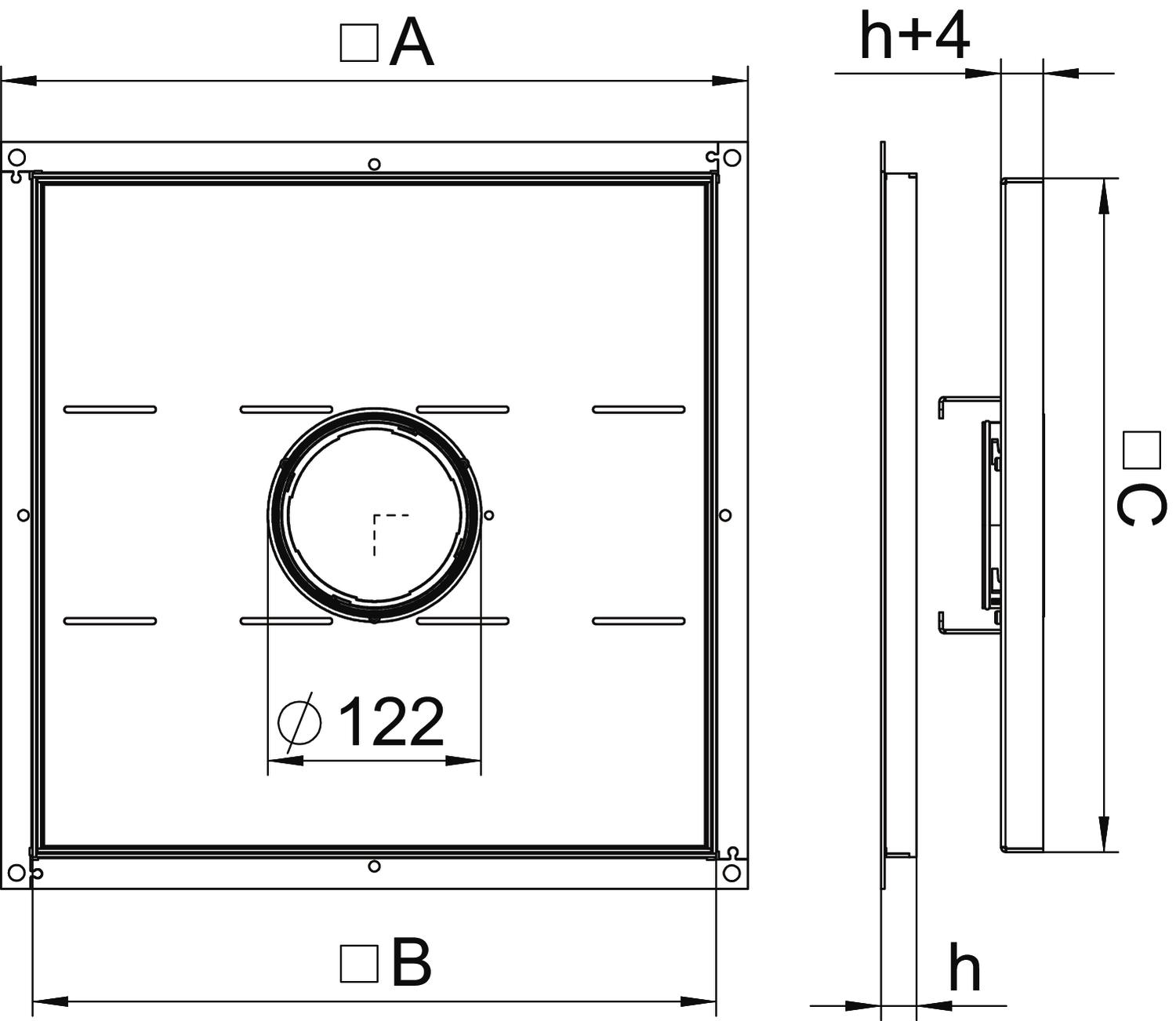

Cable outlet version Lowerable tube body Dimension 383x383x25 Dimension A 424 mm Dimension B 388 mm Dimension C 382 mm Dimension h 25 mm Floor covering thickness 23 mm Heavy load class 10 kN (OBO SL1) Heavy-duty version yes Material Stainless steel Suitable for cavity floor installation yes Suitable for raised floor installation yes - All types
- Downloads
-
Data sheet RKF2 SL1 V3 25 / 7409504 , 0.23MB , pdfSafety data sheet RKF2 SL1 V3 25 / 7409504 , 0.05MB , pdfBrochure Heavy-duty systems , 2.10MB , pdfLabel approval Label approval Heavy-duty cassettes , 0.12MB , pdfSelection aid Selection aid, heavy-duty systems , 0.13MB , pdfMounting instructions Heavy-load system , 6.72MB , pdfMounting instructions Heavy-duty frame cassette , 7.89MB , pdfNo invitation to tender text is available for this product.
