Heavy-duty frame cassette for tube body, RKFSL, nominal size 350-3
Item no. 7409546 | EAN 4012195870166
- Product description
-
Product descriptionHeavy-duty frame cassette for tube body for the installation of accessories in the UZD350-3in dry or wet-care floors in interior areas Load class 2 to 20 kN. The tube body is not contained in the scope of delivery.
Frame cassette, heavy duty, for tube bodies, for the installation of accessories in the underfloor box UZD350-3 in dry- or wet-cleaned floors in indoor areas. Load class 2 to 20 kN. The tube body is not included in the scope of delivery.
Heavy-duty frame cassette, 4-compartment Up to 4 cover plates APMT5 can be installed.
-
- Technical data
-
Technical data
Cable outlet version Lowerable tube body Dimension 383x383x30 Floor care Wet Floor covering thickness 24 mm Heavy load class 20 kN (OBO SL2) Heavy-duty version yes Length of installation dimensions 390 mm Material Stainless steel 1.4301 Number of cable outlets 1 Product series RKF Protection rating (IP) when unused IP44 Protection rating (IP) when used IP20 Protection rating IK code IK10 ROHS-conformant yes Suitable for cavity floor installation yes Suitable for raised floor installation yes Wide installation dimensions 390 mm Dimensions

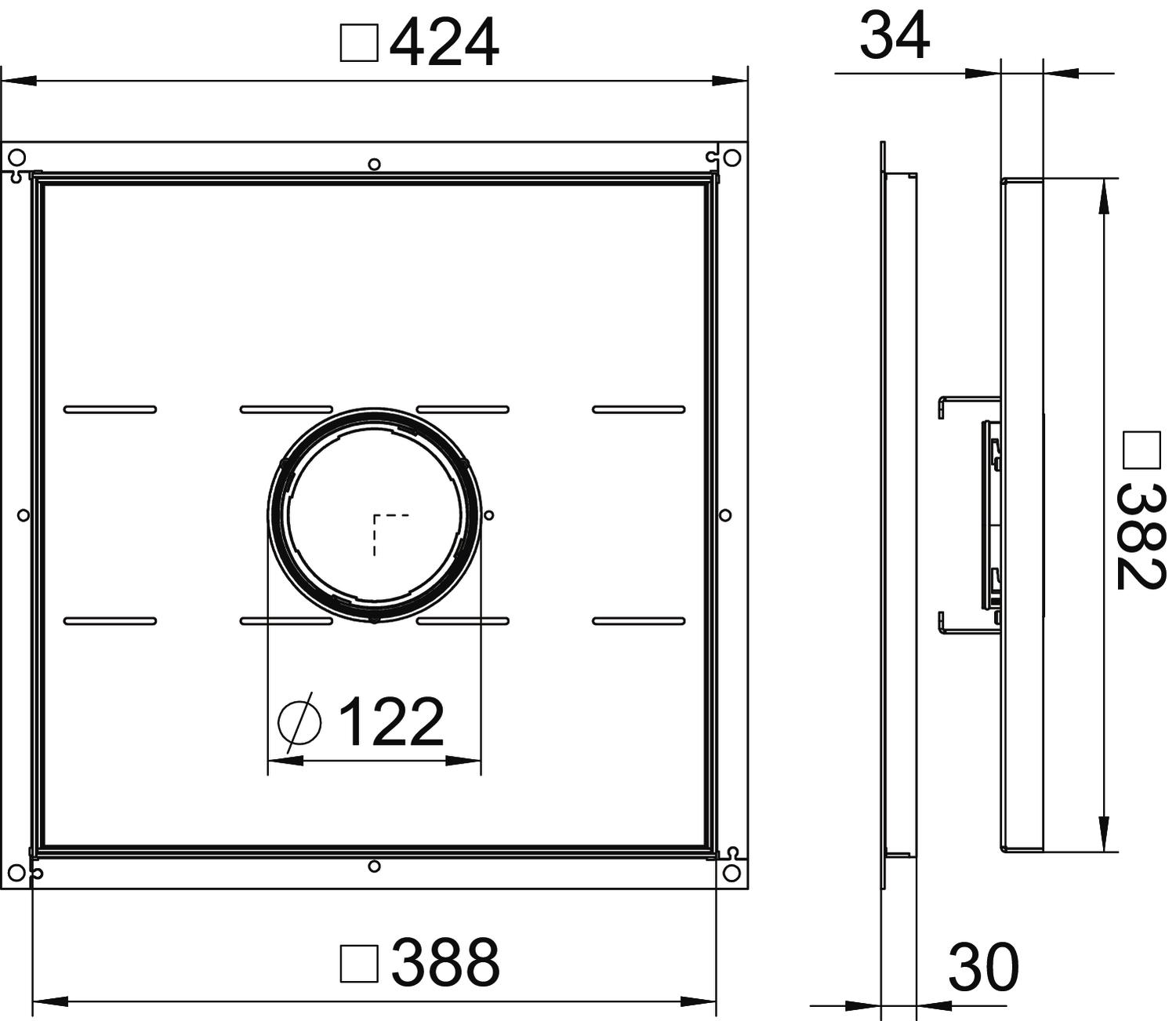

Dimension A 424 mm Dimension B 388 mm Dimension C 382 mm Dimension h 30 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 56,1821 kg CO2e / 1 Piece CO₂ Footprint (GWP) 56,1821 kg CO₂e Declared Unit Units Declared Unit Quantity 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
-
System accessories
Products Types Item no. Quantity SSU
Tube body with cover plate, with handle clamp, for frame cassette and height-adjustable cassette
TUK2 GV 7428140 1 piece
Tube body with cover plate, without handle clamp, for frame cassette and height-adjustable cassette
TUK2 V 7428141 1 piece
Tube body with floor covering recess, with handle clamp, for frame cassette and height-adjustable cassette
TUK2 G4 7428142 1 piece - Downloads
-
